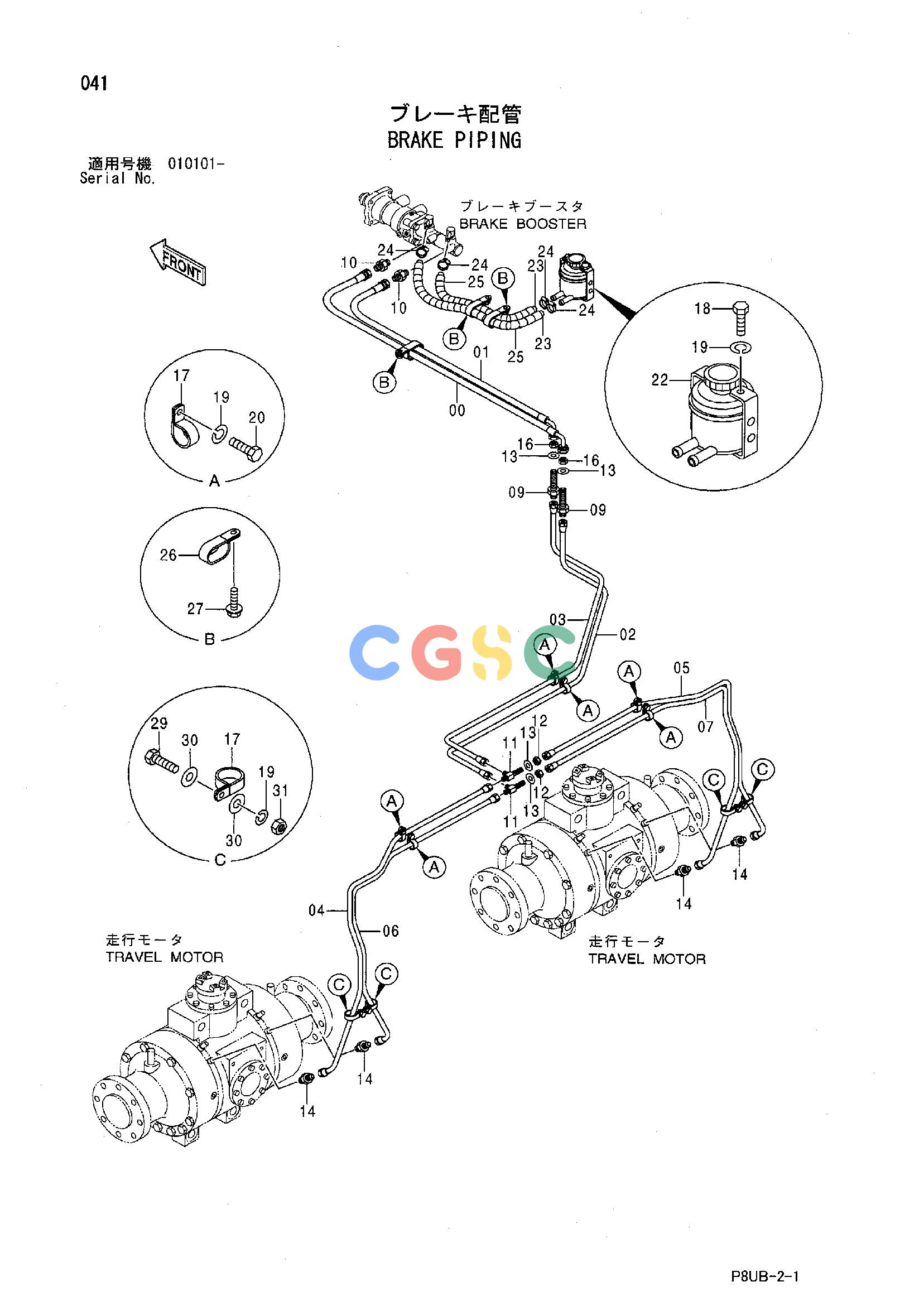

日立零件查询（CP210）BRAKE PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
155 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425476 | [1] | HOSE | |
| 01. | 426167 | [1] | HOSE | |
| 02. | 426257 | [1] | PIPE | |
| 03. | 426258 | [1] | PIPE | |
| 04. | 426234 | [1] | PIPE | |
| 05. | 426235 | [1] | PIPE | |
| 06. | 426236 | [1] | PIPE | |
| 07. | 426237 | [1] | PIPE | |
| 09. | 426282 | [2] | ADAPTER;S | |
| 10. | 424075 | [2] | ADAPTER;S | |
| 10A. | 438402 | [1] | O-RING | |
| 11. | 426156 | [2] | TEE;S | |
| 12. | 439204 | [2] | NUT | |
| 13. | 947325 | [4] | WASHER;PLANE | |
| 14. | 432891 | [4] | ADAPTER;S | |
| 16. | 424084 | [2] | NUT | |
| 17. | 430779 | [10] | CLIP;PIPE | |
| 18. | 500012 | [2] | BOLT | |
| 19. | 947886 | [12] | WASHER;SPRING | |
| 20. | 947609 | [6] | BOLT | |
| 22. | 424057 | [1] | TANK;OIL | |
| 23. | 426259 | [2] | HOSE | |
| 24. | 424172 | [4] | CLIP;HOSE | |
| 25. | 424651 | [2] | PROTECTOR | |
| 26. | 424069 | [3] | CLIP | |
| 27. | 500043 | [3] | BOLT;SEMS | |
| 29. | 947611 | [4] | BOLT | |
| 30. | 947322 | [8] | WASHER;PLANE | |
| 31. | 947853 | [4] | NUT | |
