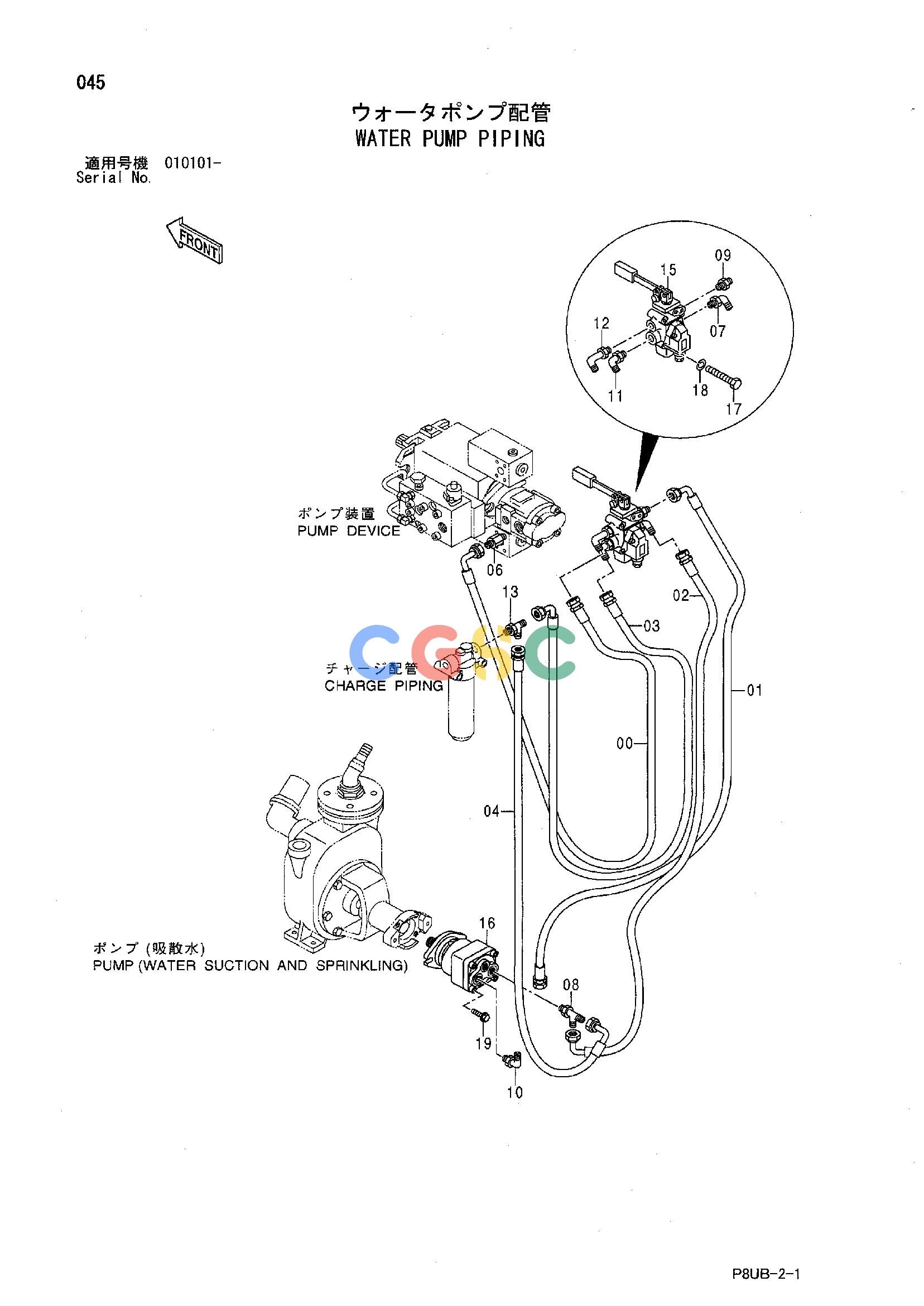

日立零件查询（CP210）WATER PUMP PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
666 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 482306 | [1] | HOSE | |
| 01. | 482528 | [1] | HOSE | |
| 02. | 426169 | [1] | HOSE | |
| 03. | 426170 | [1] | HOSE | |
| 04. | 426166 | [1] | HOSE | |
| 06. | 426160 | [1] | ADAPTER;S | |
| 06A. | 430623 | [1] | O-RING | |
| 07. | 425542 | [1] | ELBOW;S | |
| 07A. | 947519 | [1] | O-RING | |
| 08. | 424092 | [1] | TEE;S | |
| 08A. | 947519 | [1] | O-RING | |
| 09. | 424085 | [1] | ADAPTER;S | |
| 09A. | 430623 | [1] | O-RING | |
| 10. | 424091 | [1] | ELBOW;S | |
| 10A. | 947519 | [1] | O-RING | |
| 11. | 424687 | [1] | ELBOW;S | |
| 11A. | 430623 | [1] | O-RING | |
| 12. | 424049 | [1] | ELBOW;S | |
| 12A. | 430623 | [1] | O-RING | |
| 13. | 424090 | [1] | TEE;S | |
| 13A. | 430623 | [1] | O-RING | |
| 15. | 424272 | [1] | VALVE;CONTROL | |
| 16. | 426273 | [1] | MOTOR;OIL | |
| 17. | 439869 | [4] | BOLT | |
| 18. | 947886 | [4] | WASHER;SPRING | |
| 19. | 500030 | [2] | BOLT;SEMS | |
