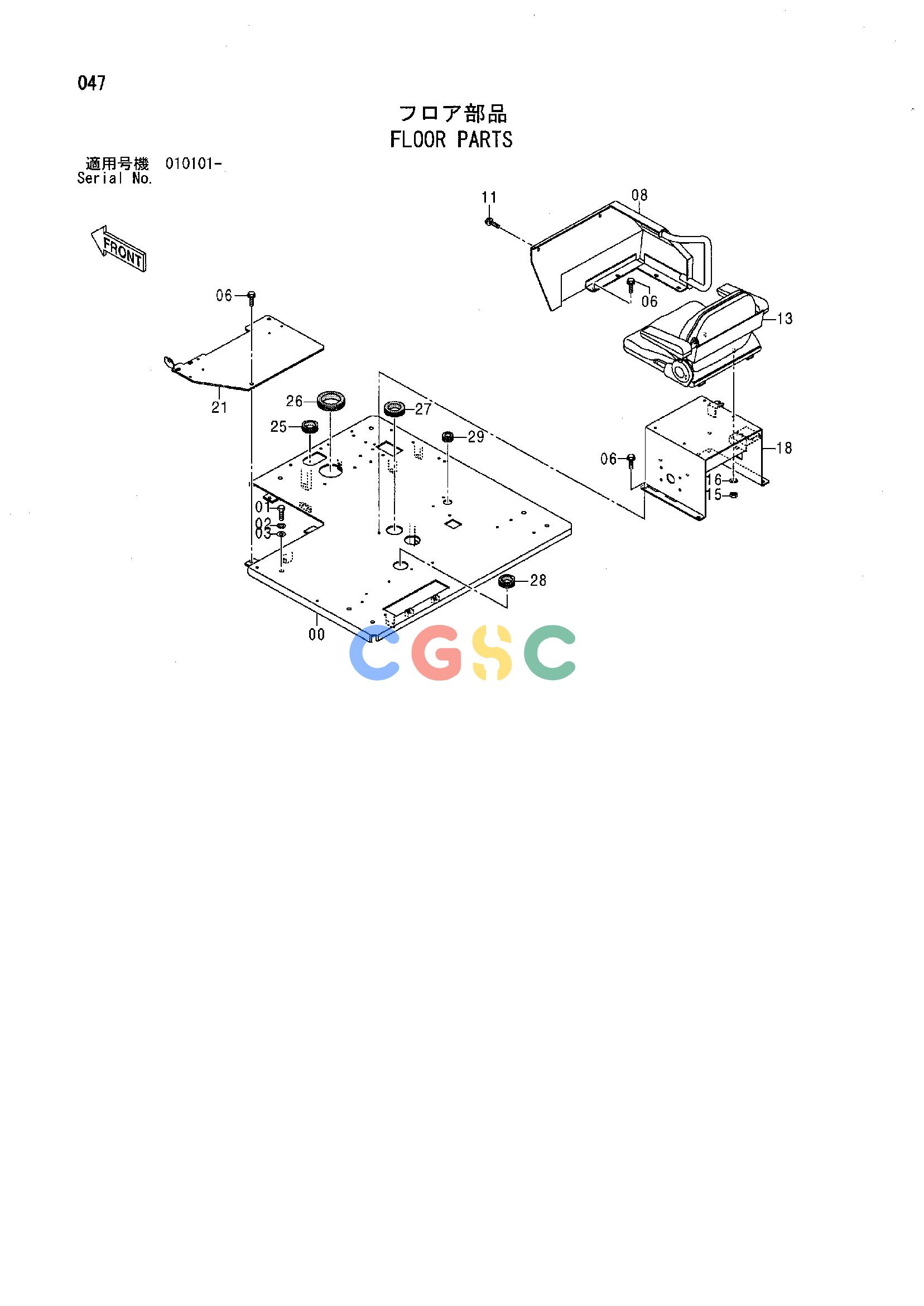

日立零件查询（CP210）FLOOR PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
149 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426297 | [1] | FLOOR | |
| 01. | 947662 | [7] | BOLT | |
| 02. | 947890 | [7] | WASHER;SPRING | |
| 03. | 424196 | [7] | WASHER | |
| 06. | 500028 | [12] | BOLT;SEMS | |
| 08. | 426298 | [1] | COVER;FRONT | |
| 11. | 947619 | [2] | BOLT;SEMS | |
| 13. | 425171 | [1] | SEAT | |
| 15. | 947854 | [4] | NUT | |
| 16. | 606020 | [4] | WASHER;SPRING | |
| 18. | 426304 | [1] | STAND | |
| 21. | 426315 | [1] | COVER | |
| 25. | 424677 | [1] | BUSHING;RUBBER | |
| 26. | 424717 | [1] | BUSHING;RUBBER | |
| 27. | 426154 | [2] | BUSHING;RUBBER | |
| 28. | 426141 | [1] | BUSHING;RUBBER | |
| 29. | 426162 | [1] | BUSHING;RUBBER | |
