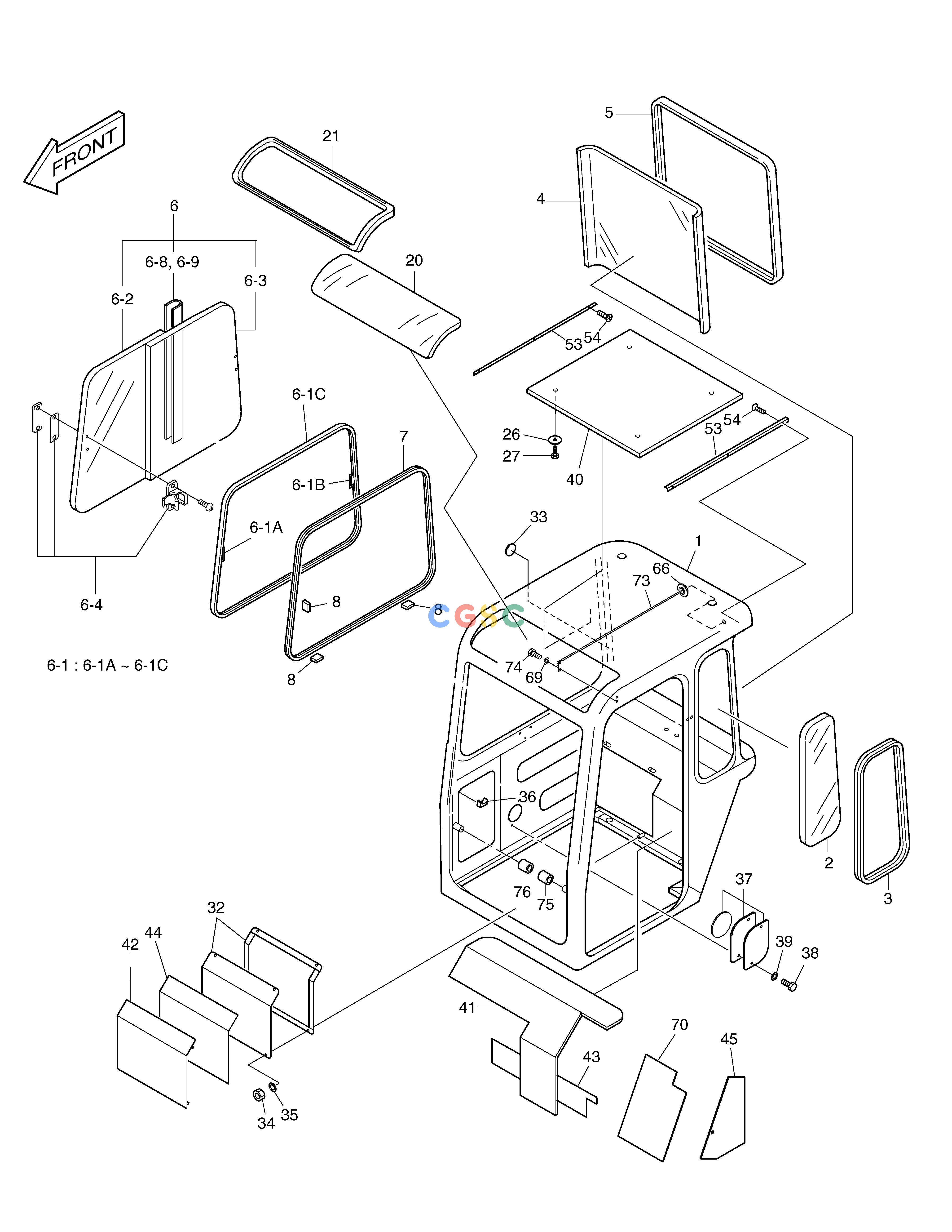

斗山零件查询CABIN(1) - TOPS SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
145 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
622-00322
|
[1] |
CABIN ASS'Y(TOPS)
|
622-00322B
|
| -. |
622-00322B
|
[1] |
CABIN ASS'Y(TOPS)
|
|
| 1. |
NA00086
|
[1] |
BODY;CABIN
|
|
| 2. |
2903-1222
|
[1] |
GLASS
|
|
| 20. |
903-00045
|
[1] |
PLATE;ROOF
|
|
| 21. |
2198-1013
|
[1] |
RUBBER;H
|
|
| 26. |
2114-1860
|
[4] |
WASHER;CLIP
|
|
| 27. |
S3452833
|
[4] |
. SCREW M5X0.8X12
|
|
| 3. |
2198-1013
|
[1] |
RUBBER;H
|
|
| 32. |
2159-1169A
|
[1] |
PLATE;ROOF
|
|
| 33. |
2160-1320
|
[1] |
GROMMET
|
|
| 34. |
S4012533
|
[4] |
NUT
|
|
| 35. |
S5102503
|
[4] |
. WASHER
|
|
| 36. |
2160-2180
|
[2] |
STOPPER
|
|
| 37. |
2621-3688A
|
[1] |
COVER
|
|
| 38. |
S0504453
|
[2] |
BOLT
|
|
| 39. |
S5102303
|
[2] |
. WASHER
|
|
| 4. |
2903-1204
|
[1] |
GLASS
|
|
| 40. |
2621-3689
|
[1] |
BOARD
|
|
| 41. |
2160-1294
|
[1] |
BOARD
|
|
| 42. |
2160-1295
|
[1] |
BOARD
|
|
| 43. |
2161-2181
|
[1] |
RUBBER
|
|
| 44. |
2161-2182
|
[1] |
RUBBER
|
|
| 45. |
2160-1296
|
[1] |
BOARD;SIDE
|
|
| 5. |
2198-1013
|
[1] |
RUBBER;H
|
|
| 53. |
2621-3690A
|
[2] |
PLATE
|
|
| 54. |
2122-1002D3
|
[6] |
RIVET
|
|
| 6. |
2622-1240B
|
[1] |
SASH ASS'Y
|
|
| 6-1. |
2622-9031
|
[1] |
SASH
|
|
| 6-1A. |
2627-6009
|
[1] |
STOPPER
|
|
| 6-1B. |
2627-6010
|
[1] |
STOPPER
|
|
| 6-1C. |
2161-6064
|
[1] |
CHANNEL;RUN
|
|
| 6-2. |
2903-1206B
|
[1] |
GLASS
|
|
| 6-3. |
2903-1207B
|
[1] |
GLASS
|
|
| 6-4. |
2123-6120
|
[1] |
LOCK
|
|
| 6-8. |
2622-1265
|
[1] |
BAR
|
|
| 6-9. |
2161-1041
|
[1] |
STRIP
|
|
| 66. |
2160-1004D9
|
[1] |
GROMMET
|
|
| 69. |
S5100203
|
[8] |
WASHER
|
|
| 7. |
2161-1744
|
[1] |
RUBBER
|
|
| 70. |
2161-2183
|
[1] |
RUBBER
|
|
| 73. |
2731-1021
|
[1] |
BAR
|
|
| 74. |
S3450823
|
[2] |
SCREW
|
|
| 75. |
2161-2184
|
[1] |
STOPPER
|
|
| 76. |
2161-2185
|
[1] |
STOPPER
|
|
| 8. |
2114-1838
|
[7] |
SPACER
|
|
