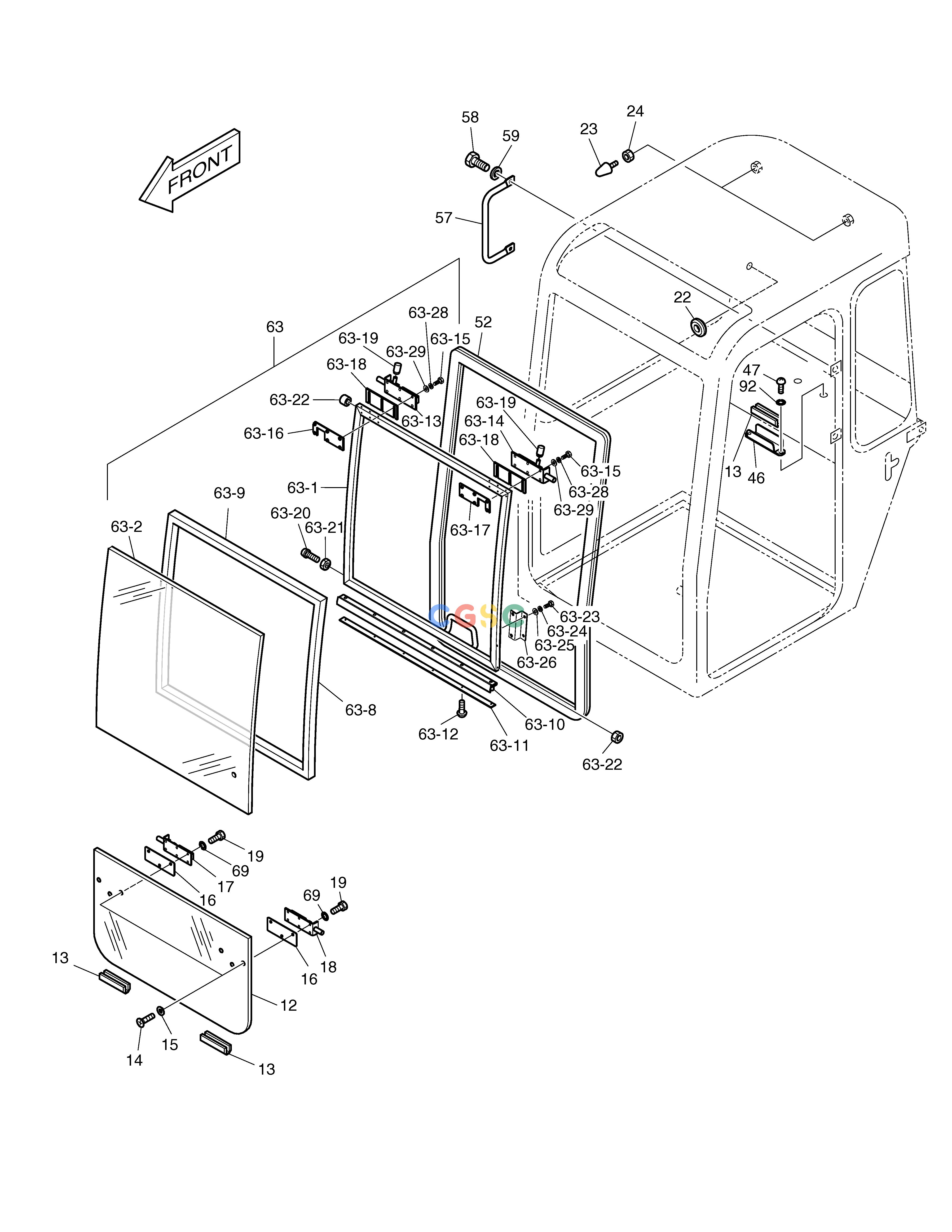

斗山零件查询CABIN(2) SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
852 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220101-00076
|
[1] |
|
|
| -. |
622-00311A
|
[1] |
CABIN ASS'Y
|
622-00311C
|
| -. |
622-00311C
|
[1] |
CABIN ASS'Y
|
220101-00076
|
| 12. |
2903-1201
|
[1] |
GLASS
|
|
| 13. |
2161-2178
|
[2] |
STOPPER
|
|
| 14. |
2229-1047
|
[6] |
RETAINER
|
|
| 15. |
2180-1260
|
[6] |
PACKING
|
|
| 16. |
2180-1261
|
[2] |
SEAL
|
|
| 17. |
2125-9050
|
[1] |
LATCH(R.H)
|
|
| 18. |
2125-9051
|
[1] |
LATCH(L.H)
|
|
| 19. |
S3450823
|
[6] |
SCREW
|
|
| 22. |
2160-1293
|
[2] |
GROMMET
|
|
| 23. |
2161-2179
|
[2] |
STOPPER
|
|
| 24. |
S4012733
|
[2] |
NUT
|
|
| 46. |
2891-1232A
|
[1] |
PLATE
|
|
| 47. |
S3450553
|
[2] |
SCREW M4X0.7X6
|
|
| 52. |
2198-1061
|
[1] |
RUBBER;TRIM
|
|
| 57. |
2172-1130A
|
[1] |
HANDLE
|
|
| 58. |
S0511653
|
[2] |
BOLT
|
|
| 59. |
S5102603
|
[2] |
. WASHER
|
|
| 63. |
2622-1424E
|
[1] |
DOOR ASS'Y(FRONT)
|
2622-1424H
|
| 63. |
2622-1424H
|
[1] |
DOOR ASS'Y(FRONT)
|
|
| 63-1. |
2622-1419
|
[1] |
DOOR (FRONT)
|
|
| 63-10. |
2161-2187
|
[1] |
SEAL
|
|
| 63-11. |
2621-3694
|
[1] |
PLATE
|
|
| 63-12. |
S3450563
|
[6] |
SCREW M4X0.7X8
|
|
| 63-13. |
2125-9050
|
[1] |
LATCH(R.H)
|
|
| 63-14. |
2125-9051
|
[1] |
LATCH(L.H)
|
|
| 63-15. |
S2204663
|
[12] |
BOLT M6X1.0X16
|
|
| 63-16. |
2891-1247
|
[1] |
PLATE(R.H)
|
|
| 63-17. |
2891-1236
|
[1] |
PLATE(L.H)
|
|
| 63-18. |
2114-1842
|
[2] |
SHIM
|
|
| 63-19. |
2160-1307
|
[2] |
CAP;RUBBER
|
|
| 63-2. |
2903-1200B
|
[1] |
GLASS
|
|
| 63-20. |
2161-2188
|
[1] |
STOPPER
|
|
| 63-21. |
S4012633
|
[1] |
NUT
|
|
| 63-22. |
2154-1031A
|
[4] |
ROLLER
|
|
| 63-23. |
S0504353
|
[2] |
BOLT M6X1.0X10
|
|
| 63-24. |
S5102303
|
[2] |
. WASHER
|
|
| 63-25. |
S5010303
|
[2] |
WASHER
|
|
| 63-26. |
2891-1354A
|
[1] |
PLATE
|
|
| 63-28. |
S5100203
|
[12] |
WASHER
|
|
| 63-29. |
S5000213
|
[12] |
. WASHER
|
|
| 63-8. |
2161-2254
|
[2] |
DAMPER
|
|
| 63-9. |
2161-2254
|
[2] |
DAMPER
|
|
| 69. |
S5100203
|
[8] |
WASHER
|
|
| 92. |
S5102101
|
[2] |
WASHER;SPRING M4
|
|
