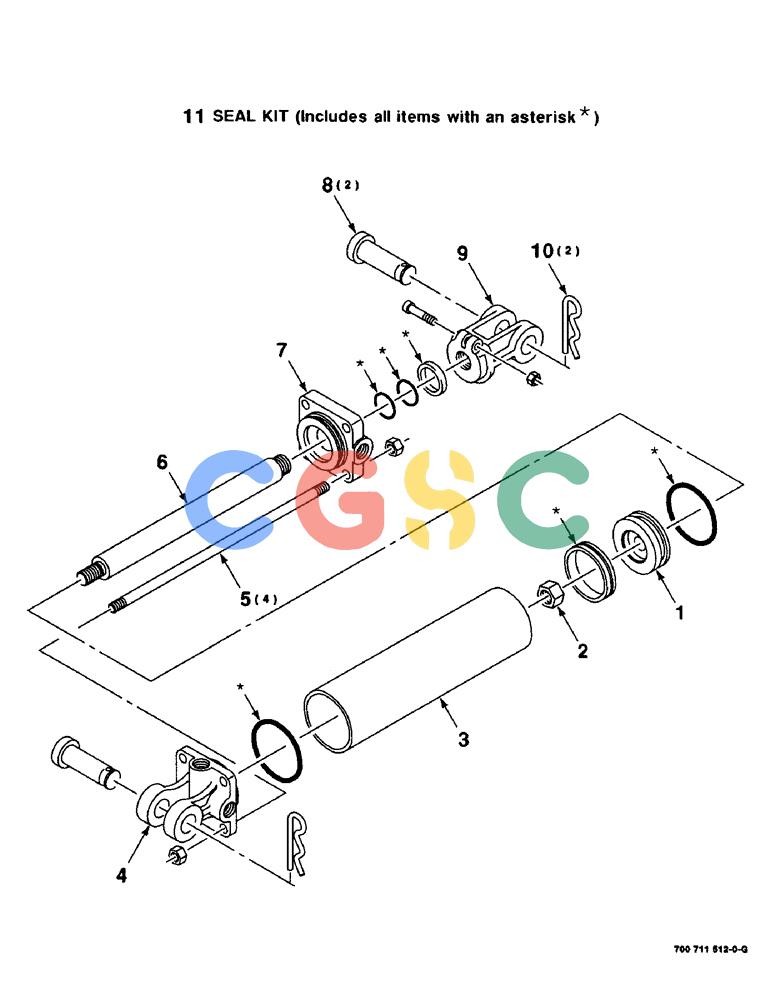

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (EUROPE) (1/95-12/00) (8-10) - HYDRAULIC CYLINDER ASSEMBLY, DENSITY CONTROL, 700711512 HYDRAULIC CYLINDER COMPLETE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
131 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700711512
|
[1] |
CYLINDER
|
CAS
HYDRAULIC CYLINDER COMPLETE (3 INCH BORE X 10 INCH STROKE)
|
| 1. |
700711516
|
[1] |
PISTON
|
CAS
|
| 2. |
131-909
|
[1] |
LOCK NUT,3/4"-16
|
CAS
NUT-PISTON
|
| 3. |
737635
|
[1] |
SLEEVE CYLINDER
|
CAS
TUBE
|
| 4. |
B17280
|
[1] |
BASE
|
CAS
-CLEVIS
|
| 5. |
7039589
|
[4] |
ROD
|
CAS
-TIE
|
| 6. |
700711517
|
[1] |
ROD
|
CAS
|
| 7. |
B17268
|
[1] |
HEAD
|
CAS
|
| 8. |
427-16350
|
[2] |
CLEVIS PIN,25.4mm OD x 88.9mm L
|
IH
PIN-CLEVIS
|
| 9. |
T55022
|
[1] |
CLEVIS
|
CAS
-ROD
|
| 10. |
S120261
|
[2] |
PIN
|
CAS
-CLIP
|
| 11. |
700711514
|
[1] |
SEAL
|
CAS
KIT
|
