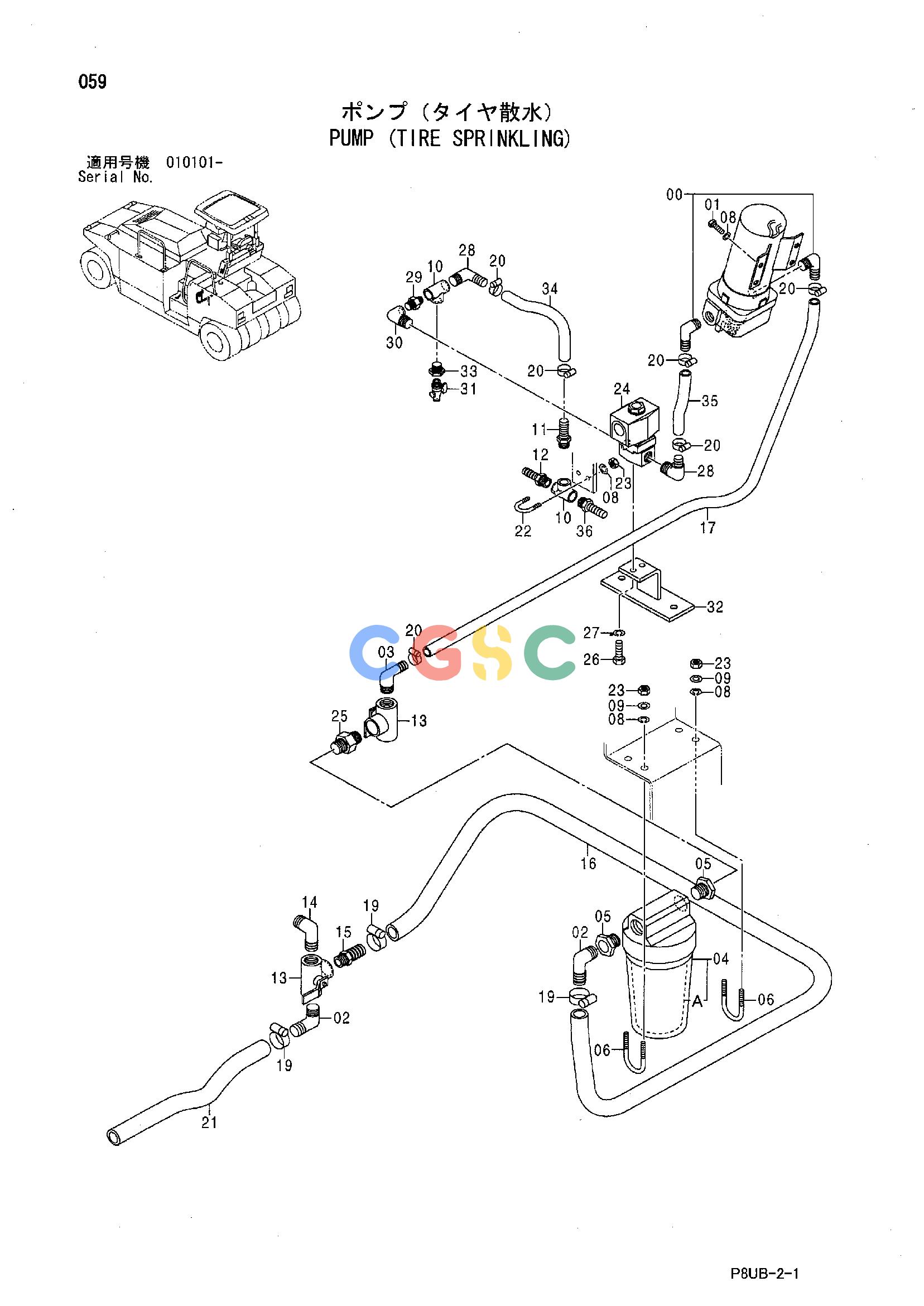

日立零件查询（CP210）PUMP (TIRE SPRINKLING) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
747 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425989 | [1] | PUMP;DIAPHRAGM | |
| 01. | 947609 | [4] | BOLT | |
| 02. | 424262 | [2] | FITTING;HOSE | |
| 03. | 438141 | [1] | FITTING;HOSE | |
| 04. | 424374 | [1] | FILTER ASS'Y | |
| 04A. | 439677 | [1] | ELEMENT;FILTER | |
| 05. | 947407 | [2] | REDUCER | |
| 06. | 431960 | [2] | BOLT;U | |
| 08. | 947886 | [10] | WASHER;SPRING | |
| 09. | 947322 | [4] | WASHER;PLANE | |
| 10. | 947446 | [2] | TEE | |
| 11. | 438550 | [1] | FITTING;HOSE | |
| 12. | 439334 | [1] | FITTING;HOSE | |
| 13. | 438471 | [2] | VALVE;BALL | |
| 14. | 947439 | [1] | ELBOW | |
| 15. | 441652 | [1] | FITTING;HOSE | |
| 16. | 947282 | [1] | HOSE;VINYL | |
| 17. | 244054 | [1] | HOSE;VINYL | |
| 19. | 424171 | [3] | CLAMP;HOSE | |
| 20. | 424172 | [6] | CLIP;HOSE | |
| 21. | 947282 | [1] | HOSE;VINYL | |
| 22. | 947595 | [1] | BOLT;U | |
| 23. | 947853 | [6] | NUT | |
| 24. | 442043 | [1] | VALVE;SOLENOID | |
| 25. | 947418 | [1] | ADAPTER | |
| 26. | 947605 | [2] | BOLT | |
| 27. | 947855 | [2] | WASHER;SPRING | |
| 28. | 438118 | [2] | FITTING;HOSE | |
| 29. | 947415 | [1] | ADAPTER | |
| 30. | 947438 | [1] | ELBOW | |
| 31. | 439403 | [1] | P-COCK | |
| 32. | 426358 | [1] | BRACKET | |
| 33. | 947404 | [1] | REDUCER | |
| 34. | 244054 | [1] | HOSE;VINYL | |
| 35. | 244054 | [1] | HOSE;VINYL | |
| 36. | 439415 | [1] | FITTING;HOSE | |
