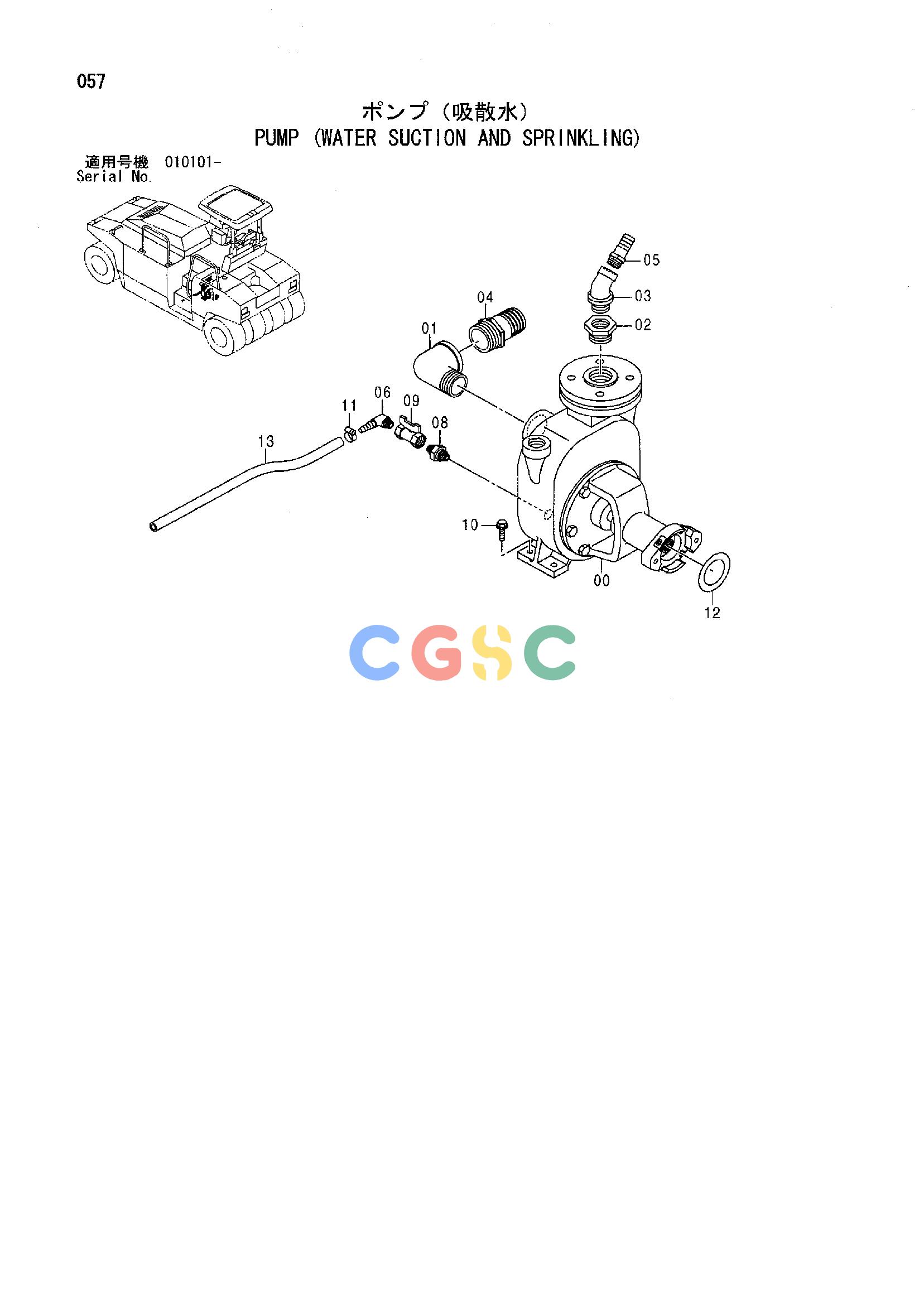

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 424274 | [1] | PUMP;SPRINKLER | |
| 01. | 439220 | [1] | ELBOW | |
| 02. | 947409 | [1] | REDUCER | |
| 03. | 424821 | [1] | ELBOW | |
| 04. | 947459 | [1] | FITTING;HOSE | |
| 05. | 947458 | [1] | FITTING;HOSE | |
| 06. | 439415 | [1] | FITTING;HOSE | |
| 08. | 947415 | [1] | ADAPTER | |
| 09. | 425622 | [1] | VALVE;BALL | |
| 10. | 500029 | [4] | BOLT;SEMS | |
| 11. | 424172 | [1] | CLIP;HOSE | |
| 12. | 424816 | [1] | SEAL;WATER | |
| 13. | 947279 | [1] | HOSE;VINYL |
