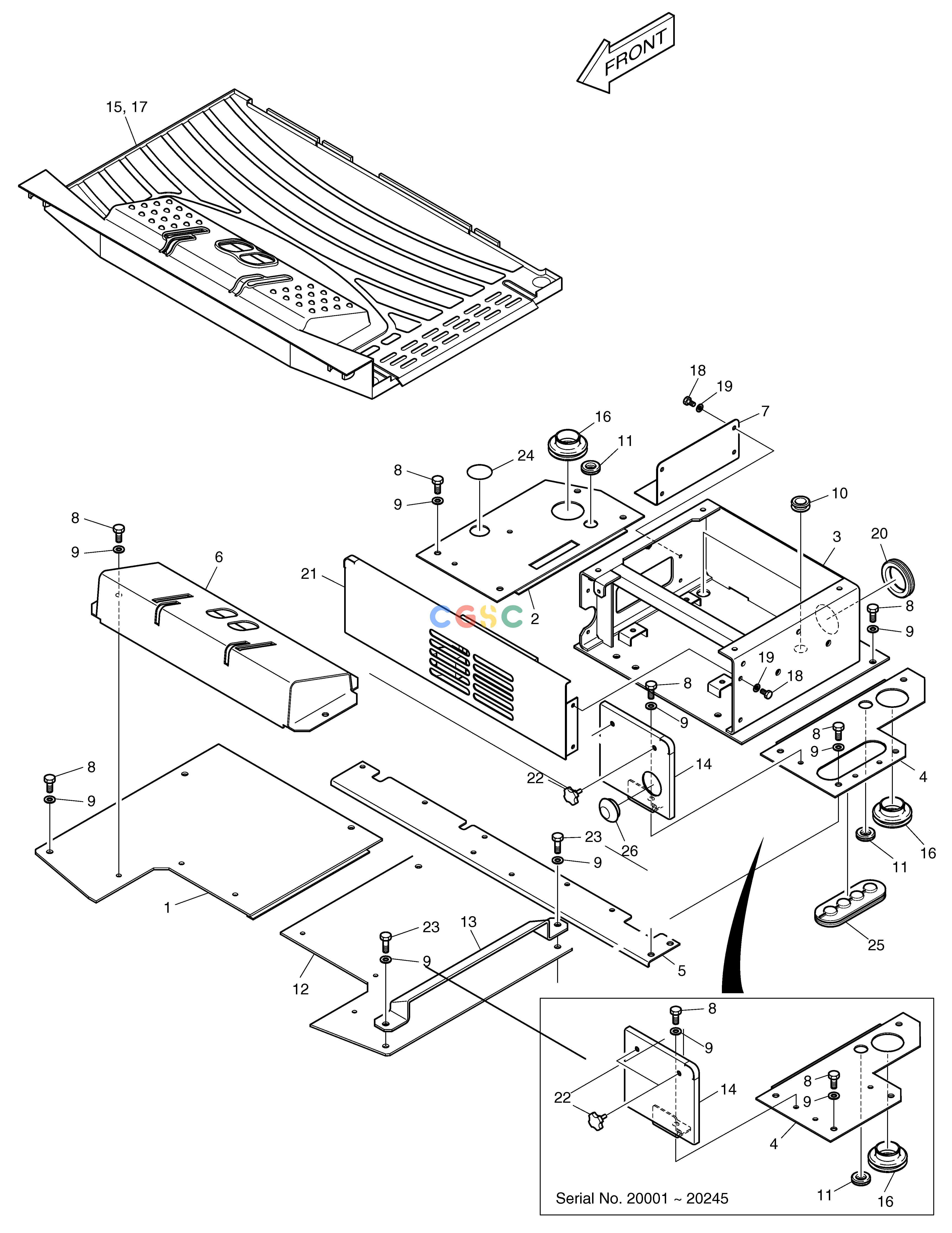

斗山零件查询FLOOR PLATE ASS'Y - CABIN SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
315 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
161-00533B
|
[-] |
FLOOR PLATE ASS'Y
|
|
| -. |
161-00533C
|
[-] |
FLOOR PLATE ASS'Y
|
|
| 1. |
161-00534A
|
[1] |
FLOOR PLATE;FRONT(RH)
|
|
| 10. |
2160-1004D45
|
[2] |
BUSHING;RUBBER
|
|
| 11. |
160-00059
|
[2] |
BUSHING;RUBBER
|
|
| 12. |
161-00547A
|
[1] |
FLOOR PLATE;FRONT(LH)
|
|
| 13. |
625-00144
|
[1] |
PLATE;STEP
|
|
| 14. |
621-02614A
|
[1] |
COVER;FRONT(LH)
|
|
| 14. |
621-02614B
|
[1] |
COVER;FRONT(LH)
|
|
| 15. |
161-00546
|
[1] |
MAT;FLOOR
|
|
| 16. |
2160-1227D1
|
[2] |
BUSHING;RUBBER
|
|
| 17. |
161-00566
|
[1] |
MAT;FLOOR(OPTION)
|
|
| 18. |
2120-2166D19
|
[8] |
. BOLT M6X1.0X12
|
|
| 19. |
2114-1898D3
|
[8] |
WASHER
|
|
| 2. |
161-00535B
|
[1] |
FLOOR PLATE;RH
|
|
| 20. |
2161-2462
|
[1] |
GROMMET
|
|
| 21. |
621-02532B
|
[1] |
COVER;FRONT(RH)
|
|
| 22. |
4132-1138
|
[2] |
.. KNOB
|
|
| 23. |
2120-2166D16
|
[2] |
BOLT
|
|
| 24. |
190-01103
|
[1] |
LABEL
|
|
| 25. |
K1002401
|
[1] |
BUSHING;RUBBER
|
|
| 26. |
2160-1291
|
[1] |
CAP
|
|
| 3. |
161-00538B
|
[1] |
FLOOR PLATE;REAR
|
|
| 4. |
161-00536
|
[1] |
FLOOR PLATE;LH
|
|
| 4. |
161-00536A
|
[1] |
FLOOR PLATE;LH
|
|
| 5. |
161-00539A
|
[1] |
FLOOR PLATE;CENTER
|
|
| 6. |
195-02419A
|
[1] |
BRACKET;PEDAL
|
|
| 7. |
621-02531A
|
[1] |
PLATE;HEATER
|
|
| 8. |
2120-2166D5
|
[24] |
BOLT
|
|
| 9. |
2114-1898D2
|
[26] |
WASHER
|
|
