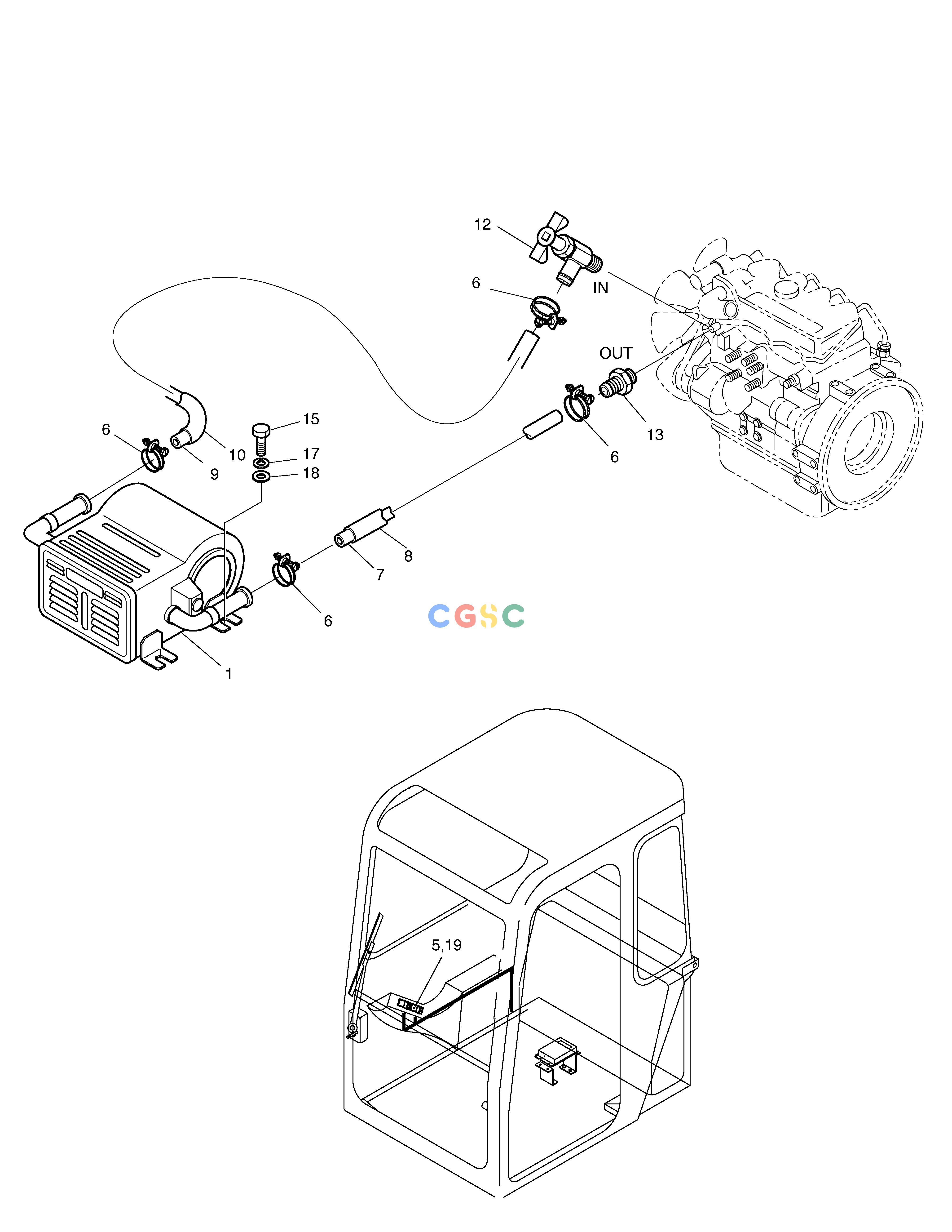

斗山零件查询HEATER PIPING SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
152 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00914
|
[-] |
HEATER PIPING
|
|
| 1. |
2920-9036
|
[1] |
HEATER
|
|
| 10. |
2185-1623D1
|
[1] |
HOSE
|
|
| 12. |
186-00014
|
[1] |
COCK;DRAIN
|
|
| 13. |
2181-2774
|
[1] |
NIPPLE;HOSE
|
|
| 15. |
2120-2166D4
|
[4] |
BOLT
|
|
| 17. |
2114-2031D5
|
[4] |
WASHER
|
|
| 18. |
2114-1898D15
|
[4] |
WASHER
|
|
| 19. |
2190-2584D5
|
[1] |
INSERT;HEATER
|
|
| 5. |
549-00040
|
[1] |
SWITCH;ROCKER
|
|
| 6. |
S8450012
|
[4] |
CLAMP
|
|
| 7. |
2185-1308D32
|
[1] |
HOSE-1600L
|
|
| 8. |
2185-1623D2
|
[1] |
PROTECTOR;HOSE
|
|
| 9. |
2185-1308D23
|
[1] |
HOSE-1300L
|
|
