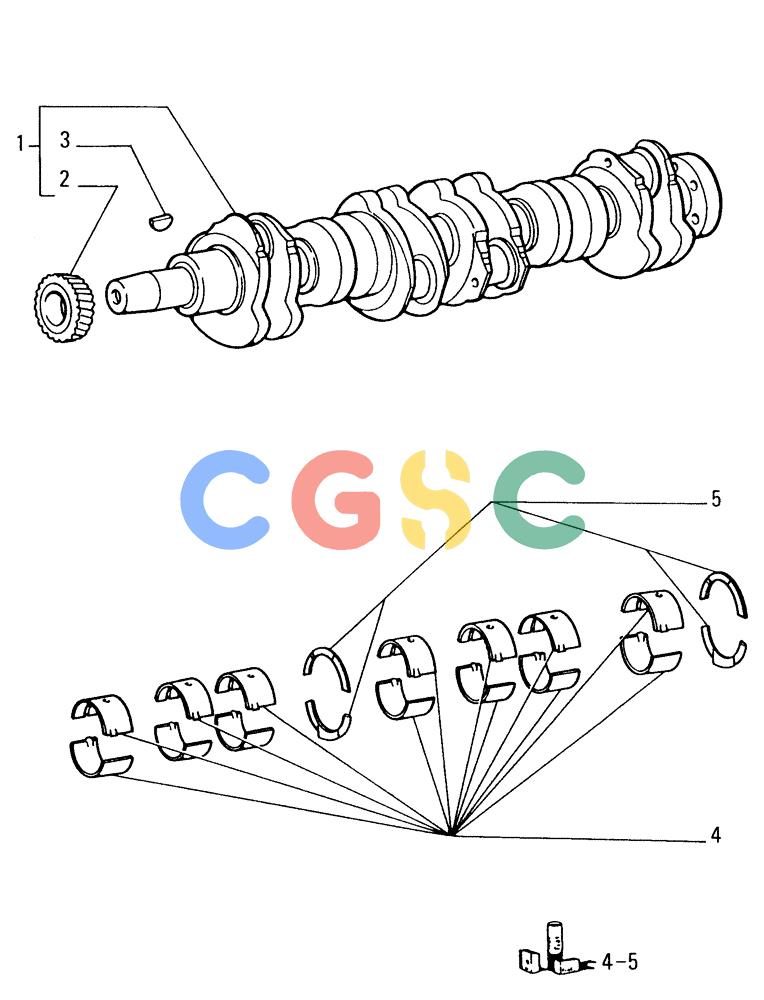

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.080[01]) - CRANKSHAFT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
858 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4851914 | [1] | CRANKSHAFT | BRE- ASSY Superseded by part number: 8817913, 4861824, 4852744 |
| 2. | 4861824 | [1] | GEAR | BRE |
| 3. | 8817913 | [1] | KEY | MOD |
| 4. | 1905861 | [1] | SET OF MAIN BRGS -0.508 | LEC |
| 4. | 1905860 | [1] | SET OF MAIN BRGS -0.254 | LEC |
| 4. | 1905859 | [1] | SET OF STD MAIN BRGS | LEC |
| 5. | 1901388 | [1] | THRUST WASHER,87.78mm ID x 111.76mm OD x 3.43mm Thk | TOR |
| 5. | 1901387 | [1] | THRUST WASHER,87.78mm ID x 111.76mm OD x 3.43mm Thk | TOR |
| 5. | 1901386 | [1] | SET OF THRUST WASHERS +0.102 | TOR |
| 5. | 1901385 | [1] | SET OF THRUST WASHERS (STD) | TOR |
