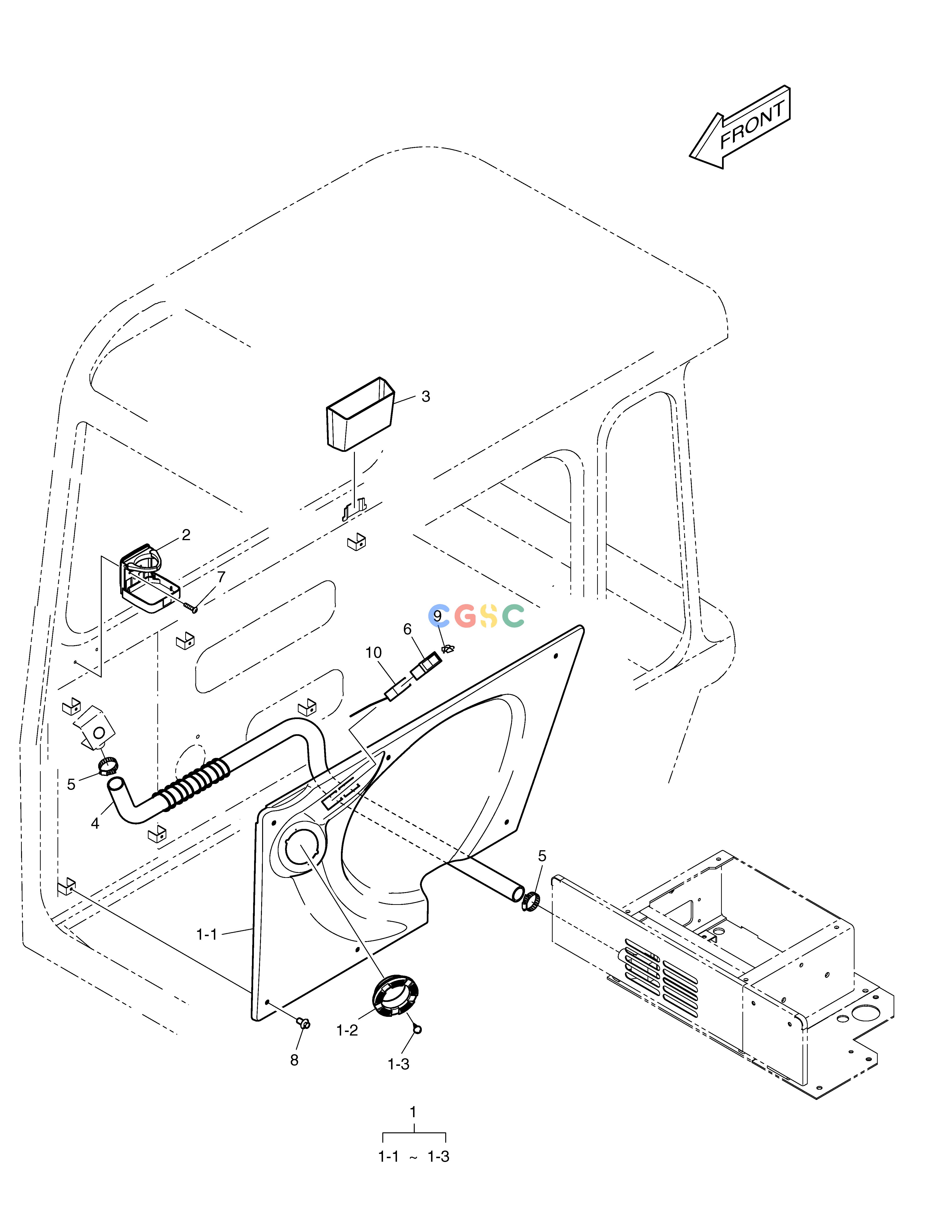

斗山零件查询PANEL ASS'Y - CABIN SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
719 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-02619B
|
[-] |
PANEL ASS'Y
|
|
| 1. |
621-02550
|
[1] |
PANEL ASS'Y
|
|
| 1-1. |
NA00749
|
[1] |
|
|
| 1-2. |
2415-9007
|
[1] |
NOZZLE;AIR
|
|
| 1-3. |
S3644213
|
[2] |
SCREW;TAPPING
|
|
| 10. |
530-00353A
|
[1] |
HARNESS;CABIN
|
|
| 2. |
621-01984
|
[1] |
HOLDER;CUP
|
|
| 3. |
621-01908
|
[1] |
BOX
|
|
| 4. |
185-00388
|
[1] |
TUBE;DEFROSTER
|
|
| 5. |
S8450023
|
[2] |
CLAMP
|
|
| 6. |
2549-9114
|
[1] |
SWITCH;WIPER & WASHER
|
|
| 7. |
S3452853
|
[2] |
SCREW
|
|
| 8. |
2120-2174
|
[6] |
SCRIVET
|
|
| 9. |
2190-2036D14
|
[1] |
INSERT;WIPER & WASHER
|
|
