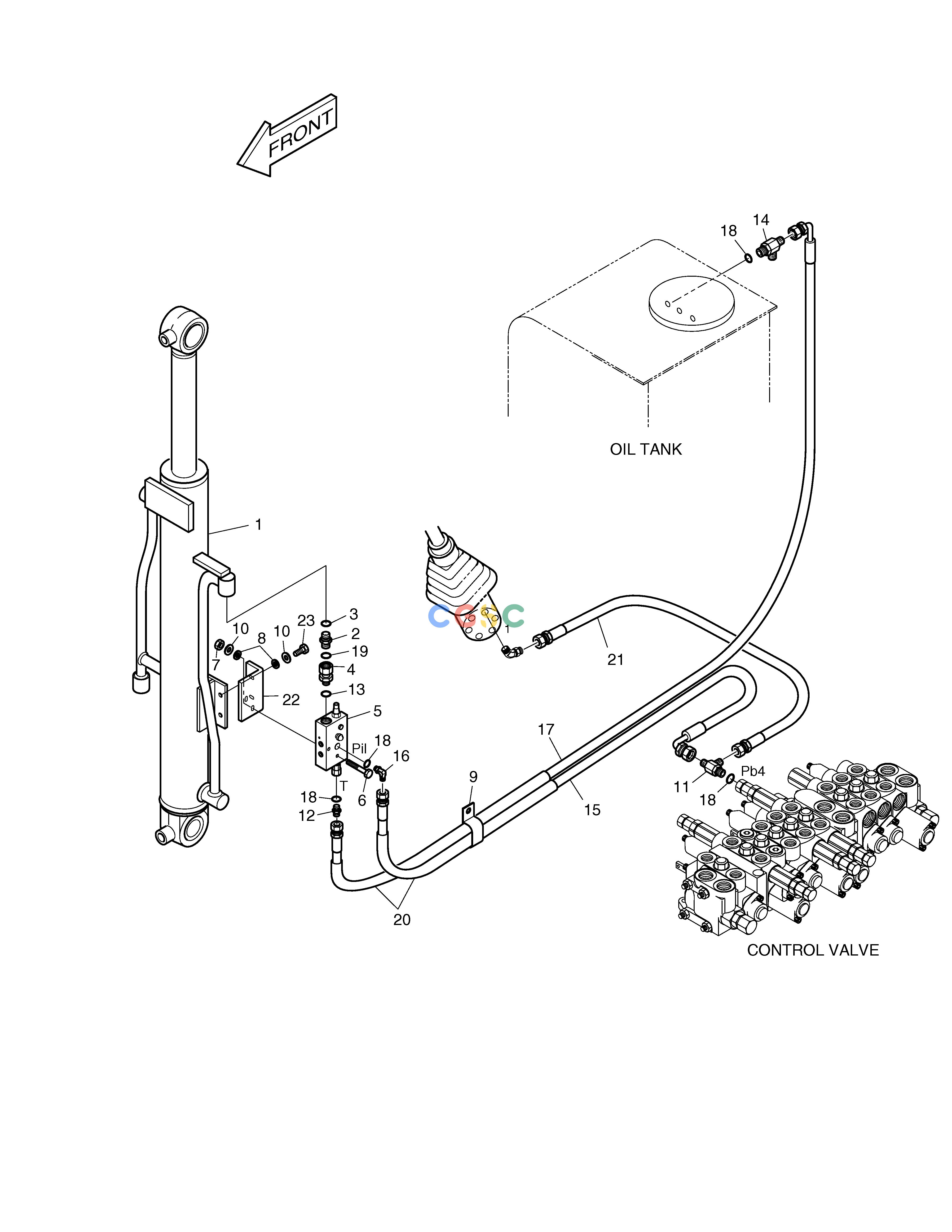

斗山零件查询LOCK VALVE PIPING SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
255 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01104A
|
[-] |
LOCK VALVE PIPING
|
|
| 1. |
440-00369A
|
[1] |
BOOM CYLINDER
|
|
| 10. |
S5010513
|
[6] |
WASHER
|
|
| 11. |
2181-1951D1
|
[1] |
TEE
|
|
| 12. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 13. |
S8000181
|
[1] |
O-RING
|
|
| 14. |
2181-1951D1
|
[1] |
TEE
|
|
| 15. |
2184-1046D135
|
[1] |
HOSE PF1/4-2500L
|
|
| 16. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 17. |
2184-1046D86
|
[1] |
HOSE PF1/4-3100L
|
|
| 18. |
S8000111
|
[4] |
O-RING
|
|
| 19. |
S8030081
|
[1] |
O-RING
|
|
| 2. |
2181-4133D38
|
[1] |
ADAPTER
|
|
| 20. |
158-00012
|
[2] |
PROTECTOR
|
|
| 21. |
DS2067043
|
[1] |
HOSE PF1/4-1650L
|
|
| 22. |
191-03433
|
[1] |
PLATE
|
|
| 23. |
S0509053
|
[2] |
. BOLT
|
|
| 3. |
S8000141
|
[1] |
O-RING
|
|
| 4. |
DS2235002
|
[1] |
ADAPTER
|
|
| 5. |
426-00225A
|
[1] |
VALVE;LOCK
|
426-00289
|
| 5. |
426-00289
|
[1] |
VALVE;LOCK
|
|
| 6. |
S0556553
|
[2] |
BOLT M8X1.25X60
|
|
| 7. |
S4012533
|
[4] |
NUT
|
|
| 8. |
S5102503
|
[4] |
. WASHER
|
|
| 9. |
124-00199D2
|
[1] |
CLIP
|
|
