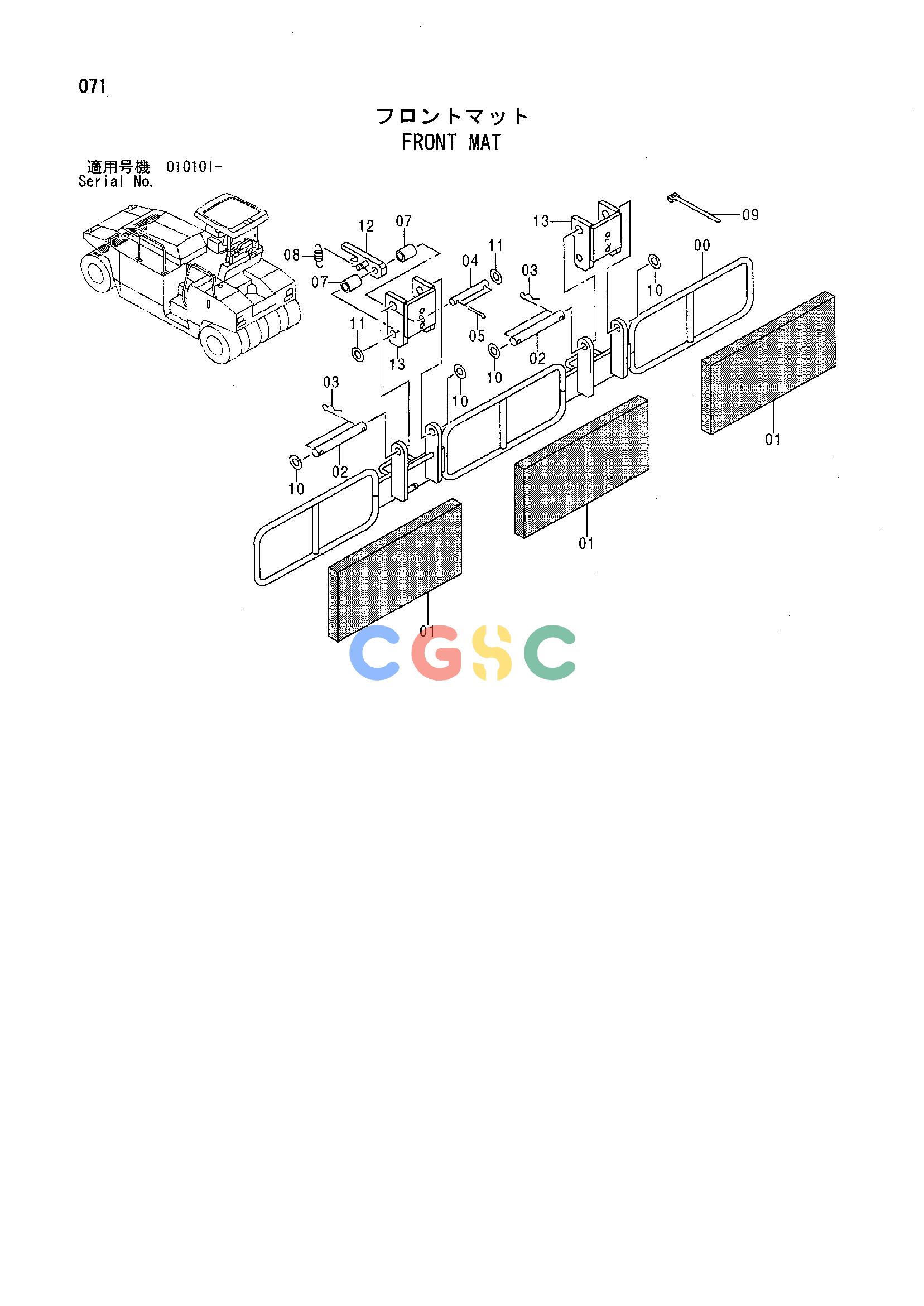

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 424483 | [1] | SCRAPER | |
| 01. | 441596 | [3] | MAT | |
| 02. | 424409 | [2] | PIN | |
| 03. | 438583 | [4] | PIN;LOCK | |
| 04. | 424416 | [1] | PIN | |
| 05. | 630012 | [2] | PIN;SPLIT | |
| 07. | 424410 | [2] | SPACER | |
| 08. | 424153 | [1] | SPRING;TENSION | |
| 09. | 424024 | [27] | CLIP;BAND | |
| 10. | 947328 | [4] | WASHER;PLANE | |
| 11. | 947327 | [2] | WASHER;PLANE | |
| 12. | 424624 | [1] | STOPPER | |
| 13. | 424543 | [2] | BRACKET |
