| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

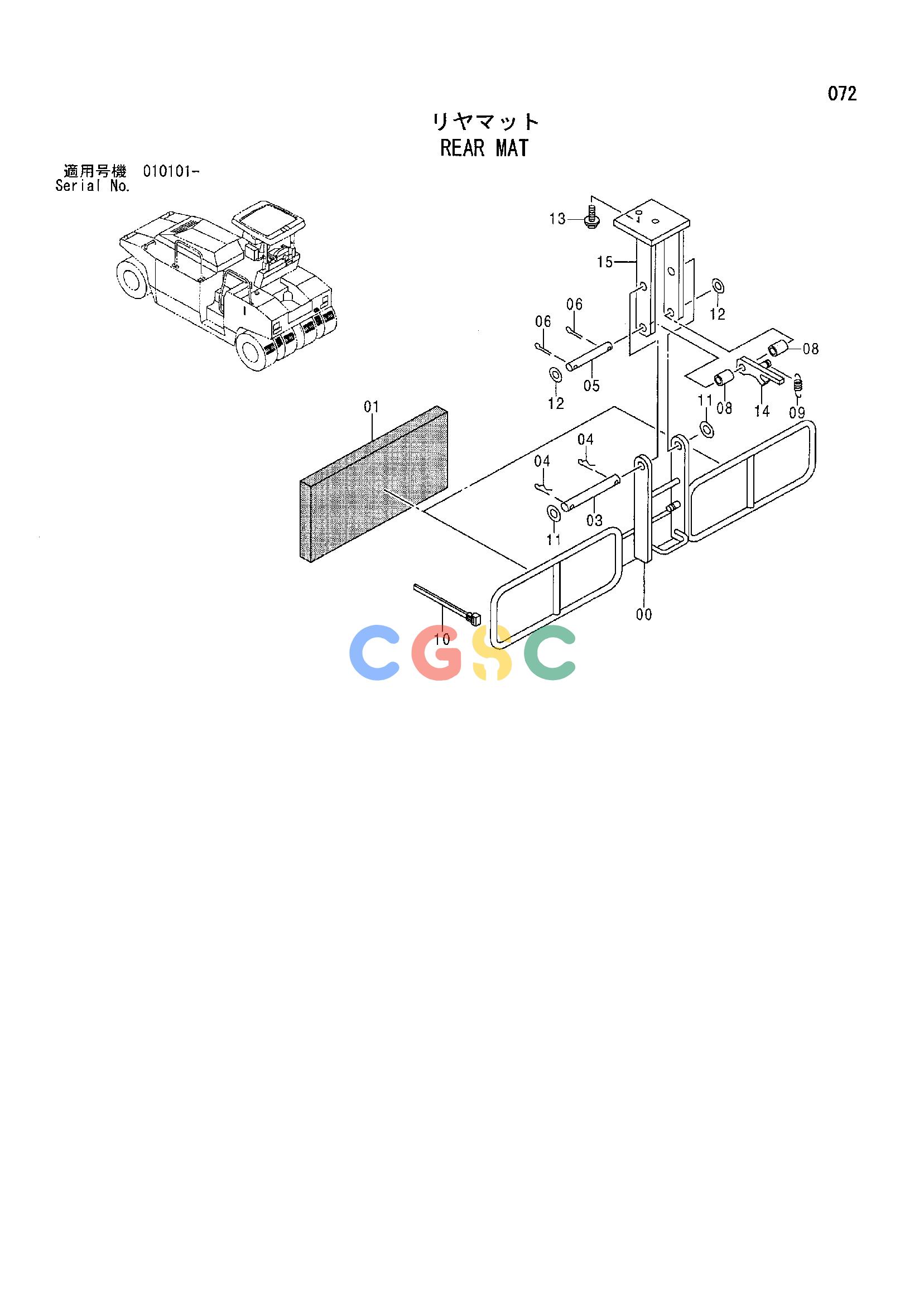

| +++++++ | [2] | REAR MAT | ||
| 00. | 424475 | [1] | SCRAPER | |
| 01. | 441596 | [2] | MAT | |
| 03. | 424409 | [1] | PIN | |
| 04. | 438583 | [2] | PIN;LOCK | |
| 05. | 424416 | [1] | PIN | |
| 06. | 630012 | [2] | PIN;SPLIT | |
| 08. | 424333 | [2] | SPACER | |
| 09. | 424153 | [1] | SPRING;TENSION | |
| 10. | 424024 | [18] | CLIP;BAND | |
| 11. | 947328 | [2] | WASHER;PLANE | |
| 12. | 947327 | [2] | WASHER;PLANE | |
| 13. | 500028 | [2] | BOLT;SEMS | |
| 14. | 424624 | [1] | STOPPER | |
| 15. | 424534 | [1] | BRACKET |
