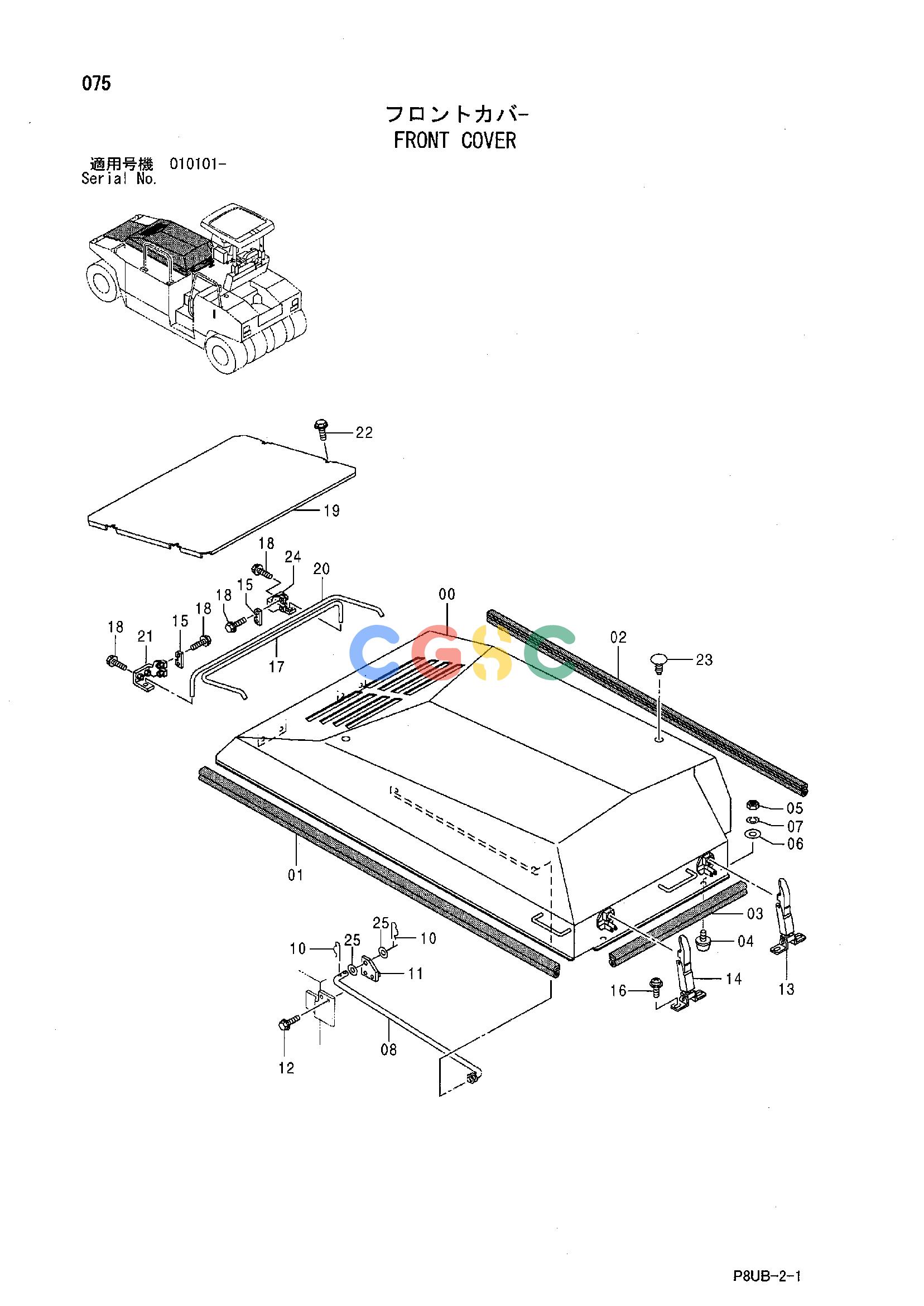

日立零件查询（CP210）FRONT COVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
611 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426295 | [1] | COVER;ENGINE | |
| 01. | 431004 | [1] | RUBBER | |
| 02. | 431004 | [1] | RUBBER | |
| 03. | 431004 | [1] | RUBBER | |
| 04. | 426164 | [2] | STOPPER | |
| 05. | 947855 | [2] | NUT | |
| 06. | 947324 | [2] | WASHER;PLANE | |
| 07. | 947887 | [2] | WASHER;SPRING | |
| 08. | 426359 | [1] | STAY | |
| 10. | 438583 | [2] | PIN;LOCK | |
| 11. | 426347 | [1] | BRACKET | |
| 12. | 500051 | [2] | BOLT;SEMS | |
| 13. | 426180 | [1] | CATCH | |
| 14. | 426181 | [1] | CATCH | |
| 15. | 426246 | [2] | PLATE | |
| 16. | 426222 | [4] | SCREW;SEMS | |
| 17. | 426241 | [1] | BAR;TORSION | |
| 18. | 500029 | [8] | BOLT;SEMS | |
| 19. | 426233 | [1] | COVER;FRONT | |
| 20. | 426242 | [1] | BAR;TORSION | |
| 21. | 426354 | [1] | BRACKET;L | |
| 22. | 500048 | [4] | BOLT;SEMS | |
| 23. | 426163 | [2] | CLIP | |
| 24. | 426355 | [1] | BRACKET;R | |
| 25. | 424196 | [2] | WASHER | |
