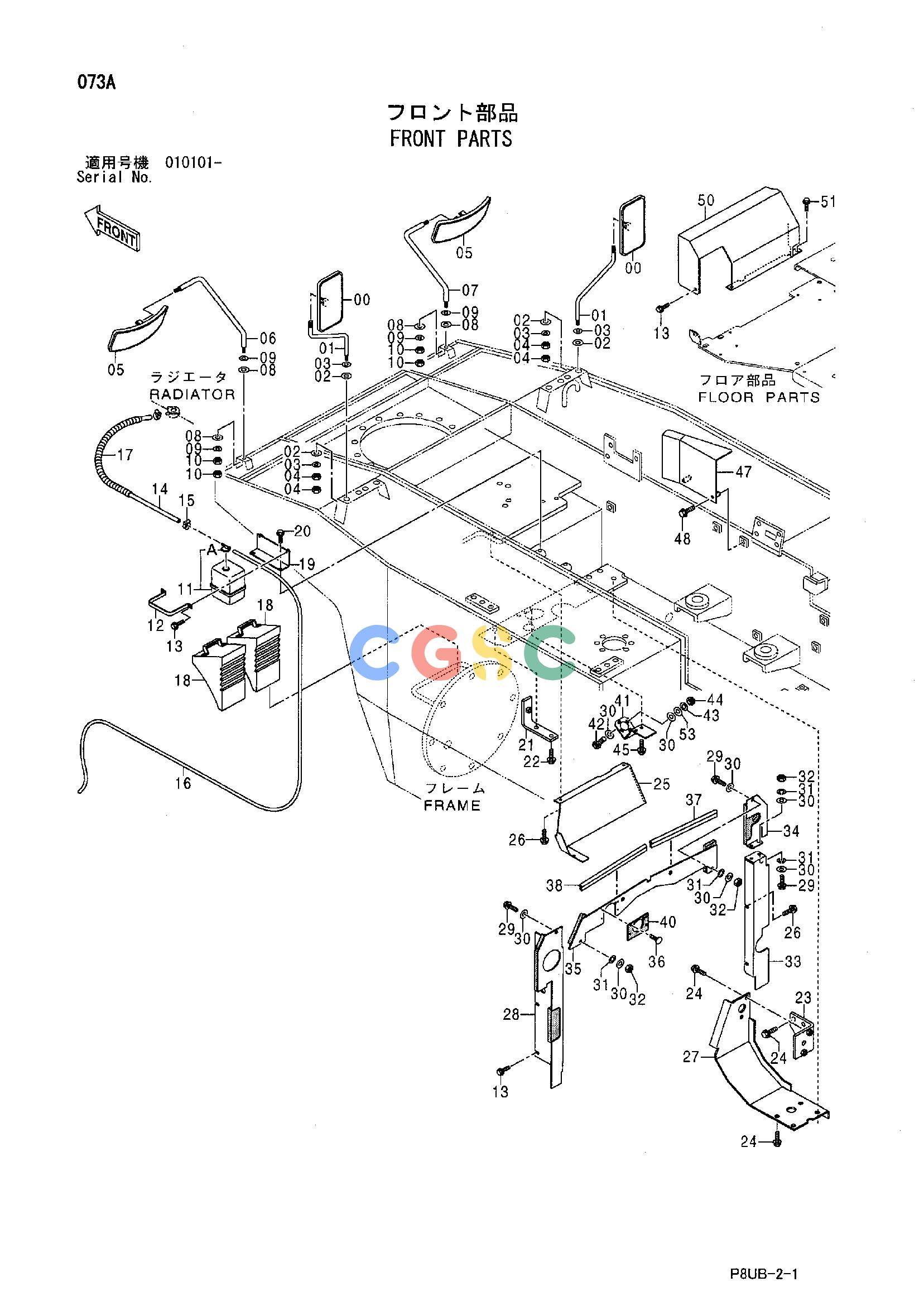

日立零件查询（CP210）FRONT PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
232 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 947261 | [2] | MIRROR | |
| 01. | 426267 | [2] | STAY | |
| 02. | 925523 | [4] | SPRING;DISC | |
| 03. | 947325 | [4] | WASHER;PLANE | |
| 04. | 947856 | [4] | NUT | |
| 05. | 947262 | [2] | MIRROR | |
| 06. | 426238 | [1] | STAY;L | |
| 07. | 426239 | [1] | STAY;R | |
| 08. | 925524 | [4] | SPRING;DISC | |
| 09. | 947327 | [4] | WASHER;PLANE | |
| 10. | 947858 | [4] | NUT | |
| 11. | 424074 | [1] | TANK;WATER | |
| 11A. | 426143 | [1] | CAP | |
| 12. | 424056 | [1] | CLAMP | |
| 13. | 947621 | [6] | BOLT;SEMS | |
| 14. | 424362 | [1] | HOSE;WATER | |
| 15. | 313060 | [2] | CLAMP;HOSE | |
| 16. | 424363 | [1] | HOSE;VINYL | |
| 17. | 424361 | [1] | TUBE | |
| 18. | 433235 | [2] | STOPPER | |
| 19. | 426349 | [1] | BRACKET | |
| 20. | 500028 | [2] | BOLT;SEMS | |
| 21. | 426351 | [1] | BRACKET | |
| 22. | 500030 | [2] | BOLT;SEMS | |
| 23. | 426350 | [1] | BRACKET | |
| 24. | 500029 | [8] | BOLT;SEMS | |
| 25. | 426310 | [1] | COVER | |
| 26. | 500048 | [5] | BOLT;SEMS | |
| 27. | 426334 | [1] | COVER | |
| 28. | 426335 | [1] | COVER | |
| 29. | 947621 | [4] | BOLT | |
| 30. | 947323 | [16] | WASHER;PLANE | |
| 31. | 606020 | [4] | WASHER;SPRING | |
| 32. | 947854 | [4] | NUT | |
| 33. | 426240 | [1] | COVER | |
| 34. | 426337 | [1] | COVER | |
| 35. | 426336 | [1] | COVER | |
| 36. | 426183 | [4] | CLIP | |
| 37. | 424777 | [1] | TRIM;SEAL | |
| 38. | 424777 | [1] | TRIM;SEAL | |
| 40. | 426279 | [1] | RUBBER | |
| 41. | 426288 | [1] | BRACKET | |
| 42. | 947609 | [4] | BOLT | |
| 43. | 947886 | [4] | WASHER;SPRING | |
| 44. | 947853 | [4] | NUT | |
| 45. | 500029 | [2] | BOLT;SEMS | |
| 47. | 426340 | [1] | COVER | |
| 48. | 500032 | [2] | BOLT;SEMS | |
| 50. | 426343 | [1] | COVER | |
| 51. | 947623 | [2] | BOLT;SEMS | |
| 53. | 947322 | [4] | WASHER;PLANE | |
