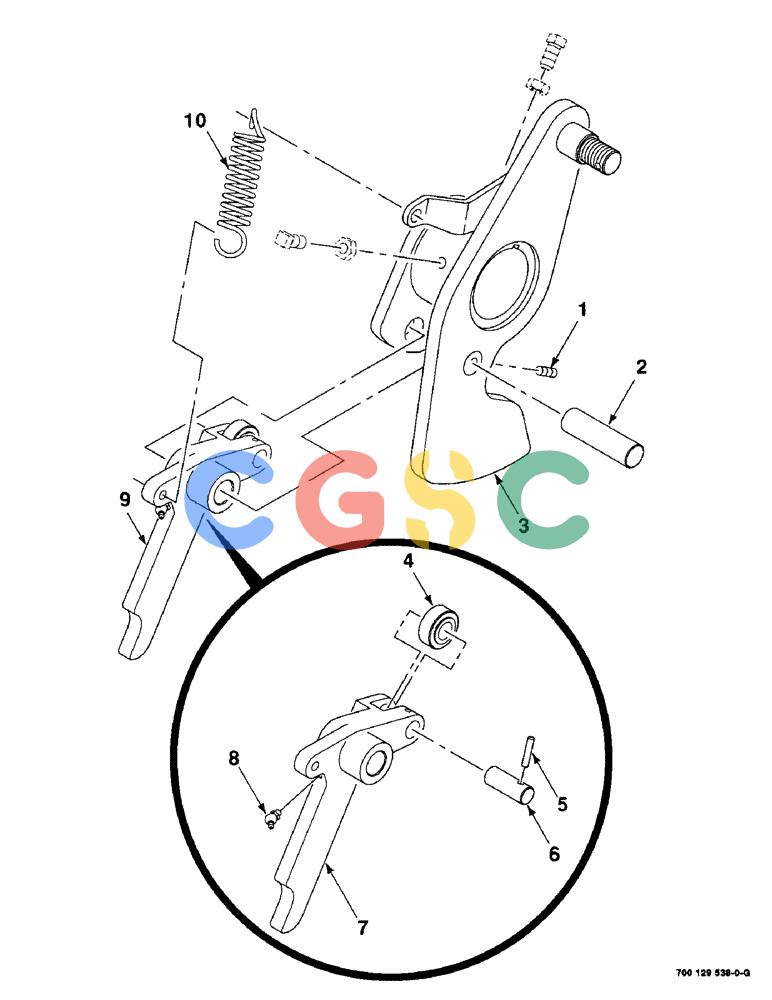

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (EUROPE) (1/95-12/00) (5-04) - CLUTCH DOG ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
296 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
069526
|
[1] |
SCREW
|
CAS
3/8-16 X 3/4 HDPHSSS NP
|
| 2. |
700129542
|
[1] |
SHAFT
|
CAS
-CLUTCH
|
| 3. |
700129539
|
[1] |
LEVER
|
CAS
ARM-CLUTCH Superseded by part number: 86512371, 700712882, 700138179, 700138196
|
| 4. |
6524623
|
[1] |
ROLLER,41.28mm OD x 18.67mm L
|
CAS
|
| 5. |
135-358
|
[1] |
GROOVED PIN,1/4" x 1 1/4", Type F
|
CAS
Pin, Grooved, 1/4" x 1 1/4", Type F
|
| 6. |
6524649
|
[1] |
PIN
|
CAS
SHAFT-CLUTCH
|
| 7. |
700123277
|
[1] |
ARM
|
CAS
-CLUTCH Superseded by part number: 700134412
|
| 8. |
219-90
|
[1] |
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
|
CAS
1/4-28 X 45 DEGREE ZERK Superseded by part number: 87569
|
| 9. |
700129484
|
[1] |
ARM
|
CAS
ASM - CLUTCH (Includes Ref: 4, 5, 6, 7 and 8) Superseded by part number: 700134412
|
| 10. |
758268
|
[1] |
SPRING
|
CAS
-EXTENSION
|
