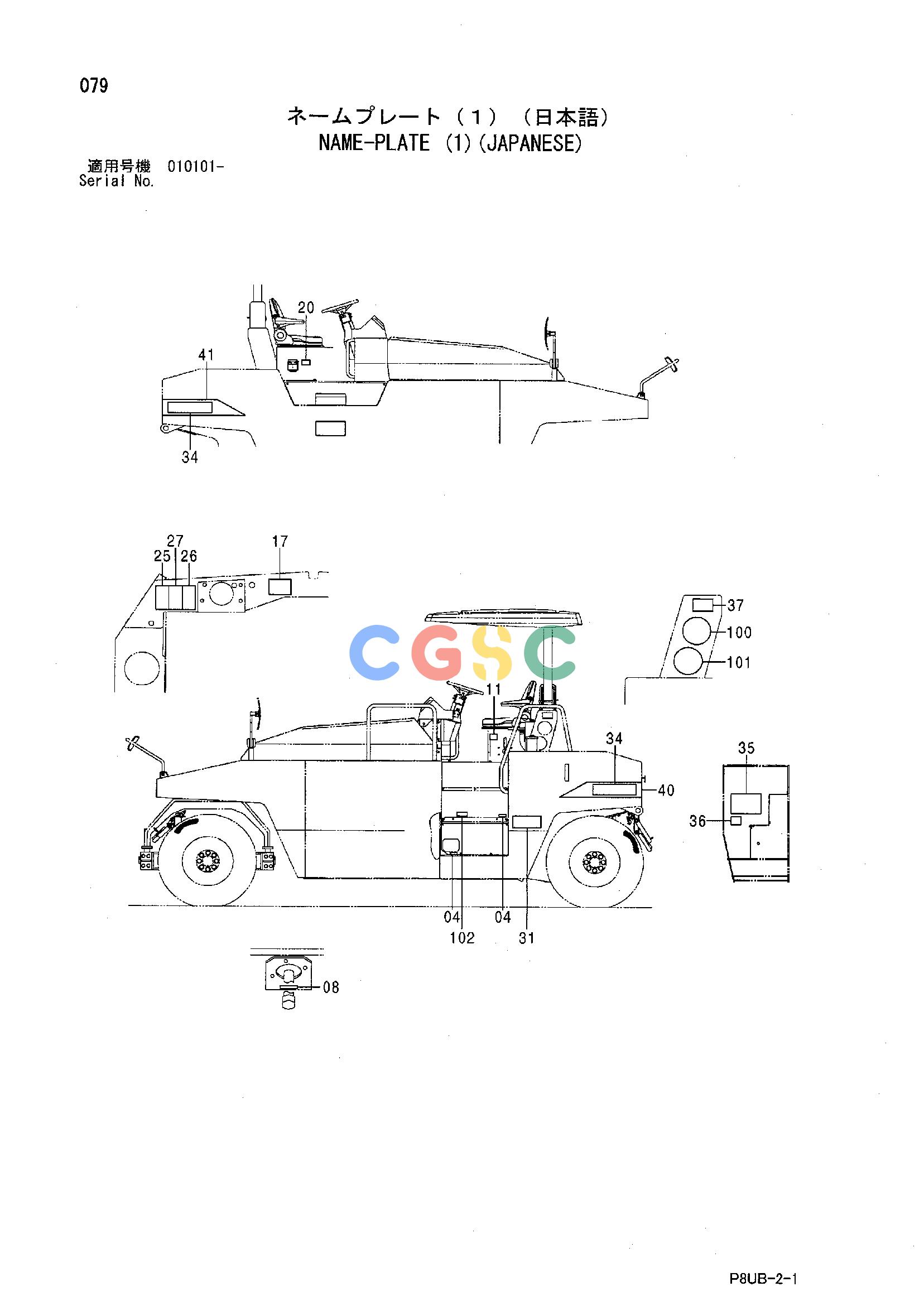

日立零件查询（CP210）NAME-PLATE (1)(JAPANESE) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
374 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 04. | 425333 | [2] | DECAL | (DRAIN) |
| 08. | 425949-27 | [1] | DECAL | (ENGIN OIL DRAIN) |
| 11. | 426138-01 | [1] | DECAL | |
| 17. | 435452 | [1] | NAME-PLATE (LLC) | |
| 20. | 426138-02 | [1] | NAME-PLATE | (CAUTION FOR BRAKE OIL) |
| 25. | 425949-08 | [1] | SAFETY-SIGN | (INVOLVED BELT) |
| 26. | 425949-10 | [1] | SAFETY-SIGN | (CAUTION FOR BURN :RADIATOR) |
| 27. | 426138-03 | [1] | SAFETY-SIGN | (CAUTION FOR BURN) |
| 31. | 426138-04 | [1] | DECAL (1X1M) | |
| 34. | 426138 | [2] | DECAL | (NAME OF MACHINE: CP210) |
| 35. | 426138-05 | [1] | DECAL | (REPAIR TABLE) |
| 36. | 426138-06 | [1] | DECAL | (SPECIFICATION: CP210) |
| 37. | +++++++ | [1] | NAME-PLATE | (MACHINE MFG. NO.) |
| 40. | 435951-31 | [1] | DECAL (STRIPE) | |
| 41. | 435951-32 | [1] | DECAL (STRIPE) | |
| 100. | +++++++ | [1] | NAME-PLATE | (NOISE) |
| 101. | +++++++ | [1] | NAME-PLATE | (EXHAUST GAS) |
| 102. | +++++++ | [1] | NAME-PLATE | (PUMP) |
