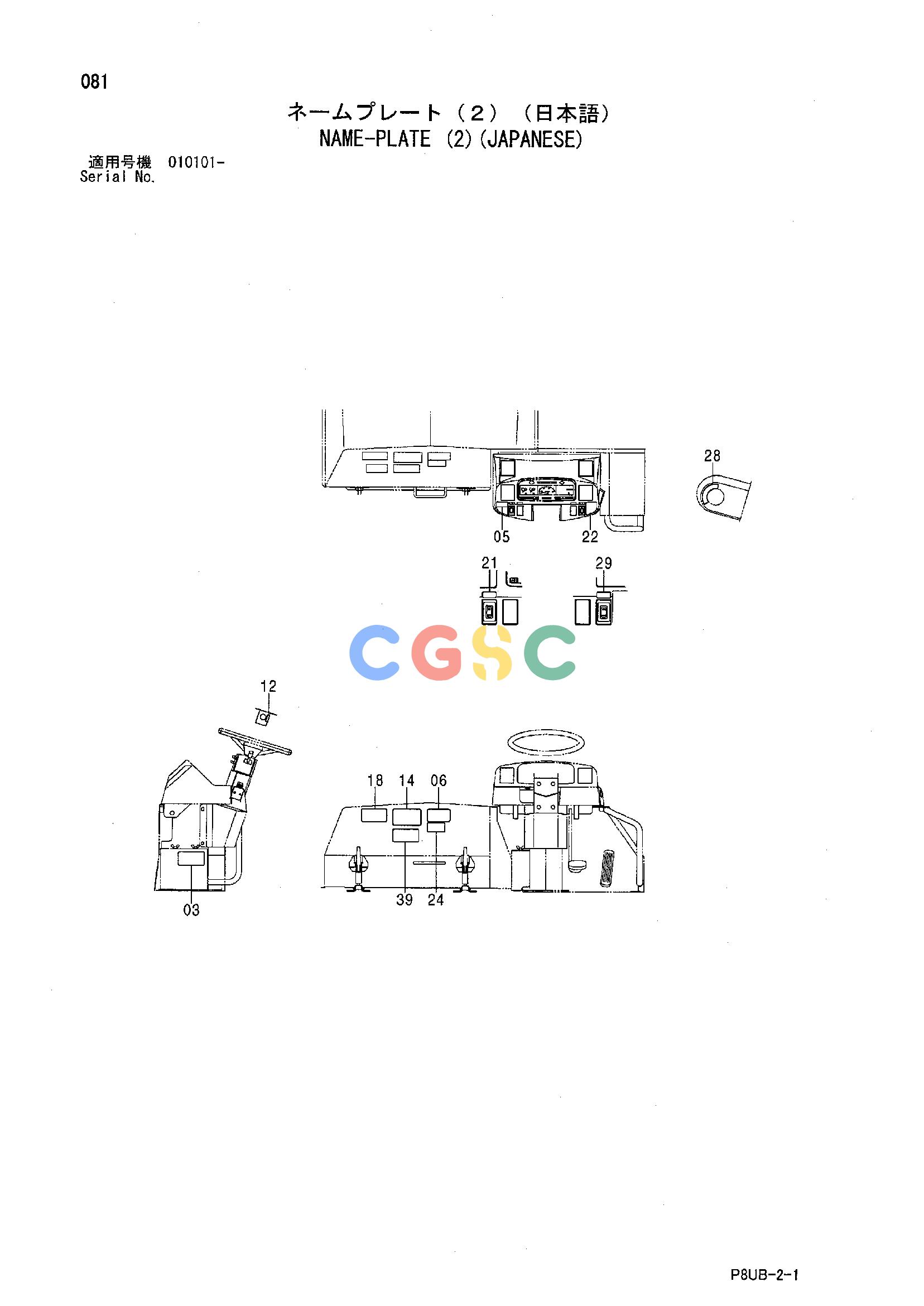

日立零件查询（CP210）NAME-PLATE (2)(JAPANESE) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
624 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 03. | 426138-08 | [1] | DECAL (FUSE) | |
| 05. | 426138-09 | [1] | NAME-PLATE | (CAUTION: WORKING LAMP) |
| 06. | 425949-25 | [1] | NAME-PLATE | (INTENSIVE READING MANUAL) |
| 12. | 436138-10 | [1] | DECAL | (LIQUID SWITCH) |
| 14. | 426138-11 | [1] | NAME-PLATE | (IMPORTANT: CHANGE OF BRAKE PARTS) |
| 18. | 425949-02 | [1] | NAME-PLATE | (WARNING: COMPORNENTS) |
| 21. | 426138-12 | [1] | NAME-PLATE | (WORKING LAMP SWITCH) |
| 22. | 426138-13 | [1] | NAME-PLATE | (TO START ENGINE) |
| 24. | 425949-07 | [1] | SAFETY-SIGN | (INSPECTION MANUAL) |
| 28. | 425949-12 | [1] | NAME-PLATE | (KEY SWITCH) |
| 29. | 425949-13 | [1] | NAME-PLATE | (PARKING BRAKE) |
| 39. | 426138-14 | [1] | DECAL | (WARNING: BRAKE) |
