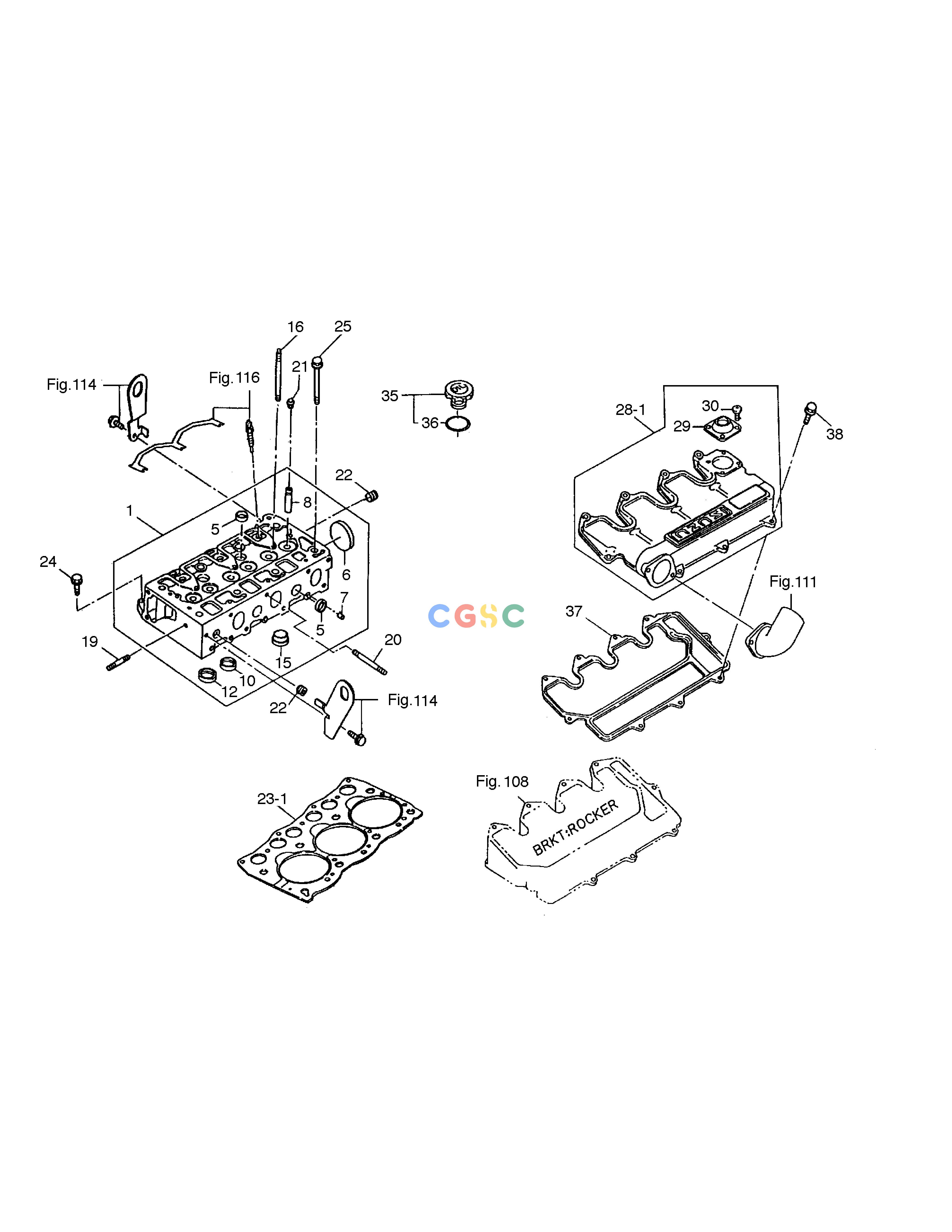

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
897044-8585
|
[1] |
CYLINDER HEAD ASS'Y
|
|
| 10. |
897045-3911
|
[3] |
SEAT;VALVE INSERT INLET
|
|
| 12. |
897045-3920
|
[3] |
SEAT;VALVE INSERT EXHAUST
|
|
| 15. |
897061-0221
|
[3] |
PLUG;HOT
|
|
| 16. |
897094-6410
|
[5] |
STUD;ROCKER BRKT
|
|
| 19. |
904110-8400
|
[1] |
STUD;WATER PUMP FIX
|
|
| 20. |
509300-0650
|
[2] |
STUD;MANIFOLD FIX
|
|
| 21. |
894110-5590
|
[6] |
SEAL;VALVE
|
|
| 22. |
509605-0050
|
[2] |
PLUG;HEATER PT3/8
|
|
| 23-1. |
897045-3931
|
[1] |
GASKET;CYL HEAD
|
|
| 24. |
894463-7840
|
[4] |
BOLT;CYL HEAD FIX L=25
|
|
| 25. |
897036-9591
|
[8] |
BOLT;CYL HEAD FIX L=89
|
|
| 28-1. |
897070-4623
|
[1] |
COVER ASM;CYL HEAD
|
|
| 29. |
894329-5490
|
[1] |
VALVE;ASM VENTILATOR
|
|
| 30. |
903910-4100
|
[4] |
SCREW;VALVE FIX
|
|
| 35. |
894133-2075
|
[1] |
CAP ASM;OIL FILLER CAP
|
|
| 36. |
894123-6231
|
[1] |
PACKING;CAP
|
|
| 37. |
897071-6991
|
[1] |
PACKING;CYL HEAD COVER
|
|
| 38. |
028080-6200
|
[1] |
BOLT;COCER FIX
|
|
| 5. |
109600-0112
|
[4] |
CUP;SEALING D=22
|
|
| 6. |
109600-0051
|
[1] |
CUP;SEALING D=44.5
|
|
| 7. |
511119-0090
|
[4] |
PLUG;DRILLED PASS D=8
|
|
| 8. |
897031-7490
|
[6] |
GUIDE;VALVE EXH INLET
|
|
