斗山零件查询ELECTRIC PARTS SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
531 次

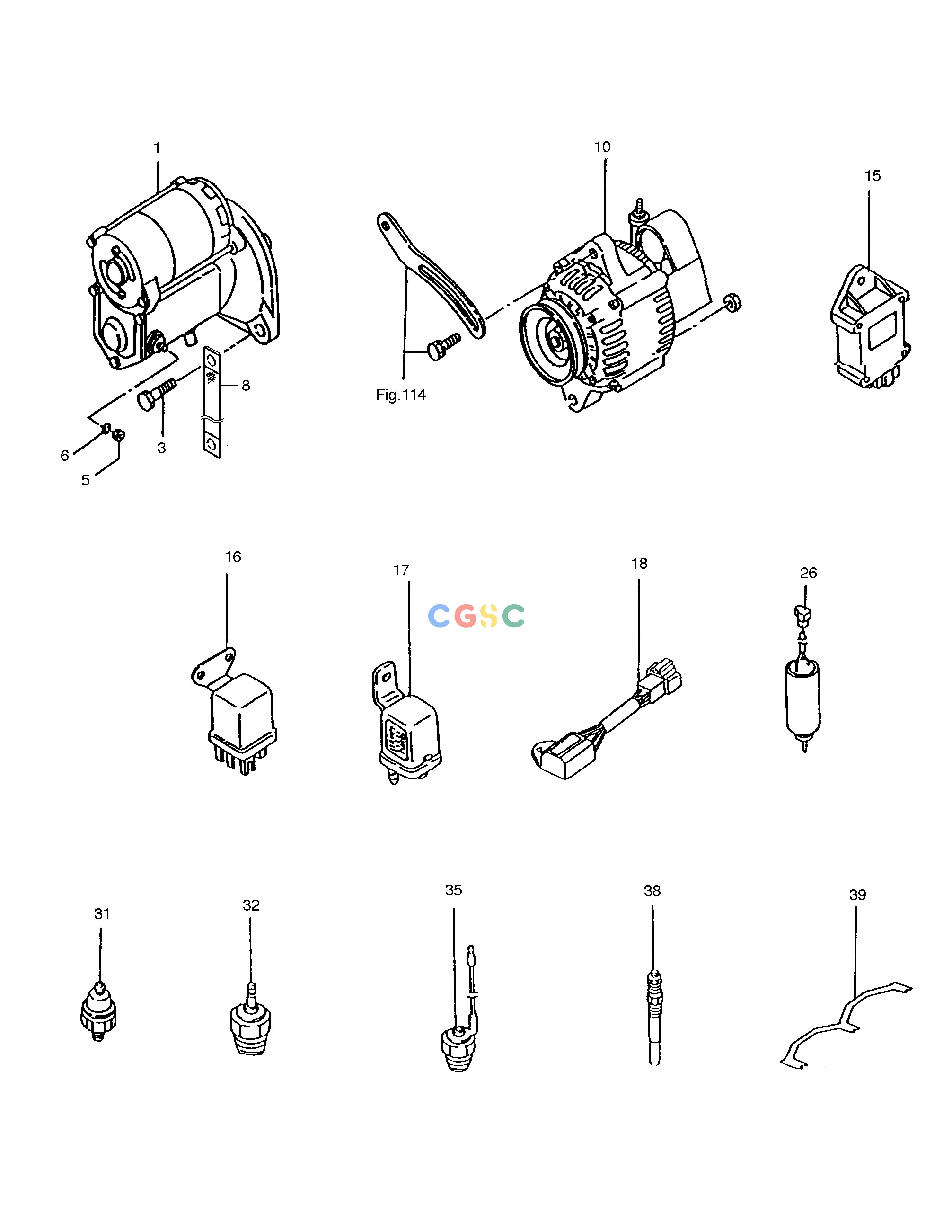

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
897048-9660
|
[1] |
STARTER ASS'Y
|
897048-9650
|
| 10. |
897048-9681
|
[1] |
GENERATOR ASS'Y
|
|
| 15. |
897040-5010
|
[1] |
TIMER GLOW PLUG OOS-3 12V
|
|
| 16. |
894248-1610
|
[1] |
RELAY;GLOW PULG
|
|
| 17. |
582550-0290
|
[1] |
RELAY;SAFETY
|
|
| 18. |
897068-7781
|
[1] |
NUT;SAFETY
|
|
| 26. |
897070-1303
|
[1] |
SOLENOID ASS'Y;ENG STO
|
|
| 3. |
028181-2300
|
[2] |
BOLT;STARER FIX
|
|
| 31. |
182410-0082
|
[1] |
SWITCH;OIL PRESSURE
|
|
| 32. |
897078-5920
|
[1] |
UNIT;THERMOMETER
|
|
| 35. |
897063-3010
|
[1] |
SENSOR;THERMO QOS
|
|
| 38. |
897106-5490
|
[3] |
PLUG;GLOW
|
|
| 39. |
897045-4171
|
[1] |
CONNECTOR;GLOW PULG L=184
|
|
| 5. |
909111-4080
|
[1] |
NUT;S/CABLE FIX
|
|
| 6. |
909150-5080
|
[1] |
WASHER;SPRING
|
|
| 8. |
982931-5110
|
[1] |
CABLE ASS'Y;BONDING
|
|
