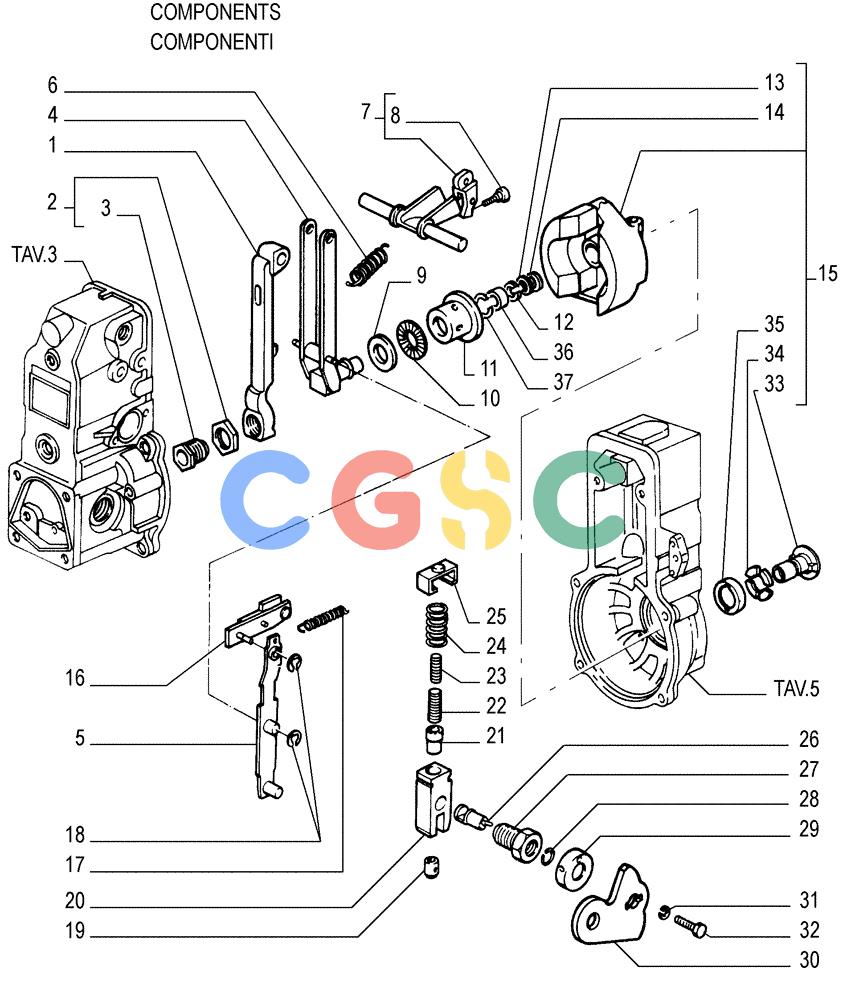

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.140[04]) - INJECTION EQUIPMENT - REGULATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
663 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79097292 | [1] | LEVER | TOR |
| 2. | 75207978 | [1] | RETAINER | TOR- ASSY Superseded by part number: 79097293 |
| 3. | 79097295 | [1] | NUT | TOR |
| 4. | 71452922 | [1] | LEVER | TOR |
| 5. | 9968656 | [1] | LEVER | TOR |
| 6. | 9969156 | [1] | SPRING | LEC |
| 7. | 9969153 | [1] | LEVER | LEC- ASSY |
| 8. | 71452927 | [1] | SCREW | TOR |
| 9. | 79097308 | [1] | WASHER | TOR |
| 10. | 79097307 | [1] | BEARING | TOR |
| 11. | 79097309 | [1] | DRIVE BUSHING | TOR |
| 12. | 79097267 | [1] | SNAP RING | TOR |
| 13. | 71452936 | [1] | LOCKING RING | TOR |
| 14. | 9970250 | [1] | WASHER | TOR Superseded by part number: 71452943 |
| 14. | 9970248 | [1] | WASHER | TOR Superseded by part number: 71452941 |
| 14. | 9970251 | [1] | WASHER | TOR Superseded by part number: 71452944 |
| 14. | 9970249 | [1] | WASHER | TOR Superseded by part number: 9970428 |
| 14. | 71452938 | [1] | WASHER | TOR- THICKNESS 0,60 |
| 14. | 71452939 | [1] | WASHER | TOR- THICKNESS 0,70 |
| 14. | 71452940 | [1] | WASHER | TOR- THICKNESS 0,80 |
| 14. | 71452937 | [1] | WASHER | TOR- THICKNESS 0,50 |
| 15. | 9969160 | [1] | SPEED GOVERNOR | LEC- ASSY |
| 16. | 71452925 | [1] | COLLAR | TOR |
| 17. | 79097269 | [1] | SPRING | TOR |
| 18. | 79097300 | [2] | WASHER | TOR |
| 19. | 9967230 | [1] | SLIDING PAD | MOD |
| 20. | 9969159 | [1] | YOKE | LEC |
| 21. | 79097326 | [1] | BOOT | TOR |
| 22. | 9968666 | [1] | SPRING | TOR Superseded by part number: 75204505 |
| 23. | 79097320 | [1] | SPRING | TOR |
| 24. | 79097330 | [1] | SPRING | TOR |
| 25. | 79097329 | [1] | BRACKET | TOR |
| 26. | 79097325 | [1] | PIN | TOR |
| 27. | 9969157 | [1] | BUSHING | LEC |
| 28. | 9968665 | [1] | SEAL | TOR |
| 29. | 9969158 | [1] | CUP | LEC Superseded by part number: 691292C1 |
| 30. | 9970247 | [1] | LEVER | TOR |
| 31. | 10571574 | [1] | LOCK WASHER | LEC6,1X1,6 Superseded by part number: 17798174 |
| 32. | 71445120 | [1] | SCREW | TOR |
| 33. | 9970453 | [1] | COUPLING | LEC |
| 34. | 9966729 | [4] | BUMPER | BRE |
| 35. | 76034156 | [1] | RING NUT | LEC |
| 36. | 9968668 | [1] | NUT | TOR |
| 37. | 79097306 | [1] | RING | TOR |
