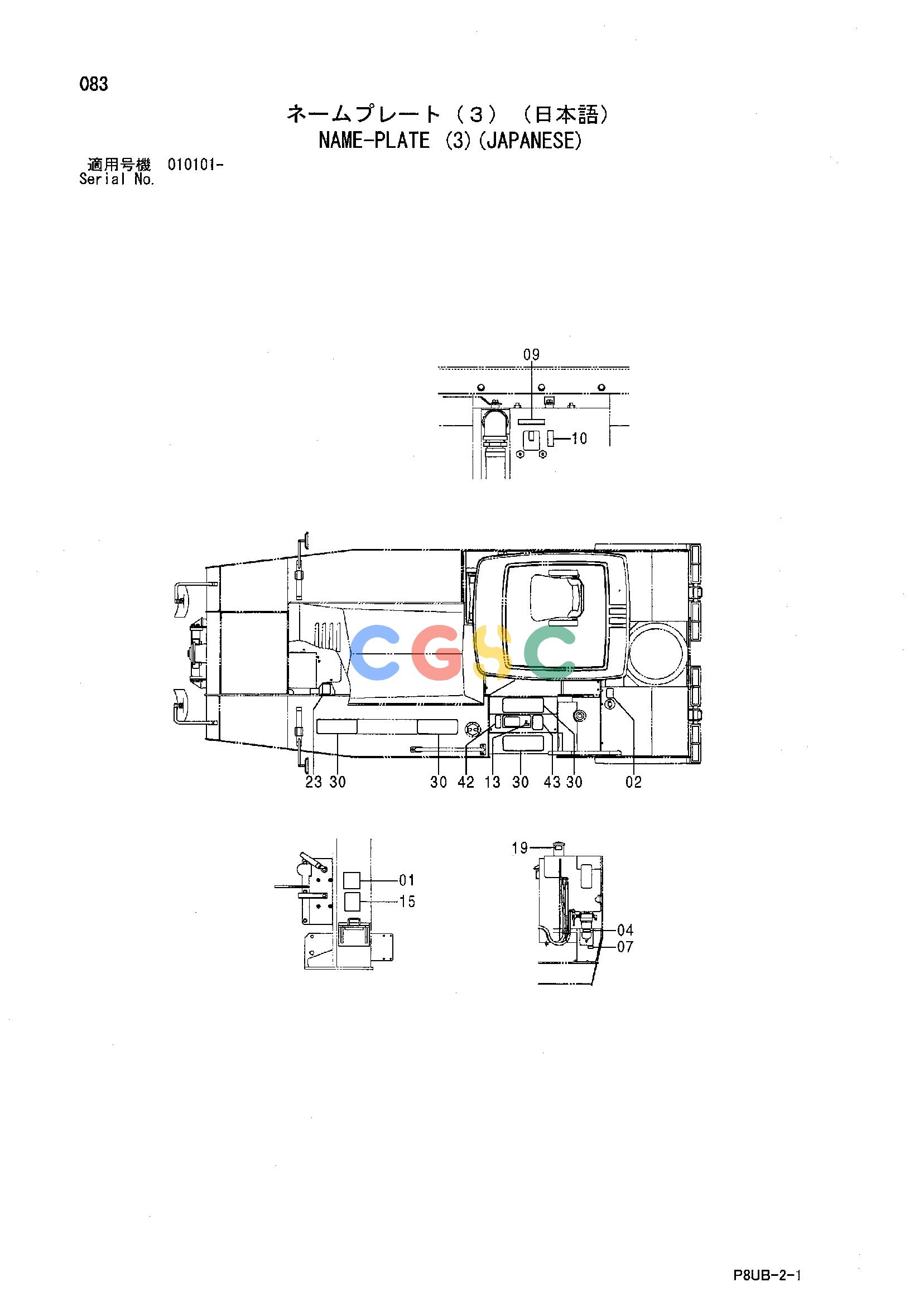

日立零件查询（CP210）NAME-PLATE (3)(JAPANESE) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
511 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 426138-15 | [1] | DECAL | (LEVER CONTROL) |
| 02. | 426138-16 | [1] | NAME-PLATE | (CAUTION FOR TANK CAP) |
| 04. | 425333 | [1] | DECAL | (DRAIN) |
| 07. | 425949-26 | [1] | DECAL | (HYDRAULIC OIL DRAIN PLUG) |
| 09. | 426138-17 | [1] | DECAL | (SUCTION & SPRINKLING PUMP CONTROL LEVER) |
| 10. | 426138-18 | | DECAL | (CONTROL LEVER) |
| 13. | 426138-19 | [1] | DECAL | (HOLE FOR PIMING WATER) |
| 15. | 426138-20 | [1] | NAME-PLATE | (WARNING: CANOPY) |
| 19. | 425949-03 | [1] | NAME-PLATE | (DIESEL FUEL) |
| 23. | 426138-21 | [1] | NAME-PLATE | (DANGER: BATTERY) |
| 30. | 426140 | [4] | TAPE | (ANTI-SKID TAPE) |
| 42. | 439531 | [1] | DECAL | (ANTI-SKID TAPE) |
| 43. | 426153 | [2] | DECAL | (ANTI-SKID TAPE) |
