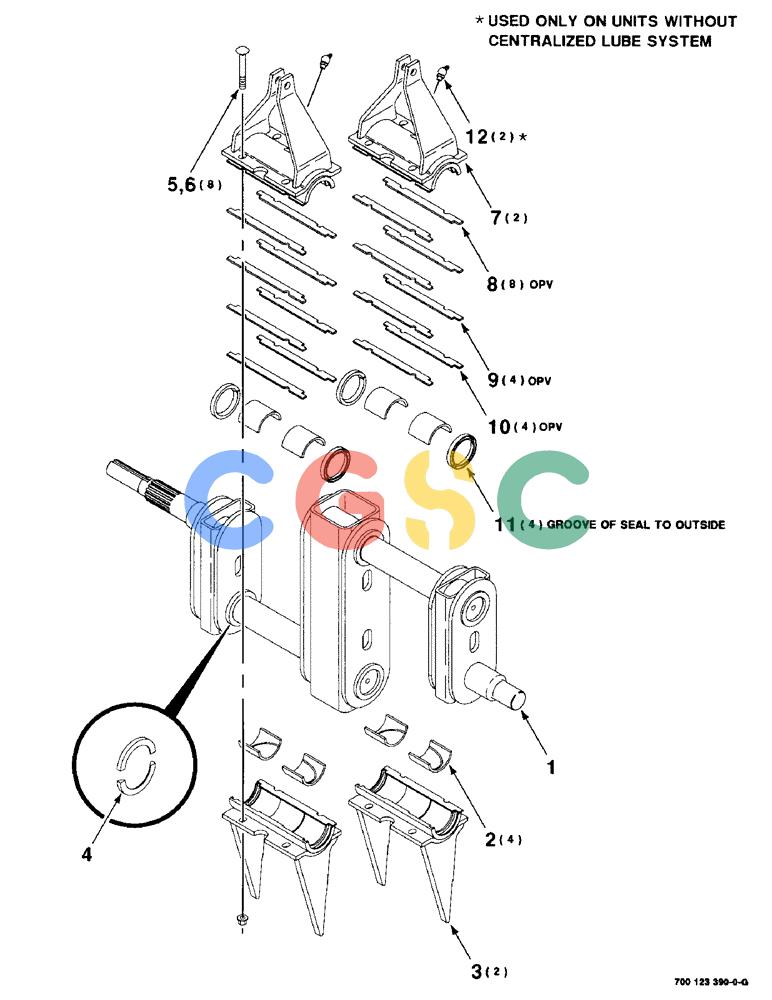

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (EUROPE) (1/95-12/00) (5-10) - CRANK ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
265 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700123391
|
[1] |
CRANK
|
CAS
WA
|
| 2. |
700706131
|
[4] |
BEARING SET,60.15mm ID x 70.12mm OD x 60mm L
|
CAS
BEARING (PAIR) Superseded by part number: 47707444
|
| 3. |
700112787
|
[2] |
FINGER
|
CAS
WA
|
| 4. |
700122670
|
[1] |
KIT
|
CAS
SPLIT RING KIT (Includes 12 Halves)
|
| 5. |
433-860
|
[8] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 3/4", Gr 5
|
CAS
1/2-13 X 3-3/4 RHSNB Superseded by part number: 280454
|
| 6. |
231-5348
|
[8] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 7. |
700112817
|
[2] |
SUPPORT
|
CAS
ARM WA
|
| 8. |
700706850
|
[8] |
SHIM
|
CAS
-0.51/.020
|
| 9. |
700706133
|
[4] |
SHIM
|
CAS
-0.25/.010
|
| 10. |
700706134
|
[4] |
SHIM
|
CAS
-0.13/.005
|
| 11. |
700706096
|
[4] |
SEAL
|
CAS
|
| 12. |
219-36
|
[2] |
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
|
CAS
1/8-27 X 45 DEGREE ZERK, SPECIAL Superseded by part number: 80717
|
