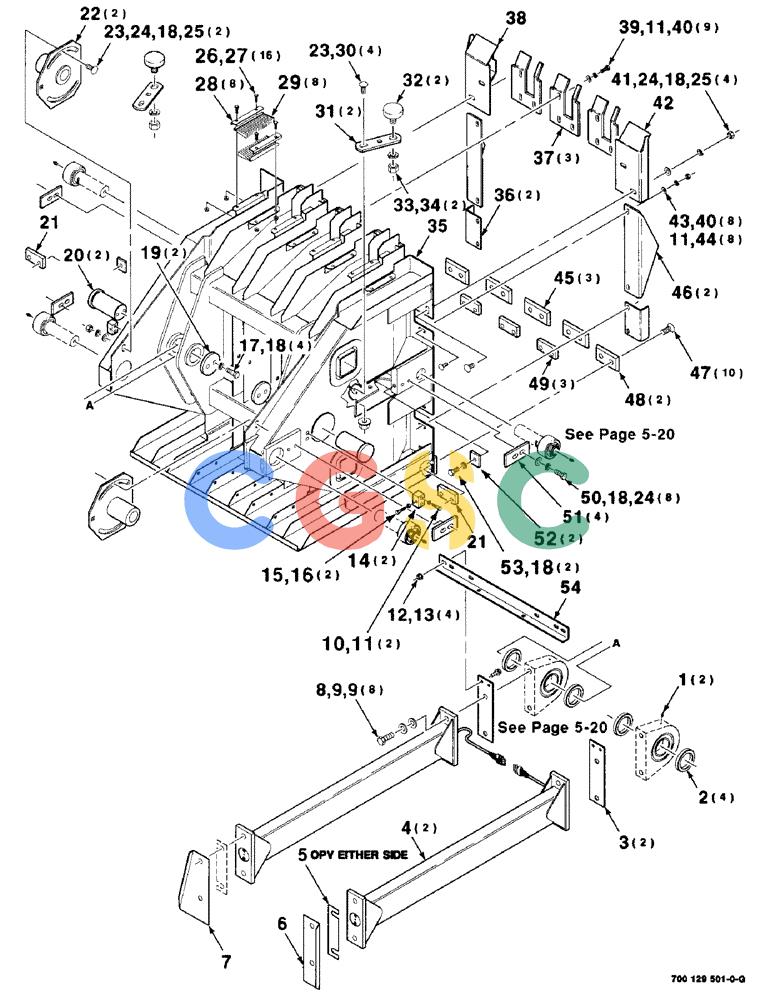

| 1. |
219-8
|
[2] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 2. |
700123199
|
[4] |
SPACER
|
CAS
|
| 3. |
700123198
|
[2] |
LARGE PLATE
|
CAS
PLATE
|
| 4. |
700129482
|
[2] |
ROD
|
CAS
CONNECTOR ROD ASSEMBLY Superseded by part number: 700137251
|
| 5. |
700123200
|
[1] |
SHIM
|
CAS
|
| 6. |
700123201
|
[1] |
SCRAPER
|
CAS
-LEFT
|
| 7. |
700123202
|
[1] |
SCRAPER
|
CAS
-RIGHT
|
| 8. |
326-1028
|
[8] |
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8
|
IH
|
| 9. |
396-21066
|
[16] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN Superseded by part number: 87613283
|
| 10. |
413-624
|
[2] |
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 72187209, 88044
|
| 11. |
492-11038
|
[19] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 12. |
154273C1
|
[4] |
BOLT,Hex Serr, 3/8" - 16 x 1", Spcl
|
IH
3/8-16 X 1 HFSS Superseded by part number: 9706726
|
| 13. |
231-5146
|
[4] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 14. |
700124033
|
[2] |
BLOCK
|
CAS
-PUSHER
|
| 15. |
873083
|
[2] |
SCREW
|
CAS
3/8-16 X 1-1/2 FTC
|
| 16. |
425-146
|
[2] |
JAM NUT,3/8" - 16, Gr 5
|
CAS
Superseded by part number: 87016560
|
| 17. |
413-824
|
[4] |
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 87689, 72187216
|
| 18. |
80679
|
[20] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 19. |
700113192
|
[2] |
WASHER
|
CAS
PLATE
|
| 20. |
700123196
|
[2] |
SHAFT
|
CAS
|
| 21. |
700123195
|
[2] |
BAR
|
CAS
|
| 22. |
700123175
|
[2] |
SUPPORT
|
CAS
WA
|
| 23. |
433-820
|
[6] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
1/2-13 X 1-1/4 RHSNB Superseded by part number: 87868
|
| 24. |
495-21056
|
[14] |
WASHER,1/2"
|
CAS
1/2 HARDENED PLAIN WASHER Superseded by part number: 72187265, 80700
|
| 25. |
425-108
|
[6] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
|
| 26. |
413-516
|
[16] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5
|
CAS
Superseded by part number: 9635884, 72187198
|
| 27. |
232-5315
|
[16] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 28. |
700129690
|
[8] |
RETAINER
|
CAS
|
| 29. |
700713894
|
[8] |
BRUSH
|
CAS
|
| 30. |
231-5348
|
[4] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 31. |
700123184
|
[2] |
LARGE PLATE
|
CAS
PLATE
|
| 32. |
7713829
|
[2] |
BEARING ASSY,19.56 mm ID x 63.75 mm OD
|
IH
-CAM Superseded by part number: 688282
|
| 33. |
492-11075
|
[2] |
LOCK WASHER,3/4"
|
CAS
3/4" Superseded by part number: 87340
|
| 34. |
425-1112
|
[2] |
NUT,3/4"-16, G5
|
CAS
3/4-16 H Superseded by part number: 80001689
|
| 35. |
700129680
|
[1] |
PLUNGER
|
CAS
WA
|
| 36. |
700123192
|
[2] |
ANGLE
|
CAS
|
| 37. |
700113187
|
[3] |
ANTI-WRAP PLATE
|
CAS
PLATE
|
| 38. |
700123186
|
[1] |
LARGE PLATE
|
CAS
PLATE WA - RIGHT
|
| 39. |
413-616
|
[9] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 40. |
496-11041
|
[17] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 41. |
433-816
|
[4] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
|
CAS
1/2-13 X 1 RHSNB Superseded by part number: 280486
|
| 42. |
700123185
|
[1] |
LARGE PLATE
|
CAS
PLATE WA - LEFT
|
| 43. |
434-616
|
[8] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 44. |
425-106
|
[8] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 45. |
700113188
|
[3] |
KNIFE
|
CAS
|
| 46. |
700123193
|
[2] |
ANGLE
|
CAS
|
| 47. |
61-46224
|
[10] |
HEX SOC SCREW,FLAT, 5/8" x 1-1/2"
|
CAS
5/8-11 X 1-1/2 HSFCHCS
|
| 48. |
700123194
|
[2] |
KNIFE
|
CAS
|
| 49. |
700113189
|
[3] |
BAR
|
CAS
|
| 50. |
413-820
|
[8] |
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187215, 87670
|
| 51. |
700124030
|
[4] |
LARGE PLATE
|
CAS
PLATE
|
| 52. |
700124031
|
[2] |
LARGE PLATE
|
CAS
PLATE-PUSHER
|
| 53. |
413-816
|
[2] |
BOLT,Hex, 1/2" - 13 x 1", Gr 5
|
CAS
Superseded by part number: 87909, BN50282
|
| 54. |
700123197
|
[1] |
ANGLE
|
CAS
|
