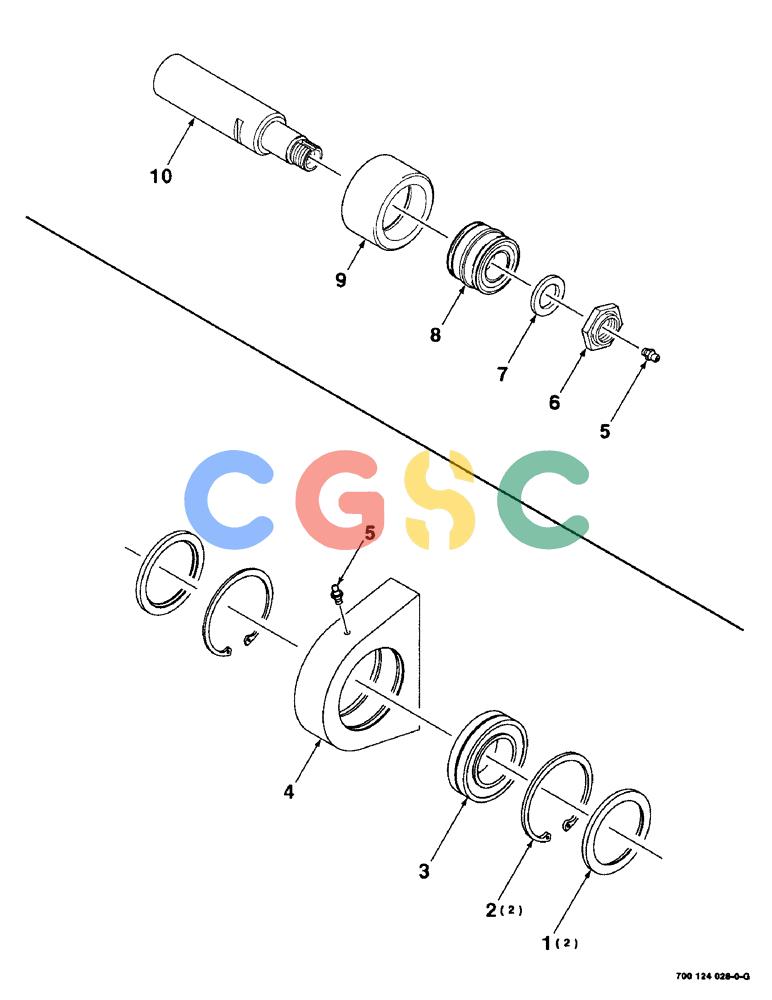

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (EUROPE) (1/95-12/00) (5-20) - PLUNGER CAM AND CRANK ARM BEARING ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
655 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
8744054
|
[2] |
SEAL
|
CAS
|
| 2. |
100-21393
|
[2] |
SNAP RING,3.938", Int, #393
|
CAS
Ring, Snap, 3.938", Int, #393 Superseded by part number: 64417
|
| 3. |
8051005
|
[1] |
ROLLER BEARING,55mm ID x 100mm OD x 25mm W
|
CAS
BEARING-ROLLER, SPHERICAL
|
| 4. |
700123121
|
[1] |
BEARING HOUSING
|
CAS
HOUSING-BEARING Superseded by part number: 700123120
|
| 5. |
219-8
|
[2] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 6. |
700710680
|
[1] |
NUT
|
CAS
7/8-20 NUT-STAKE
|
| 7. |
495-81055
|
[1] |
WASHER,29/32" x 1 3/8" x .134"
|
CAS
7/8 X 10 GAUGE NRMB
|
| 8. |
700710419
|
[1] |
BEARING ASSY,25.4mm ID x 50.29mm OD x 31.62mm W
|
CAS
BEARING ASSEMBLY
|
| 9. |
700123180
|
[1] |
ROLLER,70.13mm OD x 38mm L
|
CAS
|
| 10. |
700124029
|
[1] |
SHAFT
|
CAS
|
