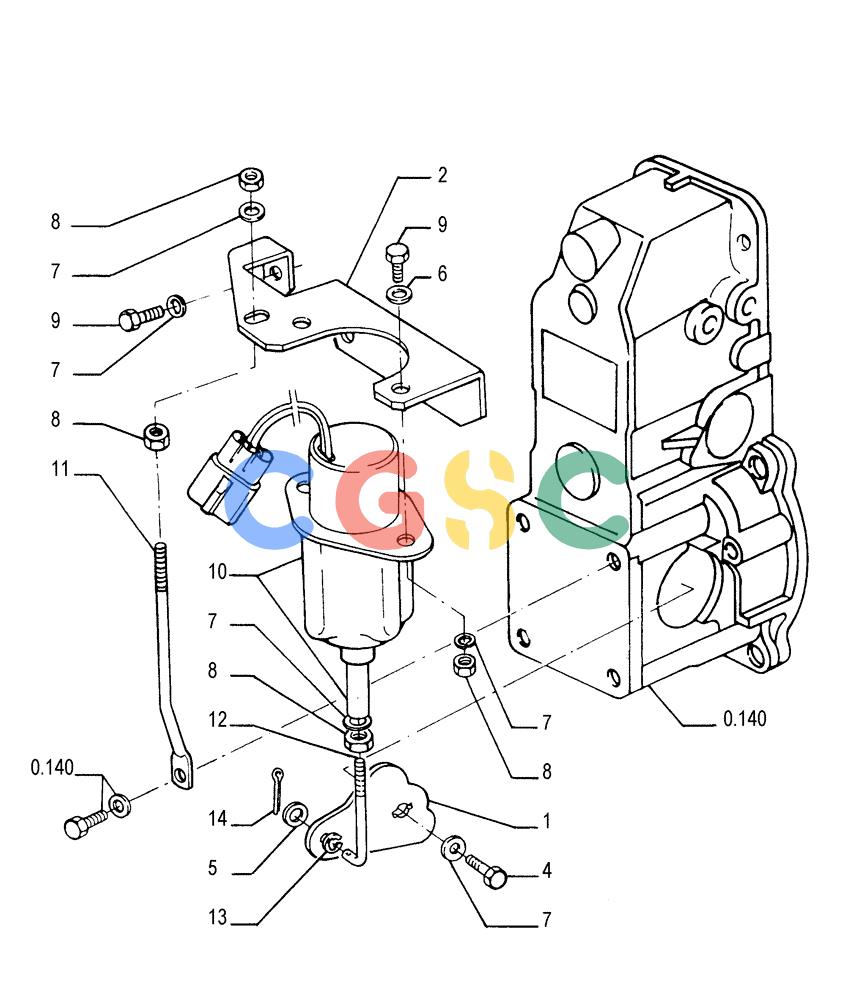

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.146[01]) - INJECTION EQUIPMENT - SOLENOID New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
387 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 99453192 | [1] | LEVER | LEC |
| 2. | 99453186 | [1] | SUPPORT | LEC |
| 3. | 10902424 | [3] | SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd | TTF Superseded by part number: |
| 4. | 10902224 | [1] | SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd | TTF Superseded by part number: |
| 5. | 17094604 | [1] | LOCK WASHER | LEC6X11 Superseded by part number: 17094614 |
| 6. | 14496404 | [3] | WASHER,M6 x 12 x 2 Thk | TTF Superseded by part number: 17094724 |
| 7. | 11197774 | [7] | BELLEVILLE WASHER,Belleville, M6.4 | TTF |
| 8. | 15896221 | [5] | NUT,Hex, M6, 5.20mm High, Cl 10 | ZED Superseded by part number: 86500688 |
| 9. | 10903624 | [2] | BOLT,Hex, M6 x 50mm, Cl 8.8 | BAS Superseded by part number: 10903621 |
| 10. | 99453479 | [1] | ELECTROMAGNET | LEC-Sincro Start |
| 11. | 99453190 | [1] | TOP LINK | LEC |
| 12. | 99453191 | [1] | THREADED TIE-ROD | LEC |
| 13. | 17087174 | [1] | LOCKING RING | LEC |
| 14. | 10734301 | [1] | COTTER PIN,M2 x 18 | TTF Superseded by part number: 16854101 |
