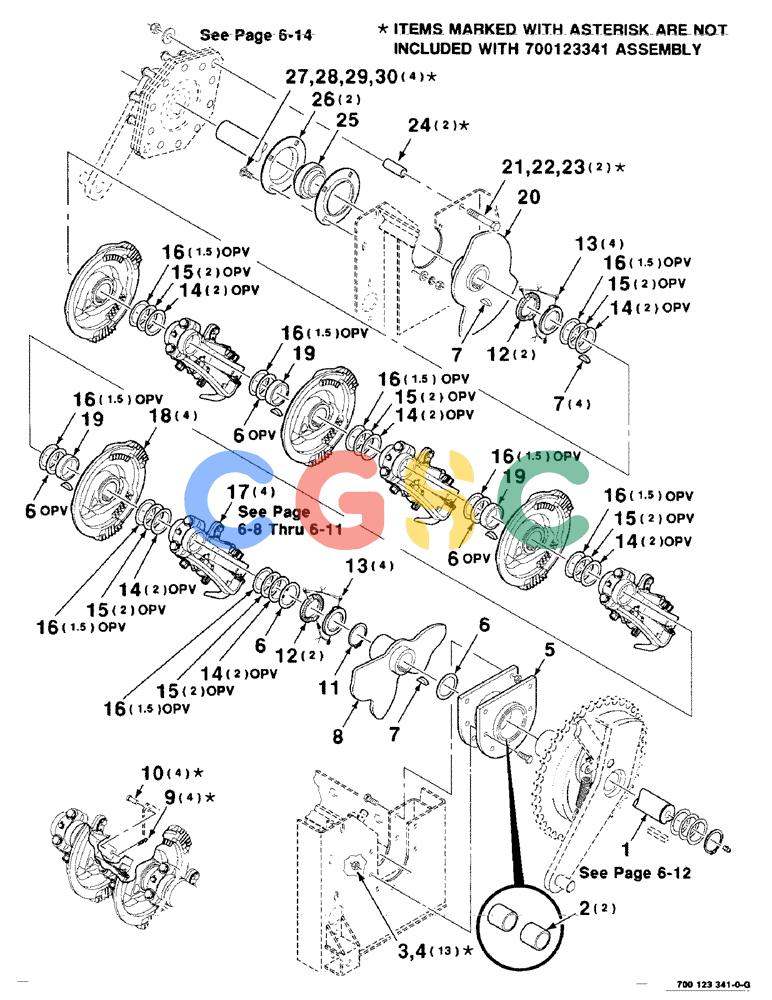

700123341
|
[1] |
KNOTTER
|
CAS
ASSEMBLY COMPLETE
|
| 1. |
700123342
|
[1] |
SHAFT
|
CAS
-KNOTTER
|
| 2. |
6565014
|
[2] |
BRONZE BUSHING,89.08mm ID x 101.8mm OD x 44.58mm L
|
CAS
BUSHING
|
| 3. |
413-820
|
[13] |
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187215, 87670
|
| 4. |
230-4118
|
[13] |
LOCK NUT,1/2"-13, GA
|
CAS
1/2-13 HTLN GR/B
|
| 5. |
6844773
|
[1] |
ASSEMBLY
|
CAS
MOUNTING ASSEMBLY (Includes Ref: 2)
|
| 6. |
6523500
|
[5] |
WASHER
|
CAS
BUSHING
|
| 7. |
126-40
|
[6] |
WOODRUFF KEY,#G, 3/8" x 1 1/2"
|
CAS
|
| 8. |
700123346
|
[1] |
CAM
|
CAS
WA-TWINE
|
| 9. |
S120261
|
[4] |
PIN
|
CAS
.148 WIRE HAIRPIN COTTER
|
| 10. |
063586
|
[4] |
CLEVIS PIN
|
IH
3/8 X 1-1/8 CLEVIS PIN Superseded by part number: 9838826
|
| 11. |
101-11215
|
[1] |
SNAP RING,#215, 2.026", Ext
|
CAS
RING, SNAP, , Retaining #215, 2.026", Ext
|
| 12. |
6591457
|
[4] |
SHIM
|
CAS
-HALF, ADJUSTABLE
|
| 13. |
168-24
|
[8] |
DRIVE SCREW,Type U, Rnd Hd, #10 - 24 x 1/2"
|
CAS
#10 X 1/2 ROUNG HEAD SCREW
|
| 14. |
6613665
|
[12] |
SHIM,57.15mm ID x 76.2mm OD x 0.13mm Thk
|
CAS
-.005
|
| 15. |
6523534
|
[12] |
SHIM
|
CAS
|
| 16. |
6523542
|
[13.5] |
SHIM
|
CAS
-.031
|
| 17. |
700113321
|
[4] |
KNOTTER
|
CAS
HEAD ASSEMBLY-KNOTTER
|
| 18. |
700100868
|
[4] |
CAM
|
CAS
GEAR-KNOTTER Superseded by part number: 700138856
|
| 19. |
6591549
|
[3] |
SPACER
|
CAS
|
| 20. |
700123344
|
[1] |
CAM
|
CAS
WA-TUCKER
|
| 21. |
413-1060
|
[2] |
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5
|
CAS
5/8-11 X 3-3/4 C Superseded by part number: 16445
|
| 22. |
495-21069
|
[2] |
WASHER,5/8"
|
CAS
5/8 WIDE PLAIN WASHER Superseded by part number: 80299
|
| 23. |
232-41110
|
[2] |
NUT,5/8"-11, GC
|
CAS
NUT, LOCK, 5/8"-11, GC Superseded by part number: 85700693
|
| 24. |
235663
|
[2] |
BUSHING
|
CAS
|
| 25. |
8050478
|
[1] |
BALL BEARING,55.56mm ID x 100mm OD x 21mm W
|
CAS
BEARING-SPHERICAL
|
| 26. |
714360
|
[2] |
FLANGED BEARING
|
IH
FLANGE
|
| 27. |
433-820
|
[4] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
1/2-13 X 1-1/4 RHSNB Superseded by part number: 87868
|
| 28. |
495-21056
|
[4] |
WASHER,1/2"
|
CAS
1/2 HARDENED PLAIN WASHER Superseded by part number: 72187265, 80700
|
| 29. |
80679
|
[4] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 30. |
425-108
|
[4] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
|
