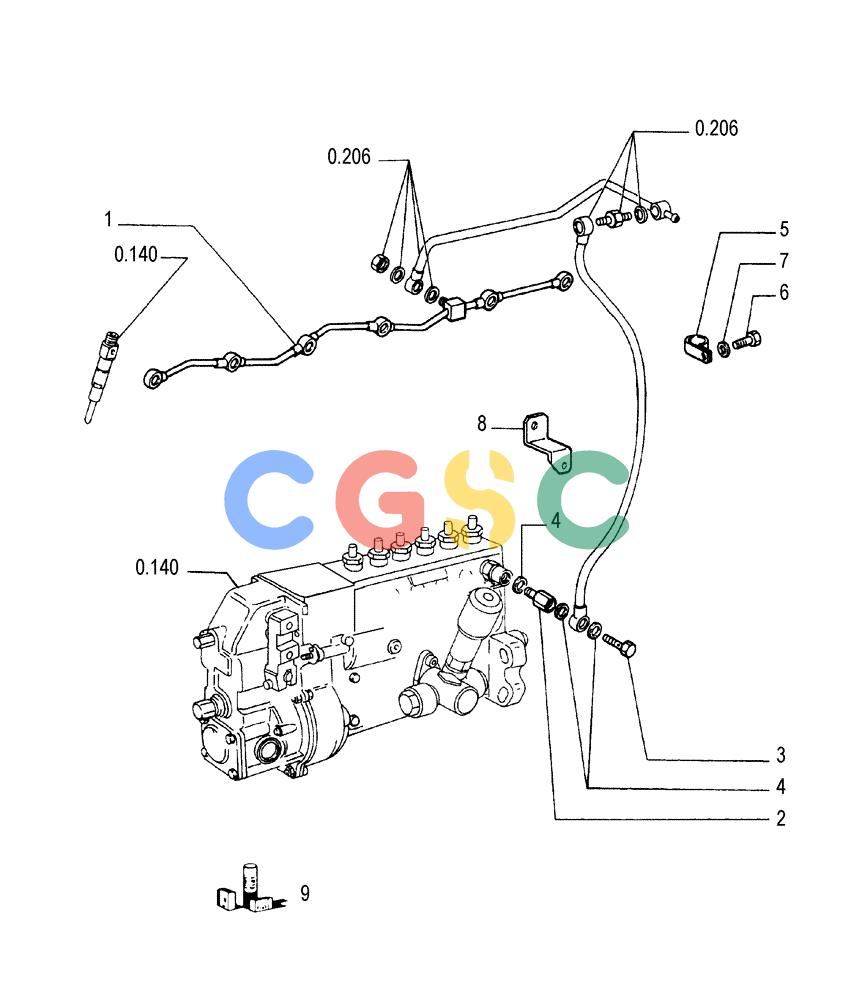

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.203[02]) - PIPING - FUEL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
517 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 98444238 | [1] | RIGID TUBE | LEC- EXHAUST |
| 2. | 16501511 | [1] | HYD CONNECTOR | ZED Superseded by part number: |
| 3. | 4864083 | [1] | BANJO BOLT,M14 x 1.5 x 30mm | TTF14X1,5 |
| 4. | 4858608 | [3] | SEAL,14mm ID x 19.50mm OD x 1.50mm Thk | TTF14X20X1,5 Superseded by part number: 2852356 |
| 5. | 17314590 | [1] | COLLAR | LEC |
| 6. | 10902224 | [1] | SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd | TTF Superseded by part number: |
| 7. | 14496404 | [1] | WASHER,M6 x 12 x 2 Thk | TTF Superseded by part number: 17094724 |
| 8. | 4860244 | [1] | BRACKET | LEC |
| 9. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
| 9. | 1940149 | [1] | ENGINE TOP GASKETS KIT | LEC |
