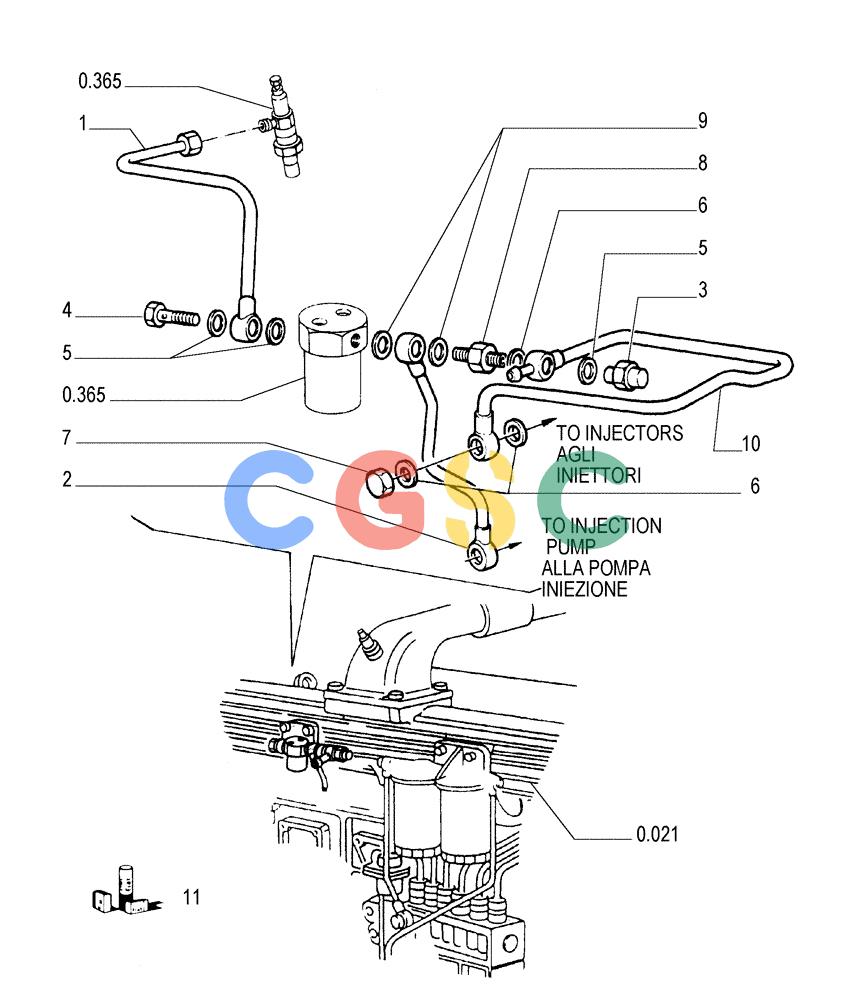

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.206[01]) - THERMOSTARTER LINES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
716 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 99452829 | [1] | RIGID TUBE | LEC |
| 2. | 99452825 | [1] | RIGID TUBE | LEC Superseded by part number: 500350140 |
| 3. | 98469450 | [1] | HYDRAULIC VALVE | LEC Superseded by part number: 500369388 |
| 4. | 4864079 | [1] | BANJO BOLT | LEC10X1 |
| 5. | 98474305 | [3] | SEALING WASHER | TORD=10 x 17 x 1.5 mm |
| 6. | 98474306 | [3] | SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk | TOR12X20X1,5 |
| 7. | 98469675 | [1] | PLUG | LEC |
| 8. | 4864083 | [1] | BANJO BOLT,M14 x 1.5 x 30mm | TTF14X1,5 |
| 9. | 98474308 | [2] | SEALING WASHER,16mm ID x 22mm OD x 1.5mm Thk | TOR14X22X1,5 |
| 10. | 99452750 | [1] | RIGID TUBE | LEC |
| 11. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
| 11. | 1940149 | [1] | ENGINE TOP GASKETS KIT | LEC |
