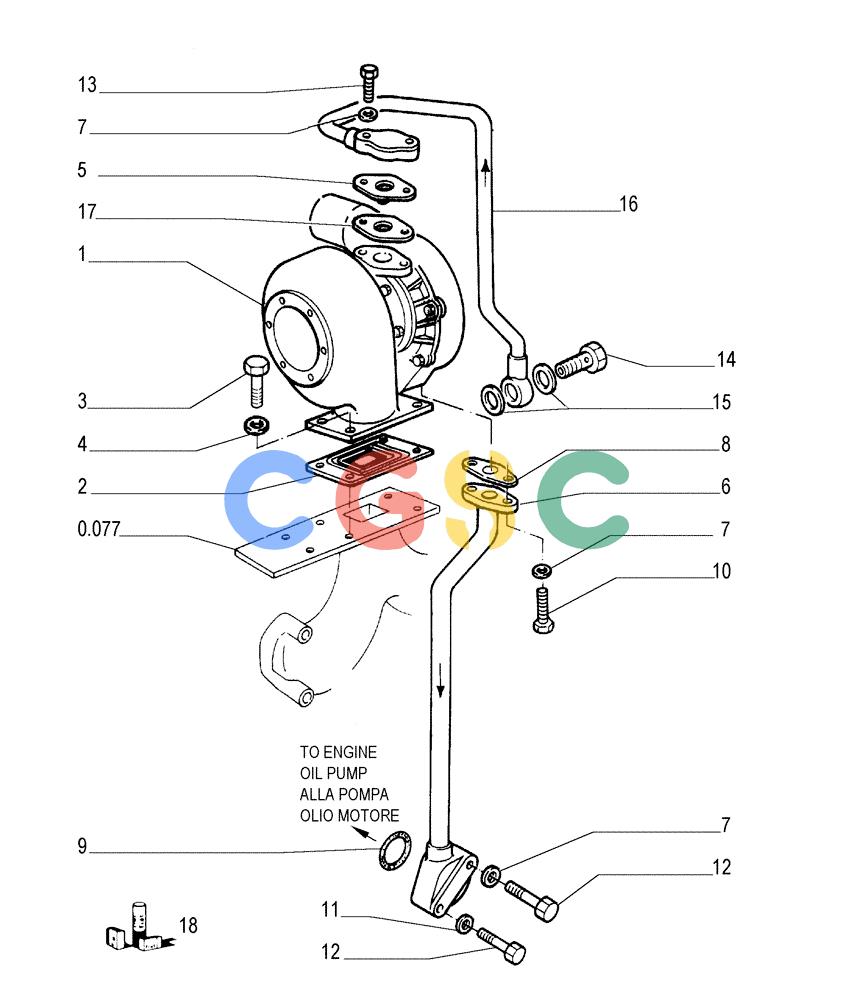

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.240[01]) - TURBOCHARGER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
333 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4852496 | [1] | TURBOCHARGER | LEC- ASSY SEE TAV.2 |
| 2. | 4853250 | [1] | GASKET | BRE |
| 3. | 98491312 | [4] | BOLT,Flng, M12 x 1.25 x 25mm | TOR10X1,25X25 |
| 4. | 12642521 | [4] | WASHER,10.2mm ID x 22mm OD x 2mm Thk | LEC |
| 5. | 98482093 | [1] | GASKET | TOR& Screen |
| 6. | 99465185 | [1] | RIGID TUBE | LECRETURN (lower) |
| 7. | 11193874 | [5] | BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 | TTF |
| 8. | 98412509 | [1] | GASKET,0.8mm Thk | TOR |
| 9. | 500308396 | [1] | GASKET | TOR |
| 10. | 16043624 | [2] | SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | TTF |
| 11. | 11190574 | [1] | BELLEVILLE WASHER,Belleville, M10.5 | TTF |
| 12. | 15970324 | [1] | SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd | TTF |
| 13. | 16043924 | [2] | BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd | TTF |
| 14. | 4864084 | [1] | BANJO BOLT | TORM16 x 1.5 Superseded by part number: 504081282 |
| 15. | 4858609 | [2] | O-RING | TTF16X22X1,5 |
| 16. | 99452403 | [1] | RIGID TUBE | LEC- DELIVERY |
| 17. | 98415922 | [1] | GASKET,0.5mm Thk | TOR |
| 18. | 1940149 | [1] | ENGINE TOP GASKETS KIT | LEC |
| 18. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
| 12. | 16043224 | [1] | BOLT,Hex, M8 x 16mm, Cl 8.8 | NH |
