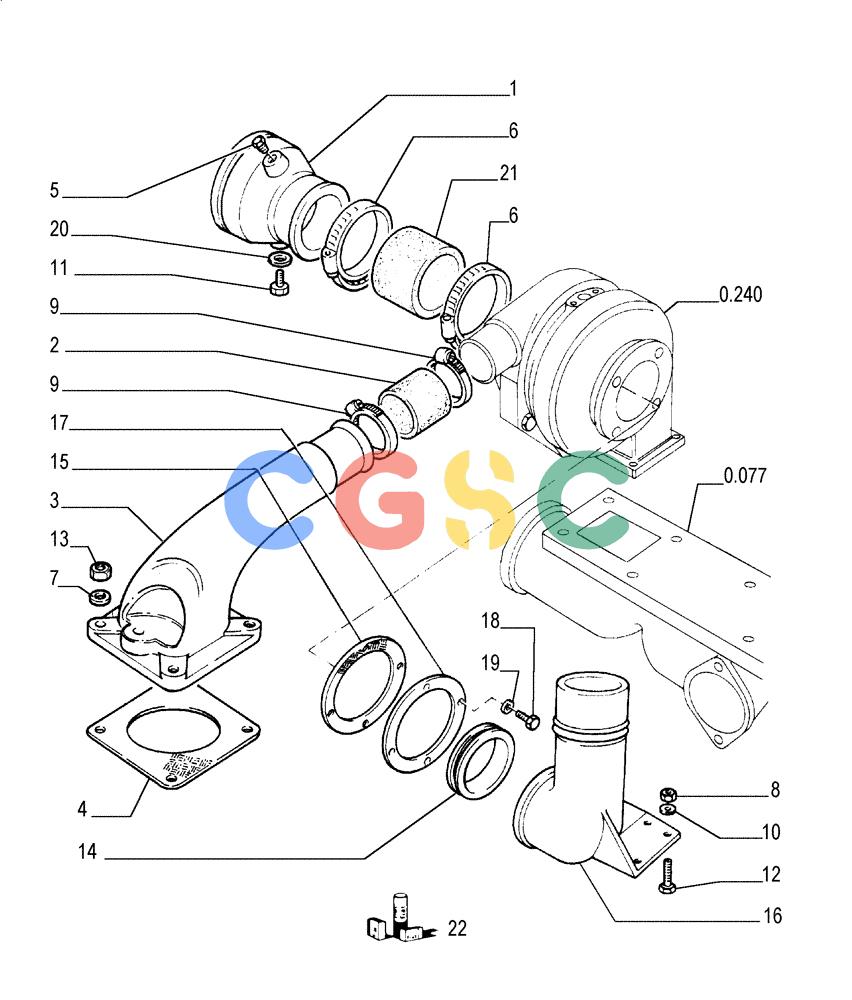

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.241[01]) - PIPING - TURBOCHARGER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
954 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4860418 | [1] | SLEEVE | TOR |
| 2. | 99444733 | [1] | HOSE | LEC |
| 3. | 99450676 | [1] | ELBOW | LEC |
| 4. | 99450480 | [1] | GASKET | LEC |
| 5. | 8105144 | [1] | PLUG | LEC |
| 6. | 99443681 | [2] | HOSE CLIP | LEC77X85 Superseded by part number: 82012731 |
| 7. | 10519624 | [4] | WASHER,8.15mm ID x 17mm OD x 2mm Thk | TOR |
| 8. | 12164721 | [3] | NUT,M10 x 1.25, Cl 10 | TTF |
| 9. | 98490783 | [2] | COLLAR | LEC57X65 Superseded by part number: 17764991 |
| 10. | 14499504 | [3] | WASHER,10.5mm ID x 18mm OD x 2mm Thk | MKT10X18X1,6 Superseded by part number: 14499521 |
| 12. | 15970931 | [3] | BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9 | LEC Superseded by part number: 15970934 |
| 13. | 16100821 | [4] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 14. | 8105211 | [1] | RING | BRE |
| 15. | 4734747 | [1] | SEAL | BRE |
| 16. | 4725095 | [1] | ELBOW | MOD |
| 17. | 8105210 | [1] | SPACER | BRE |
| 18. | 11106331 | [4] | SCREW,Hex, M10 x 1.5 x 28mm, Cl 10.9, Full Thd | LEC10X1,5X28 |
| 19. | 11190574 | [4] | BELLEVILLE WASHER,Belleville, M10.5 | TTF |
| 20. | 4858606 | [1] | SEAL,10.2mm ID x 16mm OD x 1mm Thk | TTF10X14X1 |
| 21. | 98432823 | [1] | HOSE | LEC70-60 |
| 22. | 1940149 | [1] | ENGINE TOP GASKETS KIT | LEC |
| 22. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
| 11. | 15970324 | [1] | SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd | TTF |
