纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.270[01]) - ENGINE OIL DIPSTICK New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
556 次

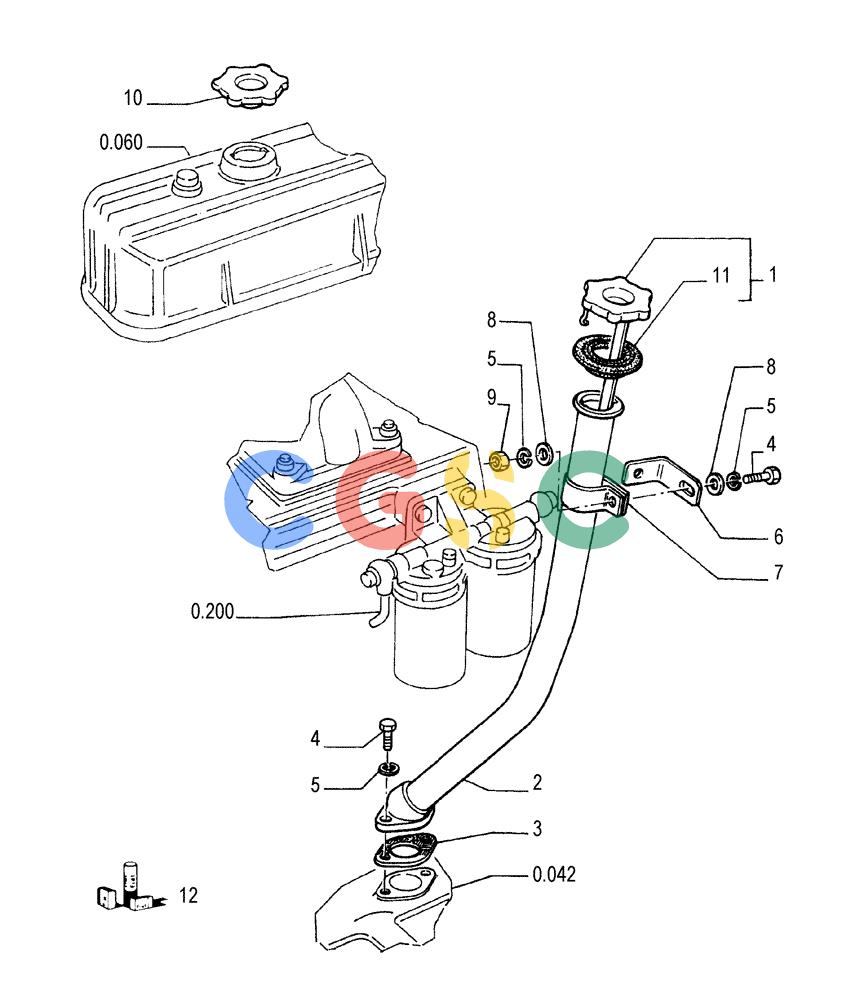

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 98440218 | [1] | DIPSTICK | LEC- ASSY |
| 2. | 98439603 | [1] | RIGID TUBE | LEC |
| 3. | 98412099 | [1] | SEAL | TOR |
| 4. | 16043824 | [3] | SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd | TTF |
| 5. | 11193874 | [4] | BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 | TTF |
| 6. | 98439969 | [1] | BRACKET | LEC |
| 7. | 4641201 | [1] | COLLAR | LEC |
| 8. | 12638501 | [2] | WASHER,8.15mm ID x 15mm OD x 1.5mm Thk | TOR Superseded by part number: 17094814 |
| 9. | 16100821 | [2] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 10. | 98418980 | [1] | PLUG | LEC |
| 11. | 4161222 | [1] | SEAL | MOD Superseded by part number: 98418978 |
| 12. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
