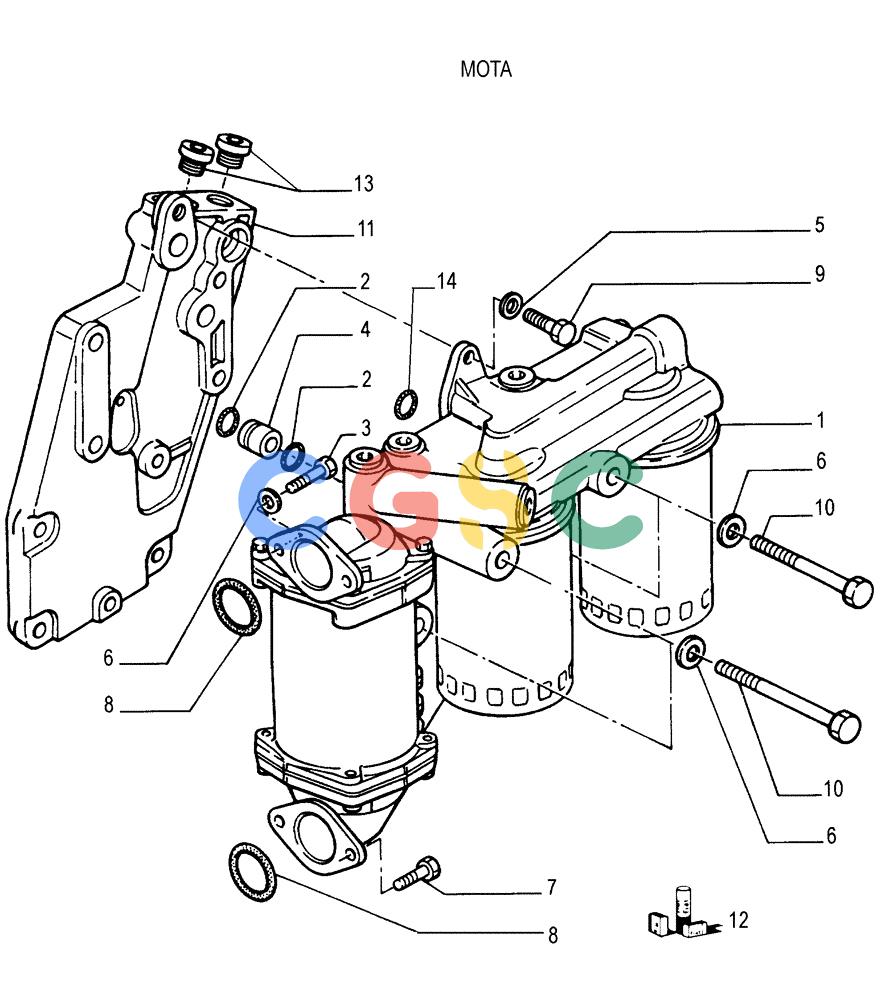

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.302[01]) - HEAT EXCHANGER - OIL FILTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
993 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 99431518 | [1] | HEAT EXCHANGER | BRE- ASSY SEE TAV.2 |
| 2. | 14453981 | [4] | O-RING,0.989" ID x 0.07" Width | TTF |
| 3. | 15540824 | [4] | SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8 | IMO |
| 4. | 4853307 | [2] | TUBE | BRELangerer & Reich |
| 5. | 12638521 | [2] | WASHER,8.15mm ID x 15mm OD x 1.5mm Thk | IMO Superseded by part number: 17094814 |
| 6. | 17095311 | [9] | WASHER | LEC12X24 |
| 7. | 15540924 | [4] | SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8 | TTF |
| 8. | 14461481 | [4] | O-RING,-156, Cl 7, 4.237" ID x .103" Thk | JES |
| 9. | 16043624 | [1] | SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | TTF |
| 10. | 15541131 | [1] | SCREW,Hex, M12 x 1.25 x 65mm, Cl 10.9 | JES |
| 10. | 15541721 | [1] | SCREW,Hex, M12 x 1.25 x 110mm, Cl 8.8 | TTF |
| 10. | 15542121 | [2] | SCREW,Hex, M12 x 1.25 x 150mm, Cl 8.8 | MKT Superseded by part number: 15542130 |
| 11. | 99431547 | [1] | BODY | LEC |
| 12. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
| 13. | 10304611 | [3] | PLUG | MKT |
| 14. | 14458081 | [2] | O-RING,1.112" ID x 0.103" Width | TTF |
