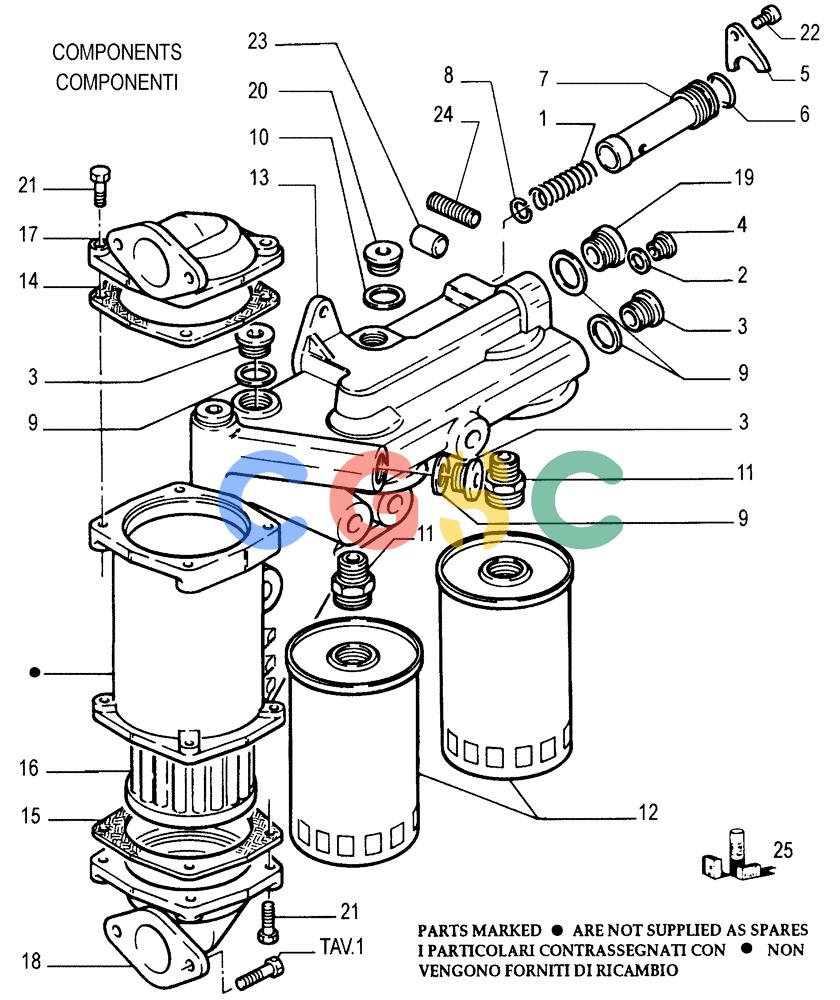

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.302[02]) - HEAT EXCHANGER - OIL FILTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
987 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 98435131 | [1] | SPRING | LEC Superseded by part number: 98435128 |
| 2. | 16508150 | [1] | WASHER | BRE |
| 3. | 4846400 | [1] | PLUG | BRE |
| 3. | 10304611 | [2] | PLUG | MKT24X1,5 |
| 4. | 16993611 | [1] | PLUG | COE |
| 5. | 4846397 | [1] | PLATE | BRE |
| 6. | 14463481 | [1] | O-RING,1.109" ID x 0.139" Width | LEC |
| 7. | 98435128 | [1] | HYDRAULIC VALVE | BRE |
| 8. | 17856476 | [1] | LOCKING RING | LEC |
| 9. | 16570750 | [6] | GASKET | BRE Superseded by part number: 16570760 |
| 10. | 16508460 | [3] | SEAL | BRE22X27X1,5 |
| 11. | 4741301 | [2] | HYD CONNECTOR | BRE |
| 12. | 1930906 | [2] | ENGINE OIL FILTER | LEC Superseded by part number: 500322702 |
| 13. | 99431547 | [1] | BODY | LEC |
| 14. | 99431654 | [1] | GASKET | BRE |
| 15. | 99431653 | [4] | SEAL,106.2mm ID x 113.26mm OD x 3.53mm Thk | BRE |
| 16. | 99431652 | [1] | INTERNAL EXCHANGE UNIT | BRE |
| 17. | 99431655 | [1] | HOUSING | BRE- UPPER |
| 18. | 99431656 | [1] | HOUSING | BRE- LOWER |
| 19. | 99433191 | [1] | PLUG | BRE |
| 20. | 10275011 | [3] | PLUG,M22 x 1.5 x 13 | JES |
| 21. | 14306524 | [8] | HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd | JES8X30 |
| 22. | 14306321 | [1] | HEX SOC SCREW,M8 x 20mm, Cl 8.8 | IMO Superseded by part number: 16707134 |
| 23. | 13582471 | [4] | THREADED INSERT | LEC |
| 24. | 17873271 | [1] | THREADED INSERT | LEC |
| 25. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
