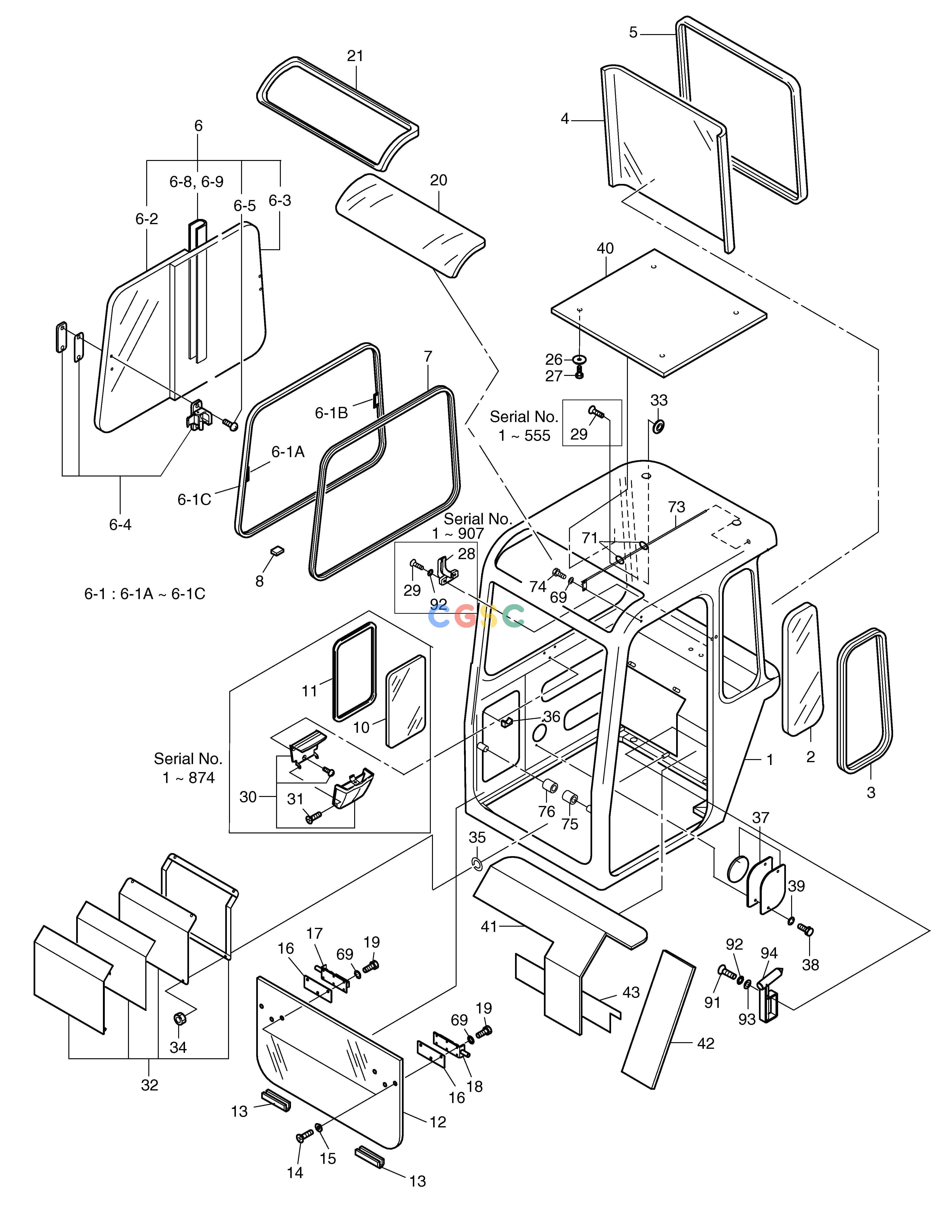

斗山零件查询CABIN(1)-OPTION(TOPS) SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
327 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2622-1484
|
[1] |
CABIN ASS'Y
|
2622-1484A
|
| -. |
2622-1484A
|
[1] |
CABIN ASS'Y
|
2622-1484H
|
| -. |
2622-1484H
|
[1] |
CABIN ASS'Y
|
2622-1484J
|
| -. |
2622-1484J
|
[1] |
CABIN ASS'Y
|
|
| -. |
2622-1484K
|
[1] |
CABIN ASS'Y
|
2622-1484L
|
| -. |
2622-1484L
|
[1] |
CABIN ASS'Y
|
2622-1484N
|
| -. |
2622-1484N
|
[1] |
CABIN ASS'Y
|
2622-1484P
|
| -. |
2622-1484P
|
[1] |
CABIN ASS'Y
|
|
| 1. |
NA00294
|
[1] |
|
|
| 10. |
2903-1203A
|
[1] |
GLASS(R.H)
|
|
| 11. |
2198-1013
|
[1] |
RUBBER;H
|
|
| 12. |
2903-1201
|
[1] |
GLASS
|
|
| 13. |
2161-2178
|
[2] |
STOPPER
|
|
| 14. |
2229-1047
|
[6] |
RETAINER
|
|
| 15. |
2180-1260
|
[6] |
PACKING
|
|
| 16. |
2180-1261
|
[2] |
SEAL
|
|
| 17. |
2125-9029
|
[1] |
LATCH(R.H.)
|
2125-9050
|
| 17. |
2125-9050
|
[1] |
LATCH(R.H)
|
|
| 18. |
2125-9030
|
[1] |
LATCH(L.H.)
|
2125-9051
|
| 18. |
2125-9051
|
[1] |
LATCH(L.H)
|
|
| 19. |
S3450823
|
[6] |
SCREW
|
|
| 2. |
2903-1222
|
[1] |
GLASS
|
|
| 20. |
2159-1168A
|
[1] |
PLATE;ROOF
|
903-00045
|
| 20. |
903-00045
|
[1] |
PLATE;ROOF
|
|
| 21. |
2198-1013
|
[1] |
RUBBER;H
|
|
| 26. |
2114-1860
|
[4] |
WASHER;CLIP
|
|
| 27. |
S3452833
|
[4] |
. SCREW M5X0.8X12
|
|
| 28. |
4150-1118
|
[1] |
HOOK
|
|
| 29. |
S3450573
|
[4] |
SCREW
|
|
| 29. |
S3450573
|
[2] |
SCREW
|
|
| 3. |
2198-1013
|
[1] |
RUBBER;H
|
|
| 30. |
2906-9006
|
[1] |
ASH TRAY
|
|
| 31. |
S3650103
|
[3] |
SCREW M4X10
|
|
| 32. |
2159-1169
|
[1] |
PLATE;ROOF
|
|
| 33. |
2160-1320
|
[1] |
GROMMET
|
|
| 34. |
S4012533
|
[4] |
NUT
|
|
| 35. |
S5102503
|
[4] |
. WASHER
|
|
| 36. |
2160-2180
|
[2] |
STOPPER
|
|
| 37. |
2621-3688
|
[1] |
COVER
|
|
| 38. |
S0504453
|
[2] |
BOLT
|
|
| 39. |
S5102303
|
[2] |
. WASHER
|
|
| 4. |
2903-1204
|
[1] |
GLASS
|
|
| 40. |
2621-3689
|
[1] |
BOARD
|
|
| 41. |
2160-1294
|
[1] |
BOARD
|
|
| 42. |
2160-1295
|
[1] |
BOARD
|
|
| 43. |
2161-2181
|
[1] |
RUBBER
|
|
| 5. |
2198-1013
|
[1] |
RUBBER;H
|
|
| 6. |
2622-1240A
|
[1] |
SASH ASS'Y
|
|
| 6. |
2622-1240B
|
[1] |
SASH ASS'Y
|
|
| 6-1. |
2622-9025
|
[1] |
SASH
|
|
| 6-1. |
2622-9031
|
[1] |
SASH
|
|
| 6-1A. |
2627-6009
|
[1] |
STOPPER
|
|
| 6-1B. |
2627-6010
|
[1] |
STOPPER
|
|
| 6-1C. |
2161-6064
|
[1] |
CHANNEL;RUN
|
|
| 6-2. |
2903-1206B
|
[1] |
GLASS
|
|
| 6-3. |
2903-1207B
|
[1] |
GLASS
|
|
| 6-4. |
2123-6120
|
[1] |
LOCK
|
|
| 6-5. |
S3450603
|
[4] |
SCREW M4X0.7X16
|
|
| 6-8. |
2622-1265
|
[1] |
BAR
|
|
| 6-9. |
2161-1041
|
[1] |
STRIP
|
|
| 69. |
S5100203
|
[8] |
WASHER
|
|
| 7. |
2161-1744
|
[1] |
RUBBER
|
|
| 71. |
2546-1002
|
[1] |
RING
|
|
| 71. |
2546-1002
|
[2] |
RING
|
|
| 73. |
2731-1021
|
[1] |
BAR
|
|
| 74. |
S3450823
|
[1] |
SCREW
|
|
| 75. |
2161-2184
|
[1] |
STOPPER
|
|
| 76. |
2161-2185
|
[1] |
STOPPER
|
|
| 8. |
2114-1838
|
[7] |
SPACER
|
|
| 91. |
S3458582
|
[2] |
SCREW M4X0.7X12
|
|
| 92. |
S5102101
|
[4] |
WASHER;SPRING M4
|
|
| 92. |
S5102101
|
[2] |
WASHER;SPRING M4
|
|
| 93. |
S5000111
|
[2] |
WASHER;PLAIN M4
|
|
| 94. |
2199-9058
|
[1] |
HAMMER
|
|
