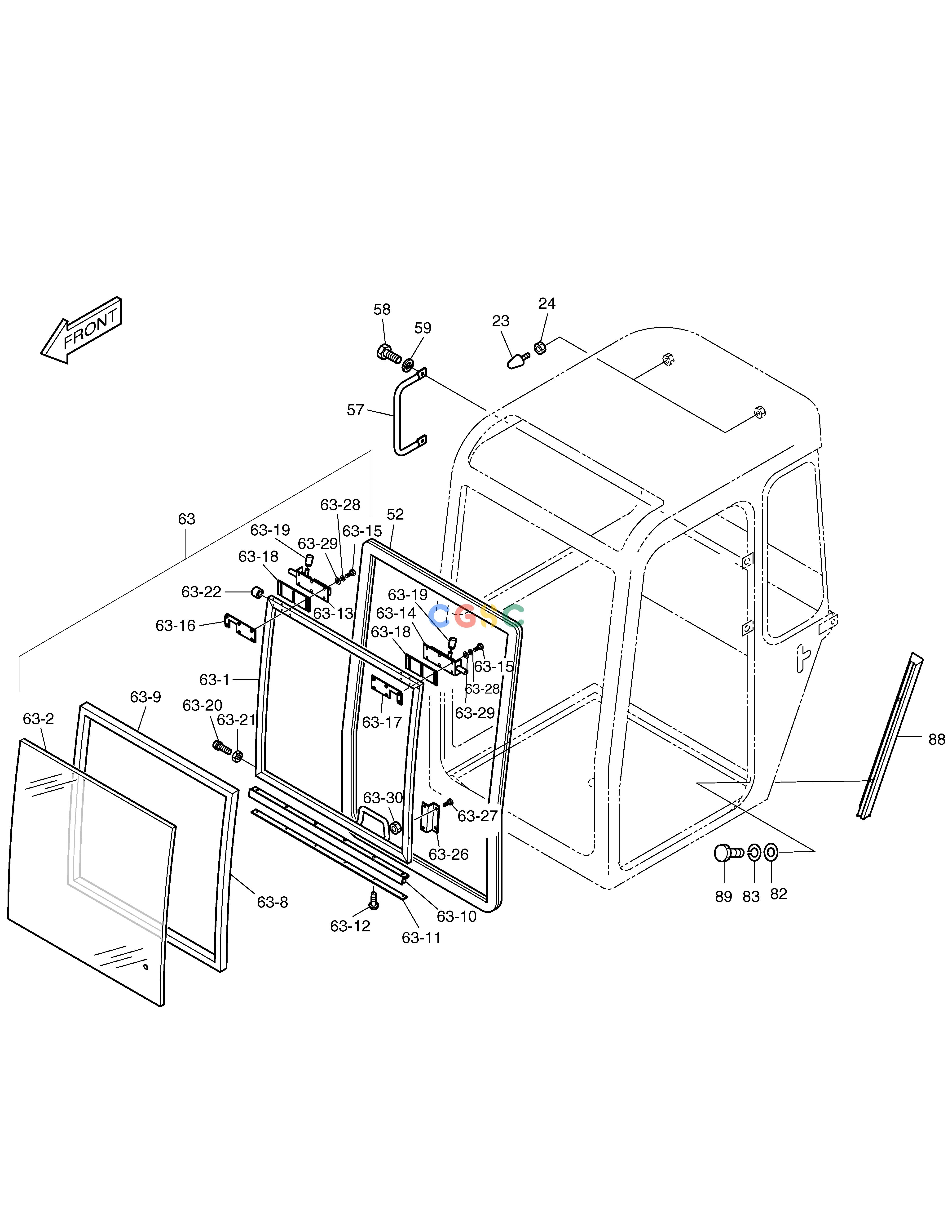

斗山零件查询CABIN(2) SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
196 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2622-6005
|
[1] |
CABIN ASS'Y
|
|
| -. |
2622-1422B
|
[1] |
CABIN ASS'Y
|
2622-1422C
|
| -. |
2622-1422C
|
[1] |
CABIN ASS'Y
|
2622-1422E
|
| -. |
2622-1422E
|
[1] |
CABIN ASS'Y
|
2622-1422L
|
| -. |
2622-1422L
|
[1] |
CABIN ASS'Y
|
2622-1422M
|
| -. |
2622-1422M
|
[1] |
CABIN ASS'Y
|
|
| -. |
2622-1422N
|
[1] |
CABIN ASS'Y
|
2622-1422P
|
| -. |
2622-1422P
|
[1] |
CABIN ASS'Y
|
2622-1422R
|
| -. |
2622-1422R
|
[1] |
CABIN ASS'Y
|
2622-1422S
|
| -. |
2622-1422S
|
[1] |
CABIN ASS'Y
|
|
| 23. |
286STP11267
|
[2] |
STOPPER
|
2161-2179
|
| 23. |
2161-2179
|
[2] |
STOPPER
|
|
| 24. |
S4054733
|
[2] |
NUT M12
|
S4012733
|
| 24. |
S4012733
|
[2] |
NUT
|
|
| 52. |
S00SEABG410
|
[1] |
RUBBER TRIM
|
2198-1061
|
| 52. |
2198-1061
|
[1] |
RUBBER;TRIM
|
|
| 57. |
G03HAN12371
|
[1] |
HANDLE
|
|
| 57. |
2172-1106
|
[1] |
HANDLE
|
|
| 57. |
2172-1130
|
[1] |
HANDLE
|
|
| 57A. |
G03HAN12368
|
[1] |
RUBBER HANDLE
|
|
| 58. |
S0511653
|
[2] |
BOLT
|
|
| 59. |
S5102603
|
[2] |
. WASHER
|
|
| 59A. |
S5010613
|
[2] |
WASHER
|
|
| 63. |
G03A0012402
|
[1] |
DOOR ASS'Y(FRONT)
|
2622-1424A
|
| 63. |
2622-1424A
|
[1] |
DOOR ASS'Y(FRONT)
|
|
| 63. |
2622-1424B
|
[1] |
FRONT DOOR ASS'Y
|
2622-1424C
|
| 63. |
2622-1424C
|
[1] |
FRONT DOOR ASS'Y
|
2622-1424E
|
| 63. |
2622-1424E
|
[1] |
DOOR ASS'Y(FRONT)
|
|
| 63-1. |
2622-1419
|
[1] |
DOOR (FRONT)
|
|
| 63-1. |
G03E0160291
|
[1] |
DOOR (FRONT)
|
|
| 63-10. |
G03SEA12382
|
[1] |
SEAL
|
2161-2187
|
| 63-10. |
2161-2187
|
[1] |
SEAL
|
|
| 63-11. |
G03PLA60320
|
[1] |
PLATE
|
2621-3694
|
| 63-11. |
2621-3694
|
[1] |
PLATE
|
|
| 63-12. |
S3450563
|
[6] |
SCREW M4X0.7X8
|
|
| 63-13. |
G03LAT12392
|
[1] |
LATCH(R.H)
|
2125-9029
|
| 63-13. |
2125-9029
|
[1] |
LATCH(R.H.)
|
2125-9050
|
| 63-13. |
2125-9050
|
[1] |
LATCH(R.H)
|
|
| 63-14. |
G03LAT12391
|
[1] |
LATCH(L.H)
|
2125-9030
|
| 63-14. |
2125-9030
|
[1] |
LATCH(L.H.)
|
2125-9051
|
| 63-14. |
2125-9051
|
[1] |
LATCH(L.H)
|
|
| 63-15. |
S0503153
|
[12] |
BOLT M5X0.8X16
|
|
| 63-15. |
S2204663
|
[12] |
BOLT M6X1.0X16
|
|
| 63-16. |
G03PLA60321
|
[1] |
PLATE(R.H)
|
2891-1247
|
| 63-16. |
2891-1247
|
[1] |
PLATE(R.H)
|
|
| 63-17. |
G03PLA60322
|
[1] |
PLATE(L.H)
|
2891-1236
|
| 63-17. |
2891-1236
|
[1] |
PLATE(L.H)
|
|
| 63-18. |
2B6SHM11309
|
[2] |
SHIM
|
2114-1842
|
| 63-18. |
2114-1842
|
[2] |
SHIM
|
|
| 63-19. |
2B6C0V11310
|
[2] |
COVER
|
2160-1307
|
| 63-19. |
2160-1307
|
[2] |
CAP;RUBBER
|
|
| 63-2. |
G03GLA12381
|
[1] |
GLASS (FRONT)
|
2903-1200B
|
| 63-2. |
2903-1200B
|
[1] |
GLASS
|
|
| 63-20. |
S16STP10168
|
[1] |
STOPPER
|
2161-2188
|
| 63-20. |
2161-2188
|
[1] |
STOPPER
|
|
| 63-21. |
S4054633
|
[1] |
NUT M10
|
S4012633
|
| 63-21. |
S4012633
|
[1] |
NUT
|
|
| 63-22. |
2154-1031A
|
[4] |
ROLLER
|
|
| 63-26. |
2891-1354A
|
[1] |
PLATE
|
|
| 63-27. |
S3452823
|
[2] |
SCREW M5X0.8X10
|
|
| 63-28. |
S5100203
|
[12] |
WASHER
|
|
| 63-29. |
S5000213
|
[12] |
. WASHER
|
|
| 63-30. |
S4012233
|
[2] |
NUT
|
|
| 63-8. |
S00DAME
|
[1] |
SPACER ASS'Y
|
|
| 63-8. |
2161-2254
|
[2] |
DAMPER
|
|
| 63-9. |
2161-2254
|
[2] |
DAMPER
|
|
| 82. |
S5010313
|
[2] |
WASHER
|
|
| 83. |
S5102303
|
[2] |
. WASHER
|
|
| 88. |
2114-1836
|
[1] |
SPACER
|
|
| 89. |
S0504453
|
[2] |
BOLT
|
|
