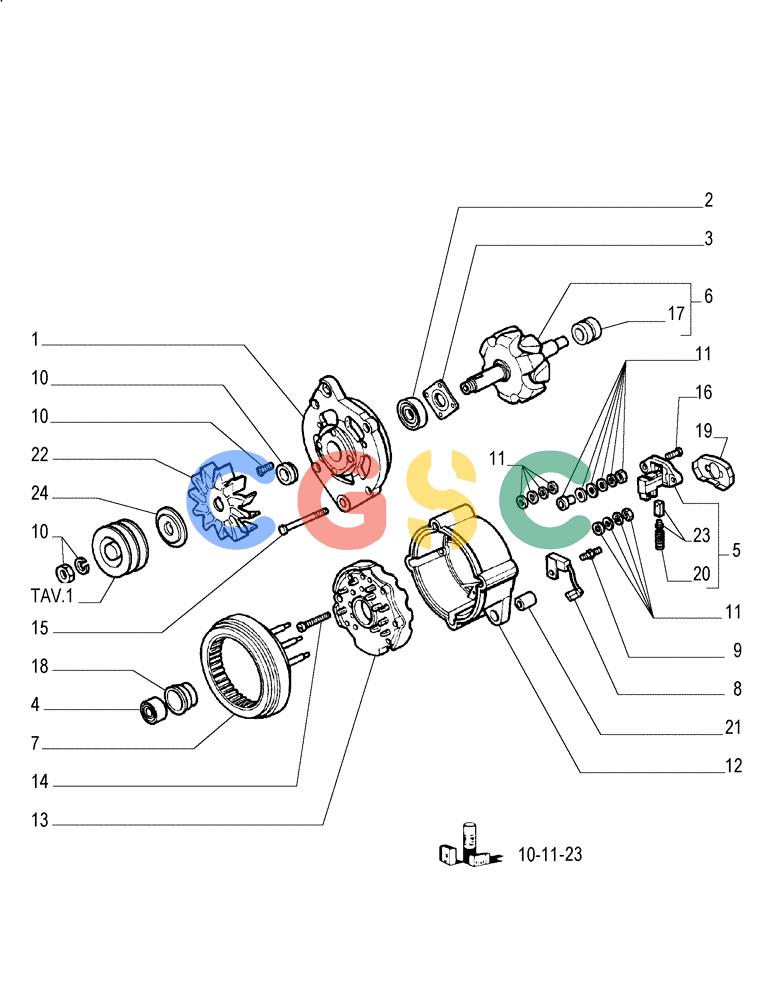

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.400[02]) - ALTERNATOR (BOSCH) - COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
582 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 98419035 | [1] | ALTERNATOR | LEC Superseded by part number: 99461190 |
| 2. | 9968892 | [1] | BEARING ASSY | LEC Superseded by part number: 9968825 |
| 3. | 9969402 | [1] | PLATE | TOR Superseded by part number: 3078379R1 |
| 4. | 9968895 | [1] | BEARING ASSY | LEC |
| 5. | 9968900 | [1] | VOLTAGE REGULATOR | LEC- ASSY |
| 6. | 9970086 | [1] | ROTOR | LEC- ASSY Superseded by part number: 9968893 |
| 7. | 79074705 | [1] | ALTERNATOR STATOR | LEC |
| 8. | 3079134R1 | [1] | CAPACITOR | IH |
| 9. | 9968904 | [1] | PIN | LEC |
| 10. | 1307188 | [1] | KIT | TOR |
| 11. | 9970087 | [1] | KIT | LEC Superseded by part number: 9968907 |
| 12. | 9968896 | [1] | SUPPORT | LEC Superseded by part number: 87735076 |
| . . | 87735076R | [1] | REMAN-ALTERNATOR | LECFD175 (N.A. VERSION)(S/N 061640 & AFTER) (1/93-), Reman for new PN 9968896 |
| . . | 87735076C | [1] | CORE-ALTERNATOR | LECReturn Number |
| 13. | 9968897 | [1] | RECTIFIER | LEC |
| 14. | 9968905 | [5] | SCREW | LEC |
| 15. | 9968903 | [4] | SCREW | LEC Superseded by part number: 9968832 |
| 16. | 9968831 | [2] | SCREW | BRE |
| 17. | 9968894 | [1] | RING | LEC |
| 18. | 9968898 | [1] | RING NUT | LEC Superseded by part number: 86578492 |
| 19. | 9968899 | [1] | PROTECTION CAP | LEC |
| 20. | 42491524 | [2] | SPRING | MOD |
| 21. | 9939749 | [1] | BUSHING | BRE Superseded by part number: 42531171 |
| 22. | 80458627 | [1] | FAN | ZED |
| 23. | 9968902 | [1] | KIT | LEC Superseded by part number: 9939709 |
| 24. | 98454596 | [1] | SPACER | LEC |
