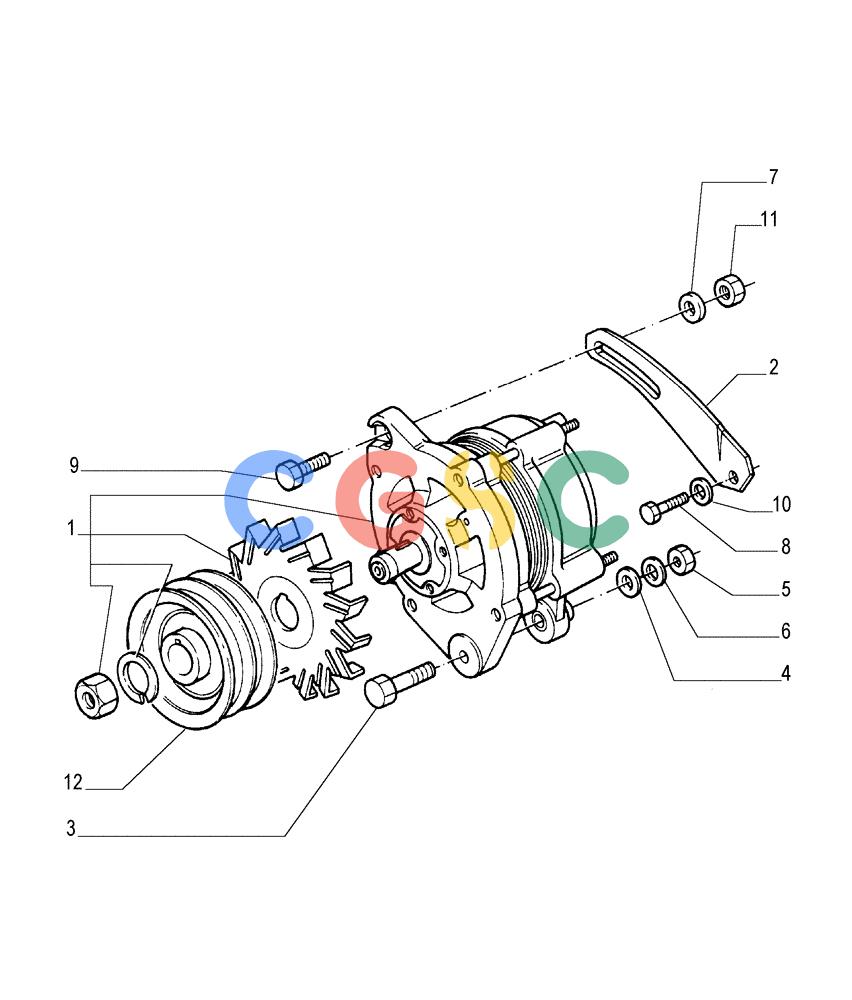

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 99461190 | [1] | ALTERNATOR | LEC- ASSY SEE TAV.2 Superseded by part number: 98419035 |
| . . | 99461190R | [1] | REMAN-ALTERNATOR | LECREMANUFACTURED 24 VOLT, 55 AMP ALTERNATOR - NA Only Superseded by part number: 87735076R |
| . . | 99461190C | [1] | CORE-ALTERNATOR | LECReturn Number,24 VOLT, 55 AMP ALTERNATOR - NA Only |
| . . | 87735076R | [1] | REMAN-ALTERNATOR | LECFD175 (S/N 061640 & AFTER) (1/93-), Reman for new PN 99461190 |
| . . | 87735076C | [1] | CORE-ALTERNATOR | LECReturn Number |
| 2. | 99450202 | [1] | BELT TENSIONER | LEC |
| 3. | 15541924 | [1] | SCREW,Hex, M12 x 1.25 x 130mm, Cl 8.8 | TOR12X1,25X130 Superseded by part number: 15541921 |
| 4. | 12646904 | [1] | WASHER,12.2mm ID x 28mm OD x 3mm Thk | FOR Superseded by part number: 12646924 |
| 5. | 16101521 | [1] | NUT,M12 x 1.25, Cl 10 | ZED Superseded by part number: |
| 6. | 11190774 | [1] | BELLEVILLE WASHER,13.00mm ID x 24.00mm OD x 2.80mm, 3.30mm, Cl 8.8, DAC | TTF |
| 7. | 11190574 | [1] | BELLEVILLE WASHER,Belleville, M10.5 | TTF |
| 10. | 12642521 | [1] | WASHER,10.2mm ID x 22mm OD x 2mm Thk | LEC |
| 11. | 14048721 | [1] | NUT,M10 x 1.25, Cl 10 | MOD Superseded by part number: |
| 12. | 98454695 | [1] | PULLEY | LEC |
| 8. | 15970924 | [1] | SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8 | TTF Superseded by part number: 16204524 |
| 9. | 11306924 | [1] | BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd | TTF |
