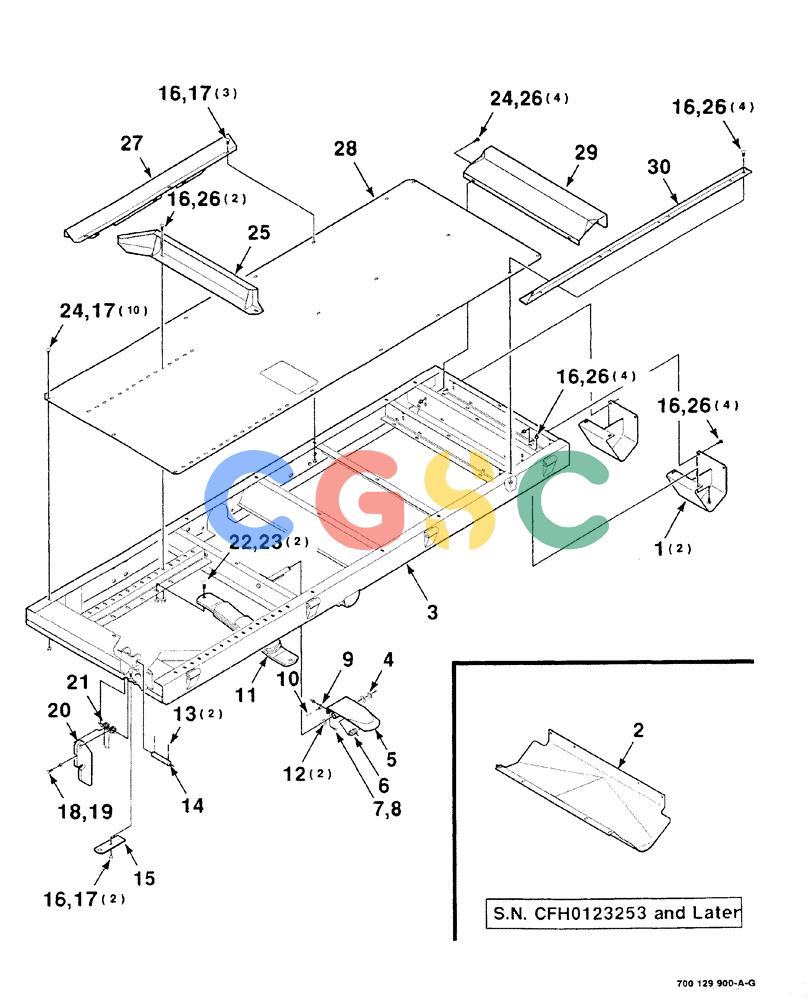

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (10-006) - CART ASSEMBLY (LEFT) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
260 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700129455
|
[2] |
SHOE
|
CAS
WA skid
|
| 2. |
700150764
|
[1] |
SKID/SHOE
|
HFI
WA
|
| 3. |
700129902
|
[1] |
FRAME
|
HFI
sidecart, wa left
|
| 4. |
100-1675
|
[1] |
SNAP RING,#75, Ext
|
CAS
Superseded by part number: 9449
|
| 5. |
700129458
|
[1] |
PADDLE
|
CAS
WA
|
| 6. |
700716833
|
[1] |
SPRING
|
CAS
torsion
|
| 7. |
434-412
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5
|
CAS
1/4-20 x 3/4 RHSNB Superseded by part number: 280638
|
| 8. |
1703354
|
[1] |
NUT
|
IH
1/4-20 HFTLN GR/G
|
| 9. |
751321
|
[1] |
CLAMP
|
CAS
line, 1/4" Superseded by part number: 80272535
|
| 10. |
700706340
|
[1] |
MAGNET
|
CAS
|
| 11. |
700129945
|
[1] |
BAR
|
CAS
WA weight
|
| 12. |
95-81182
|
[2] |
WASHER,0.81" ID x 1.25" OD x 0.07" Thk
|
CAS
3/4 x 14 gauge NRMB
|
| 13. |
432-1224
|
[2] |
COTTER PIN,3/16" x 1-1/2"
|
CAS
Superseded by part number: 80754
|
| 14. |
6810667
|
[1] |
PIN
|
CAS
|
| 15. |
700129454
|
[1] |
BRACKET
|
CAS
spring
|
| 16. |
434-616
|
[19] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 x 1 RHSNB Superseded by part number: 80280503
|
| 17. |
232-5316
|
[15] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 18. |
873083
|
[1] |
SCREW
|
CAS
3/8-16 x 1-1/2 FT C
|
| 19. |
425-106
|
[1] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 20. |
700113846
|
[1] |
LATCH
|
CAS
cart, side
|
| 21. |
7758956
|
[1] |
SPRING
|
CAS
torsion
|
| 22. |
433-820
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 87868
|
| 23. |
231-5348
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 24. |
433-612
|
[14] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 25. |
700129920
|
[1] |
STOP
|
CAS
WA bale, right
|
| 26. |
329-286
|
[18] |
FLANGE NUT,Flg, 3/8"-16, G8
|
CAS
|
| 27. |
700129941
|
[1] |
CHANNEL
|
CAS
stop bale, left
|
| 27. |
700129944
|
[1] |
ANGLE
|
HFI
stop bale, left (without wings)
|
| 28. |
700129918
|
[1] |
FLOOR
|
CAS
CART, left
|
| 29. |
700129954
|
[1] |
STOP
|
CAS
bale, rear
|
| 30. |
700134591
|
[1] |
CHANNEL
|
CAS
WA retainer
|
