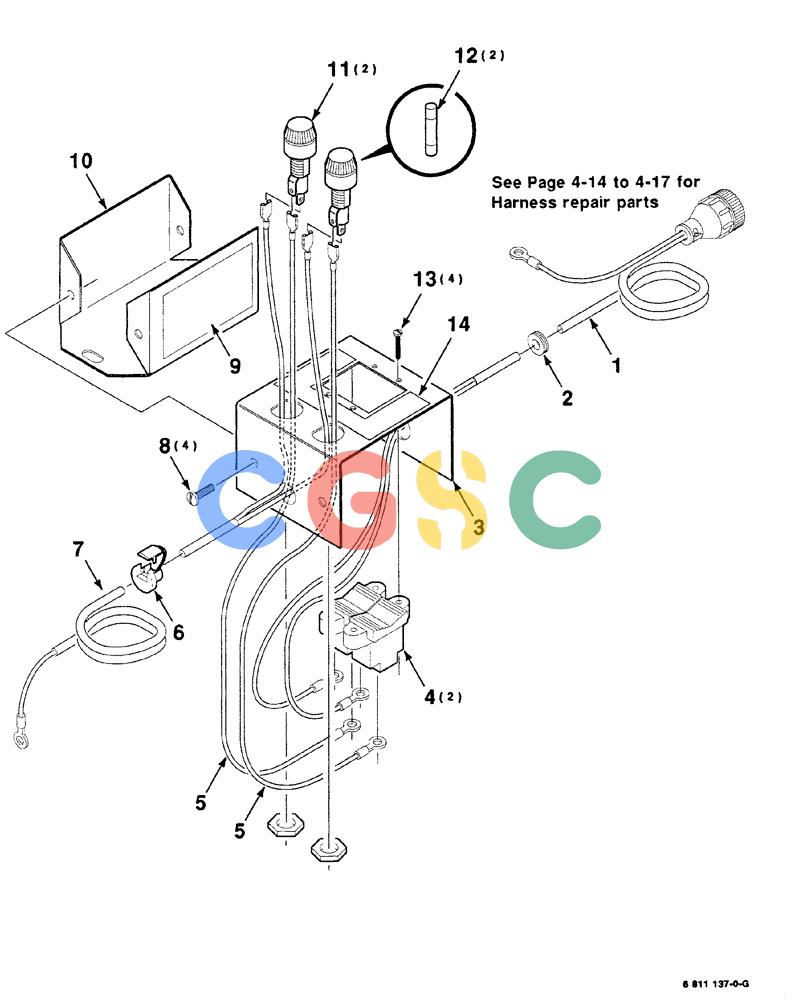

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (10-004) - ELECTRICAL CONTROL BOX ASSEMBLY, 6811137 ELECTRICAL CONTROL BOX ASSEMBLY COMPLETE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
663 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700706486
|
[1] |
WIRE HARNESS
|
CAS
CABLE
|
| 2. |
248-2375
|
[1] |
GROMMET,5/8" ID x 7/8" Groove Dia, Str Cut
|
CAS
GROMMET rubber Superseded by part number: 87353491
|
| 3. |
6811145
|
[1] |
TOP
|
CAS
BOX control
|
| 4. |
8798159
|
[2] |
SWITCH
|
CAS
rocker
|
| 5. |
8798167
|
[2] |
ELECTRICAL WIRE
|
CAS
WIRE electrical
|
| 6. |
700708341
|
[1] |
BUSHING
|
CAS
WIRE, STRAIN
|
| 7. |
700706485
|
[1] |
WIRE HARNESS
|
CAS
WIRE
|
| 8. |
19-1027
|
[4] |
SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"
|
CAS
#8-18 x 1/2 CRTHTFTS
|
| 9. |
8888224
|
[1] |
DECAL
|
CAS
notice, red
|
| 10. |
6811152
|
[1] |
BOTTOM
|
CAS
BOX, control
|
| 11. |
376852R91
|
[2] |
HOUSING
|
IH
holder fuse Superseded by part number: 578489
|
| 12. |
8025645
|
[2] |
FUSE
|
CAS
30 AMP, (slow blow) Superseded by part number: 86600094
|
| 13. |
70-30616
|
[4] |
SCREW,Slotted Pan Hd, #6-32 x 1"
|
CAS
#6-32 x 1 SRHMS
|
| 14. |
7179336
|
[1] |
DECAL
|
CAS
|
