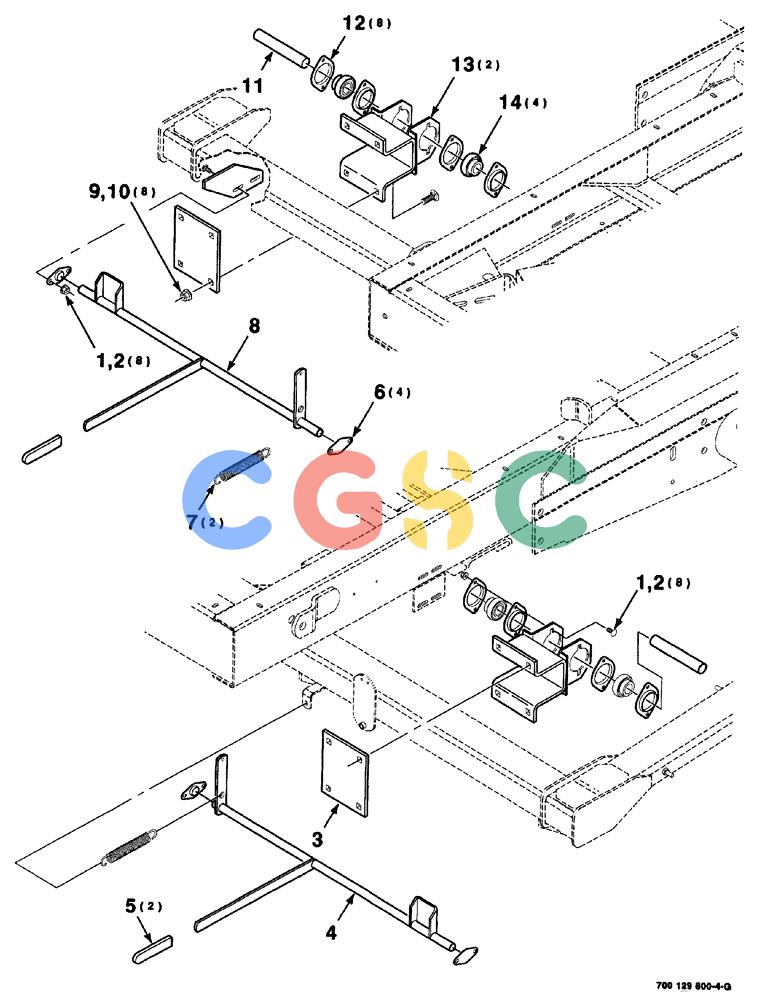

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (10-010) - CART ASSEMBLY (UNLATCHING) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
125 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
433-512
|
[16] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 2. |
232-5315
|
[16] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GRIG
|
| 3. |
700113784
|
[1] |
COVER PLATE
|
CAS
CLAMP Superseded by part number: 700113781
|
| 4. |
700134595
|
[1] |
ARM
|
CAS
WA unlatch, left
|
| 5. |
827360
|
[2] |
HANDLE
|
CAS
GRIP
|
| 6. |
A63366
|
[4] |
SPHERICAL BEARING,19mm ID
|
CAS
ASSEMBLY
|
| 7. |
58941
|
[2] |
SPRING
|
CAS
extension
|
| 8. |
700134596
|
[1] |
ARM
|
CAS
WA unlatch, right
|
| 9. |
433-824
|
[8] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
CAS
Superseded by part number: 280420, 72187237
|
| 10. |
231-5348
|
[8] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 11. |
6810808
|
[1] |
SHAFT
|
CAS
|
| 12. |
50591
|
[8] |
FLANGE,52mm
|
IH
BEARING Superseded by part number: 86548974
|
| 13. |
700113763
|
[2] |
SUPPORT
|
CAS
WA
|
| 14. |
50302
|
[4] |
SPHERICAL BEARING,25.4 mm ID x 52 mm OD x 30.96 mm
|
CAS
spherical Superseded by part number: 204807C91, 47577183
|
