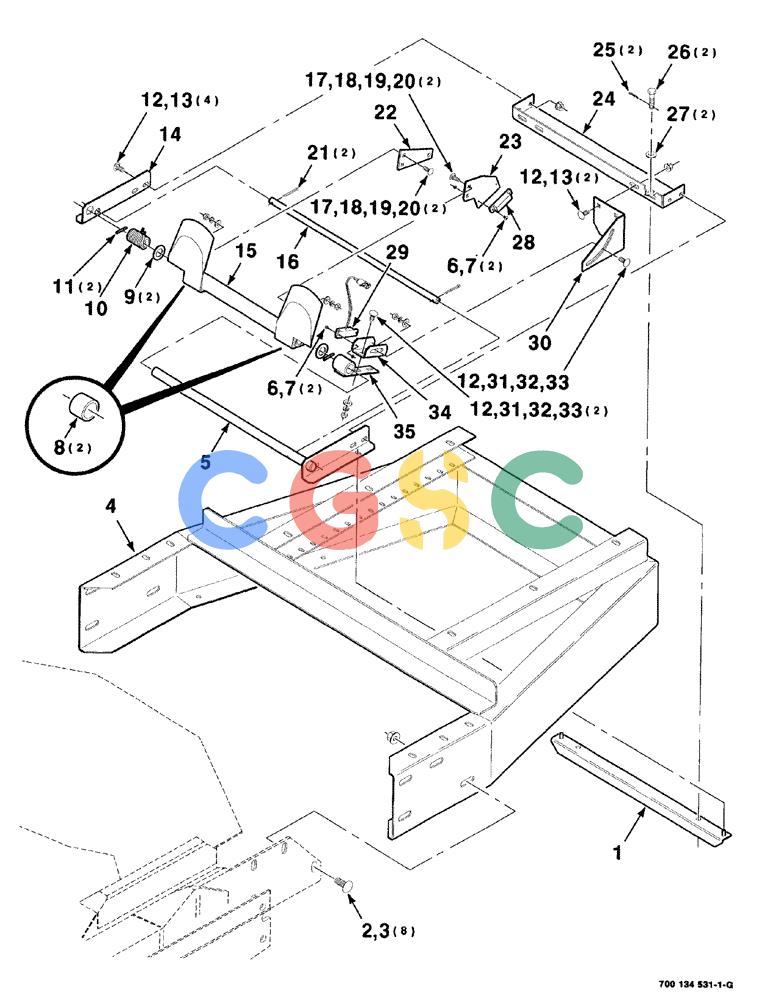

| 1. |
700134565
|
[1] |
ANGLE
|
CAS
WA PADDLE
|
| 2. |
433-820
|
[8] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 87868
|
| 3. |
231-5348
|
[8] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 4. |
700134532
|
[1] |
FUNNEL
|
CAS
FRAME WA rear
|
| 5. |
700134539
|
[1] |
MOUNTING PARTS
|
CAS
WA PADDLE mounting, rear
|
| 6. |
440-1068
|
[4] |
SCREW,Cross Pan Hd, #6-32 x 1/2"
|
CAS
GR60M Superseded by part number: 281007
|
| 7. |
225-14106
|
[4] |
NUT,#6-32
|
CAS
Superseded by part number: 88458, 87779111
|
| 8. |
700715630
|
[2] |
BRONZE BUSHING
|
CAS
|
| 9. |
95-81182
|
[2] |
WASHER,0.81" ID x 1.25" OD x 0.07" Thk
|
CAS
3/4 x 14 gauge NRMB
|
| 10. |
700716833
|
[1] |
SPRING
|
CAS
torsion
|
| 11. |
38-31016
|
[2] |
PIN,5/32" x 1", Coiled
|
CAS
Superseded by part number: 280634
|
| 12. |
433-512
|
[9] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 13. |
232-5315
|
[6] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 14. |
700134542
|
[1] |
ANGLE
|
CAS
mounting, right, rear
|
| 15. |
700134548
|
[1] |
PADDLE
|
CAS
ASSEMBLY rear, Includes: Ref. 8
|
| 16. |
700134560
|
[1] |
SHAFT
|
CAS
stop, rear
|
| 17. |
434-412
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5
|
CAS
1/4-20 x 3/4 RHSNB Superseded by part number: 280638
|
| 18. |
496-11028
|
[4] |
WASHER,9/32" x 5/8" x .065, HDN
|
CAS
hardened plain, 1/4 Superseded by part number: 86632587
|
| 19. |
492-11025
|
[4] |
LOCK WASHER,1/4"
|
CAS
Superseded by part number: 72187247, 80682
|
| 20. |
425-104
|
[4] |
NUT,1/4"-20, Cl 5
|
CAS
Superseded by part number: 7770, 72187220
|
| 21. |
432-1220
|
[2] |
COTTER PIN,3/16" x 1 1/4"
|
CAS
Superseded by part number: 87398
|
| 22. |
700134559
|
[1] |
STRAP
|
CAS
STRAP mounting, link
|
| 23. |
700134557
|
[1] |
SUPPORT
|
CAS
actuator
|
| 24. |
700134538
|
[1] |
ANGLE
|
CAS
ANGLE support, paddle
|
| 25. |
62034
|
[2] |
BATTERY
|
IH
PIN cotter, 3/32 x 3/4
|
| 26. |
700111557
|
[2] |
SCREW
|
HFI
special
|
| 27. |
496-11041
|
[2] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
hardened plain, 3/8 Superseded by part number: 86632588
|
| 28. |
700709996
|
[1] |
SWITCH
|
IH
actuator
|
| 29. |
700710208
|
[1] |
ROTARY SWITCH
|
L
|
| 30. |
700134564
|
[1] |
ANGLE
|
CAS
adjustment, switch
|
| 31. |
496-21034
|
[3] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 32. |
492-11031
|
[3] |
LOCK WASHER,5/16"
|
CAS
Superseded by part number: 83990583
|
| 33. |
425-105
|
[3] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 34. |
700134558
|
[1] |
SUPPORT
|
CAS
switch
|
| 35. |
700134562
|
[1] |
MOUNTING PARTS
|
CAS
WA switch
|
