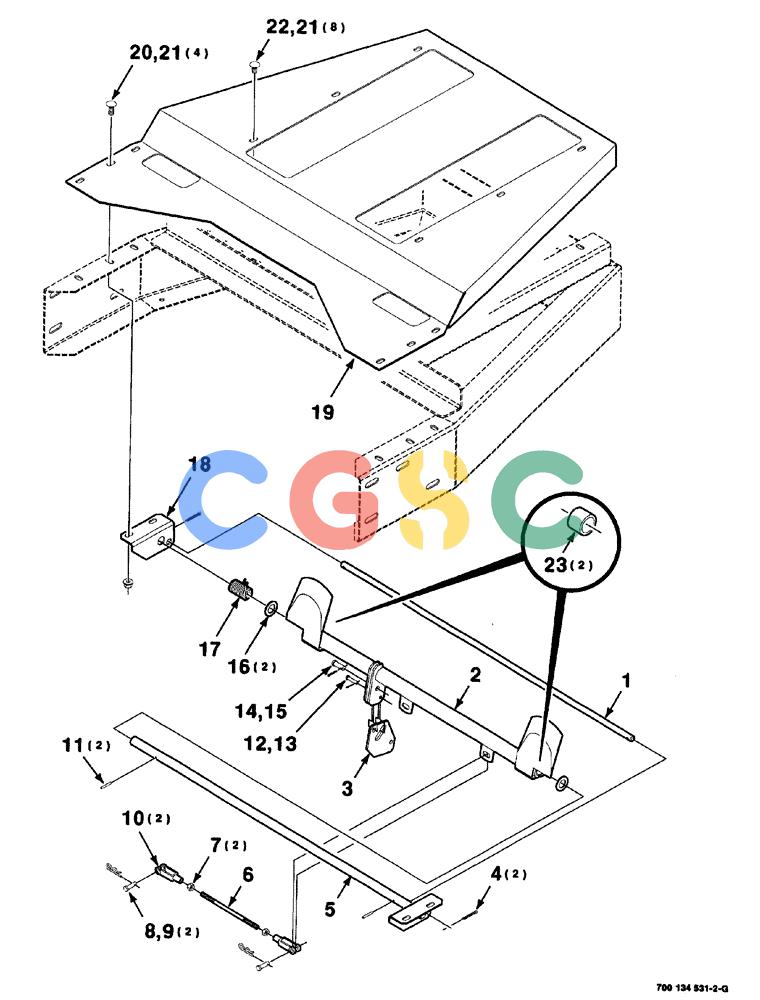

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (10-018) - FRAME SHIELD AND PADDLE ASSEMBLY (REAR) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
351 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700134561
|
[1] |
SHAFT
|
CAS
stop, front
|
| 2. |
700134554
|
[1] |
PADDLE
|
CAS
ASSEMBLY front, Includes: Ref. 23
|
| 3. |
700134568
|
[1] |
ARM
|
CAS
lever
|
| 4. |
432-1220
|
[2] |
COTTER PIN,3/16" x 1 1/4"
|
CAS
Superseded by part number: 87398
|
| 5. |
700134543
|
[1] |
MOUNTING PARTS
|
CAS
WA PADDLE, front
|
| 6. |
700134567
|
[1] |
ROD
|
CAS
LINK, paddle
|
| 7. |
425-115
|
[2] |
NUT,5/16"-24, G5
|
CAS
Superseded by part number: 86629539
|
| 8. |
427-5112
|
[2] |
CLEVIS PIN,5/16" x 1 1/8"
|
CAS
clevis, 5/16 x 1
|
| 9. |
407209R1
|
[2] |
CLIP
|
CAS
wire hairpin cotton, .091
|
| 10. |
66498
|
[2] |
CLEVIS
|
CAS
|
| 11. |
38-31016
|
[2] |
PIN,5/32" x 1", Coiled
|
CAS
Superseded by part number: 280634
|
| 12. |
A8823
|
[1] |
PIN,6.29mm OD x 26.99mm L
|
CAS
clevis, 1/4 x 1
|
| 13. |
62034
|
[1] |
BATTERY
|
IH
PIN cotter, 3/32 x 3/4
|
| 14. |
427-6106
|
[1] |
CLEVIS PIN,9.53mm OD x 26.92mm L
|
CAS
Superseded by part number: 510390
|
| 15. |
432-1012
|
[1] |
COTTER PIN,5/32" x 3/4"
|
CAS
5/32" x 3/4"
|
| 16. |
95-81182
|
[2] |
WASHER,0.81" ID x 1.25" OD x 0.07" Thk
|
CAS
3/4 x 14 gauge NRMB
|
| 17. |
700716833
|
[1] |
SPRING
|
CAS
torsion
|
| 18. |
700134547
|
[1] |
ANGLE
|
CAS
mounting, right, front
|
| 19. |
700134537
|
[1] |
FLOOR
|
CAS
rear
|
| 20. |
434-616
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 x 1 RHSNB Superseded by part number: 80280503
|
| 21. |
232-5316
|
[12] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 22. |
433-612
|
[8] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 23. |
700715630
|
[2] |
BRONZE BUSHING
|
CAS
|
