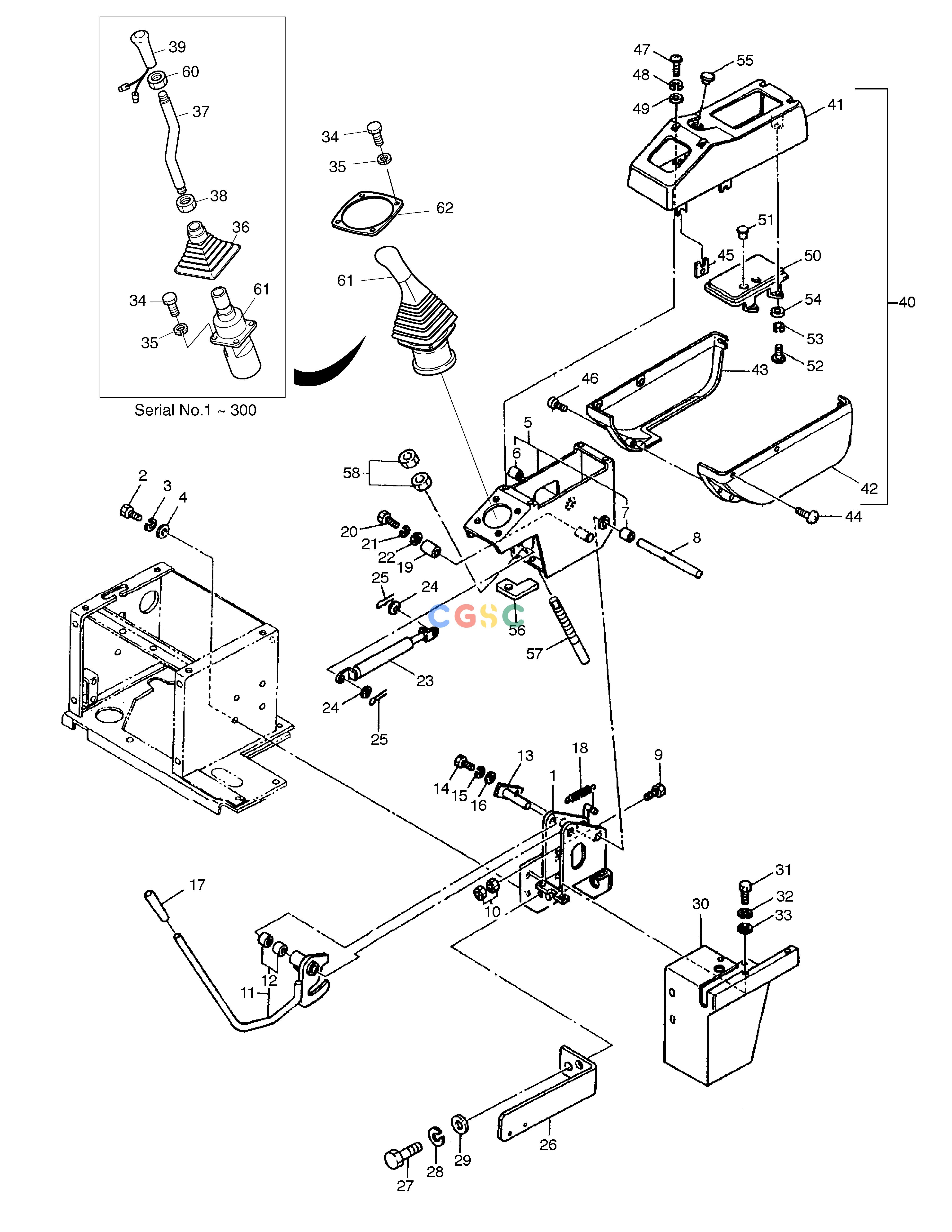

斗山零件查询CONTROL SYSTEM(2) SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
822 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2133-7043
|
[-] |
CONTROL LEVER
|
|
| 1. |
2197-1212
|
[1] |
BRACKET;STAND(D)
|
2197-1212A
|
| 1. |
2197-1212A
|
[1] |
BRACKET;STAND(D)
|
|
| 10. |
S4012333
|
[2] |
NUT
|
|
| 11. |
2133-1978
|
[1] |
LEVER;LOCK(L)
|
2133-1978A
|
| 11. |
2133-1978A
|
[1] |
LEVER;LOCK(L)
|
|
| 12. |
2110-1184D39
|
[2] |
BUSH 23/20-25L
|
|
| 13. |
2112-1217
|
[1] |
SHAFT
|
|
| 14. |
S0509053
|
[1] |
. BOLT
|
|
| 14. |
S0508653
|
[1] |
BOLT
|
|
| 15. |
S5102503
|
[1] |
. WASHER
|
|
| 16. |
S5010513
|
[1] |
WASHER
|
|
| 17. |
870-00008
|
[1] |
GRIP
|
|
| 18. |
2129-1427
|
[1] |
SPRING;RETURN
|
|
| 19. |
2114-1746
|
[1] |
COLLAR
|
|
| 2. |
S0508853
|
[4] |
. BOLT
|
|
| 2. |
S0509053
|
[4] |
. BOLT
|
|
| 20. |
S0508653
|
[1] |
BOLT
|
|
| 21. |
S5102503
|
[1] |
. WASHER
|
|
| 22. |
S5010513
|
[1] |
WASHER
|
|
| 23. |
41301-01690
|
[1] |
DAMPER
|
440-00011
|
| 23. |
440-00011
|
[1] |
DAMPER
|
|
| 24. |
S5010613
|
[2] |
WASHER
|
|
| 25. |
S5735261
|
[2] |
PIN
|
|
| 26. |
2197-1214A
|
[1] |
BRACKET;UNLOAD(L)
|
|
| 27. |
S0509053
|
[2] |
. BOLT
|
|
| 28. |
S5102503
|
[2] |
. WASHER
|
|
| 29. |
S5010513
|
[2] |
WASHER
|
|
| 3. |
S5102503
|
[4] |
. WASHER
|
|
| 30. |
2197-1273A
|
[1] |
COWL(L.H)
|
2197-1273B
|
| 30. |
2197-1273B
|
[1] |
COWL(L.H)
|
|
| 31. |
S0508653
|
[4] |
BOLT
|
|
| 31. |
S0509053
|
[4] |
. BOLT
|
|
| 32. |
S5102503
|
[4] |
. WASHER
|
|
| 33. |
S5010513
|
[4] |
WASHER
|
|
| 34. |
S0505053
|
[4] |
BOLT
|
|
| 35. |
S5102303
|
[4] |
. WASHER
|
|
| 36. |
12002-03860
|
[1] |
BOOTS
|
|
| 37. |
2133-1985
|
[1] |
LEVER;JOYSTICK
|
2133-1985A
|
| 37. |
2133-1985A
|
[1] |
LEVER;JOYSTICK
|
|
| 38. |
S4014833
|
[1] |
NUT M14X2.0
|
|
| 39. |
41301-01590
|
[1] |
GRIP
|
|
| 4. |
S5010513
|
[4] |
WASHER
|
|
| 40. |
40901-04000
|
[1] |
BOX CONSOLE ASS'Y(L.H)
|
2627-9003
|
| 40. |
2627-9003
|
[1] |
BOX CONSOLE ASS'Y(L.H)
|
|
| 41. |
11310-03870
|
[1] |
BOX CONSOLE(L)
|
|
| 42. |
11310-03880
|
[1] |
COVER 1
|
|
| 42. |
2627-9004
|
[1] |
COVER 1
|
|
| 43. |
11310-03890
|
[1] |
COVER 1
|
|
| 43. |
2627-9005
|
[1] |
COVER 2
|
|
| 44. |
S3691201
|
[6] |
SCREW;TAPPING
|
|
| 44. |
S3691203
|
[6] |
TAPPING;SCREW
|
|
| 45. |
41301-01740
|
[6] |
NUT;SPRING
|
|
| 46. |
S3691211
|
[2] |
SCREW;TAPPING
|
|
| 46. |
S3691213
|
[2] |
TAPPING;SCREW
|
|
| 47. |
S3402871
|
[4] |
SCREW M5X0.8X25
|
S3450871
|
| 47. |
S3450871
|
[4] |
SCREW M5X0.8X25
|
|
| 47. |
S3450873
|
[4] |
SCREW
|
|
| 48. |
S5100203
|
[4] |
WASHER
|
|
| 49. |
S5000213
|
[4] |
. WASHER
|
|
| 5. |
2197-1213
|
[1] |
STAND;LEVER(L)
|
2194-1213A
|
| 5. |
2197-1213A
|
[1] |
STAND;LEVER(L)
|
|
| 5. |
2197-2620
|
[1] |
STAND;LEVER(L)
|
|
| 50. |
41301-01960
|
[1] |
PLATE;PANEL
|
|
| 51. |
41301-01970
|
[2] |
GROMMET(2)
|
|
| 52. |
S3402871
|
[4] |
SCREW M5X0.8X25
|
S3450871
|
| 52. |
S3450871
|
[4] |
SCREW M5X0.8X25
|
|
| 52. |
S3450873
|
[4] |
SCREW
|
|
| 53. |
S5100103
|
[4] |
WASHER
|
|
| 54. |
S5000103
|
[4] |
WASHER;PLAIN M4
|
|
| 55. |
41301-01980
|
[1] |
GROMMET(1)
|
|
| 56. |
2161-2043
|
[1] |
STOPPER(L.H)
|
|
| 57. |
2120-2119A
|
[1] |
BOLT;PUSH
|
2120-2119B
|
| 57. |
2120-2119B
|
[1] |
BOLT;PUSH
|
|
| 58. |
S4012633
|
[2] |
NUT
|
|
| 6. |
2110-1184D38
|
[1] |
BUSH 23/20-20L
|
|
| 60. |
S4030833
|
[1] |
NUT
|
|
| 61. |
40501-01821
|
[1] |
JOYSTICK VALVE
|
|
| 61. |
2420-9616
|
[1] |
JOYSTICK(L.H)
|
|
| 62. |
2621-2752
|
[1] |
PLATE
|
|
| 7. |
2110-1184D39
|
[1] |
BUSH 23/20-25L
|
|
| 8. |
2123-2123
|
[1] |
SHAFT
|
|
| 9. |
S0553453
|
[1] |
BOLT M6X1.0X40
|
|
