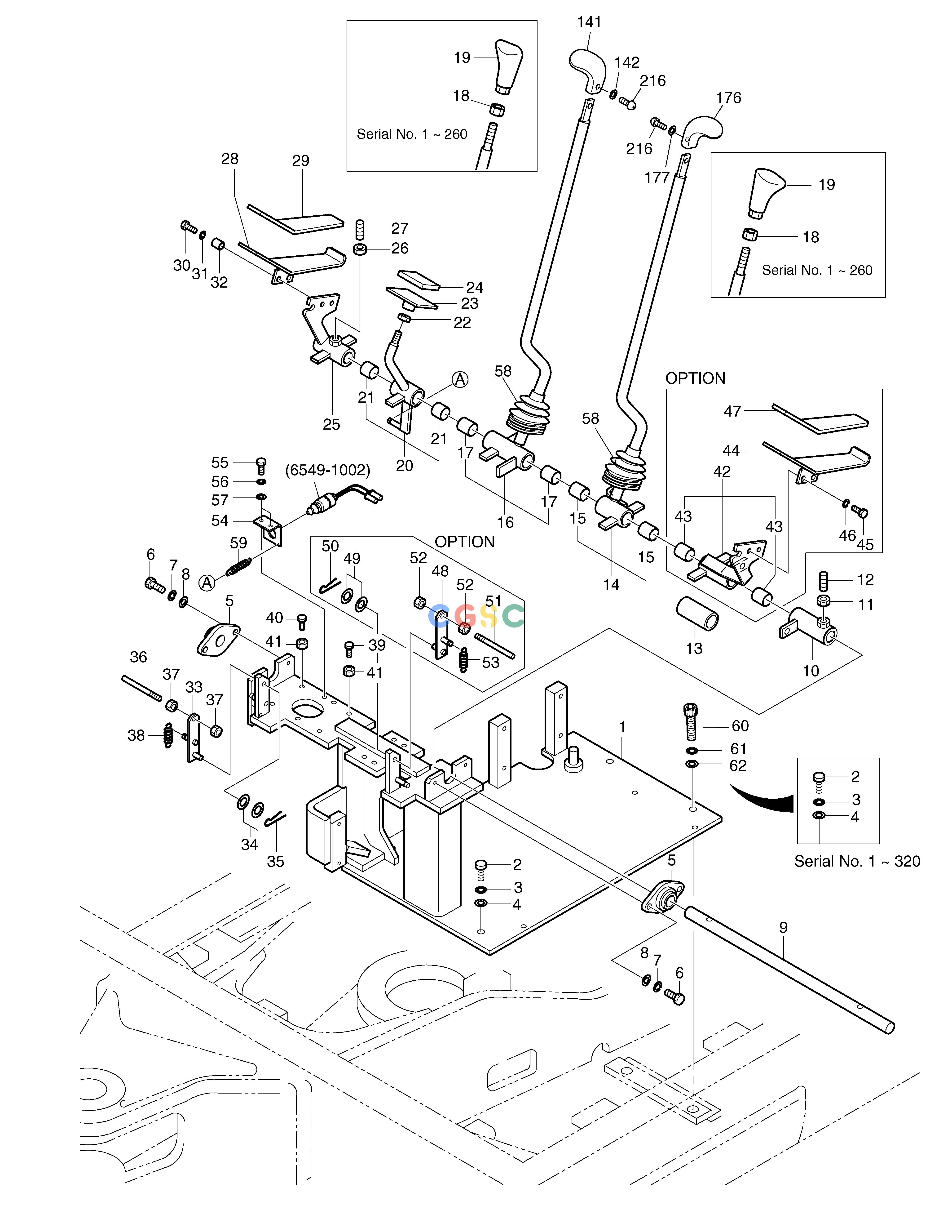

斗山零件查询CONTROL SYSTEM(3) SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
163 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2133-7043
|
[-] |
CONTROL LEVER
|
|
| 1. |
2420-1197
|
[1] |
VALVE MOUNT ASS'Y
|
2420-1197B
|
| 1. |
2420-1197B
|
[1] |
VALVE MOUNT ASS'Y
|
|
| 1. |
2197-2437A
|
[1] |
VALVE MOUNT ASS'Y
|
2197-2437B
|
| 1. |
2197-2437B
|
[1] |
VALVE MOUNT ASS'Y
|
|
| 10. |
2137-1174
|
[1] |
LINK
|
|
| 11. |
S4012633
|
[1] |
NUT
|
|
| 12. |
S3524901
|
[1] |
SCREW;SET
|
|
| 13. |
2114-1748
|
[1] |
COLLAR
|
|
| 14. |
2133-1979
|
[1] |
LEVER;DRIVE(L.H)
|
2133-1979A
|
| 14. |
2133-1979A
|
[1] |
LEVER;DRIVE(L.H)
|
|
| 14. |
2133-1979B
|
[1] |
LEVER;DRIVE(L.H)
|
|
| 141. |
2132-1134B
|
[1] |
GRIP,LEVER(R.H)
|
|
| 142. |
S5000113
|
[1] |
WASHER
|
|
| 15. |
2110-1184D38
|
[2] |
BUSH 23/20-20L
|
|
| 16. |
2133-1980
|
[1] |
LEVER;DRIVE(R.H)
|
2133-1980A
|
| 16. |
2133-1980A
|
[1] |
LEVER;DRIVE(R.H)
|
|
| 16. |
2133-1980B
|
[1] |
LEVER;DRIVE(R.H)
|
|
| 17. |
2110-1184D38
|
[2] |
BUSH 23/20-20L
|
|
| 176. |
2132-1133B
|
[1] |
GRIP,LEVER(L.H)
|
|
| 177. |
S5000113
|
[1] |
WASHER
|
|
| 18. |
S4032833
|
[2] |
NUT
|
|
| 19. |
41301-01610
|
[2] |
GRIP
|
|
| 2. |
S0512053
|
[4] |
BOLT
|
|
| 2. |
S0512053
|
[3] |
BOLT
|
|
| 20. |
2137-1175A
|
[1] |
LINK;OVER DRIVE
|
|
| 21. |
2110-1184D38
|
[2] |
BUSH 23/20-20L
|
|
| 216. |
S3450573
|
[2] |
SCREW
|
|
| 22. |
S4012633
|
[1] |
NUT
|
|
| 23. |
2134-1133
|
[1] |
PEDAL
|
|
| 24. |
41121-00022
|
[1] |
RUBBER
|
|
| 25. |
2137-1176
|
[1] |
LINK;SWING
|
|
| 26. |
S4012633
|
[1] |
NUT
|
|
| 27. |
S3524901
|
[1] |
SCREW;SET
|
|
| 28. |
2134-1131
|
[1] |
PEDAL
|
|
| 29. |
2166-1006
|
[1] |
NONSLIP
|
|
| 3. |
S5102603
|
[4] |
. WASHER
|
|
| 3. |
S5102603
|
[3] |
. WASHER
|
|
| 30. |
S0509053
|
[2] |
. BOLT
|
|
| 31. |
S5102503
|
[2] |
. WASHER
|
|
| 32. |
2114-1749
|
[2] |
COLLAR
|
|
| 33. |
2137-1177
|
[1] |
LINK
|
|
| 34. |
S5010513
|
[2] |
WASHER
|
|
| 35. |
S5735241
|
[1] |
PIN;SPLIT
|
|
| 36. |
2123-2124
|
[1] |
PIN
|
|
| 37. |
S4012533
|
[2] |
NUT
|
|
| 38. |
2129-1427
|
[1] |
SPRING;RETURN
|
|
| 39. |
S0508853
|
[8] |
. BOLT
|
|
| 39. |
S0509053
|
[8] |
. BOLT
|
|
| 4. |
S5010613
|
[4] |
WASHER
|
|
| 4. |
S5010613
|
[3] |
WASHER
|
|
| 40. |
S0509053
|
[1] |
. BOLT
|
|
| 41. |
S4012533
|
[9] |
NUT
|
|
| 42. |
2137-1178
|
[1] |
LINK
|
|
| 43. |
2110-1184D38
|
[2] |
BUSH 23/20-20L
|
|
| 44. |
2134-1131
|
[1] |
PEDAL
|
|
| 45. |
S0508653
|
[2] |
BOLT
|
|
| 45. |
S0509053
|
[2] |
. BOLT
|
|
| 46. |
S5102503
|
[2] |
. WASHER
|
|
| 47. |
2166-1006
|
[1] |
NONSLIP
|
|
| 48. |
2137-1177
|
[1] |
LINK
|
|
| 49. |
S5010513
|
[2] |
WASHER
|
|
| 5. |
30640-60006
|
[2] |
UNIT;PILLOW
|
|
| 50. |
S5735241
|
[1] |
PIN;SPLIT
|
|
| 51. |
2123-2124
|
[1] |
PIN
|
|
| 52. |
S4012533
|
[2] |
NUT
|
|
| 53. |
2129-1426
|
[1] |
SPRING
|
|
| 54. |
2159-1158
|
[1] |
PLATE
|
|
| 55. |
S0504853
|
[2] |
BOLT M6X1.0X20
|
|
| 56. |
S5102303
|
[2] |
. WASHER
|
|
| 57. |
S5010313
|
[2] |
WASHER
|
|
| 58. |
822-00080
|
[2] |
BOOTS
|
|
| 59. |
2129-1426
|
[2] |
SPRING
|
|
| 6. |
S0508853
|
[4] |
. BOLT
|
|
| 6. |
S0509053
|
[4] |
. BOLT
|
|
| 60. |
S2212061
|
[1] |
BOLT;SOCKET M10X1.5X25
|
|
| 61. |
S5110601
|
[1] |
WASHER;SPRING M10
|
|
| 62. |
S5010613
|
[1] |
WASHER
|
|
| 7. |
S5102503
|
[4] |
. WASHER
|
|
| 8. |
S5010513
|
[4] |
WASHER
|
|
| 9. |
2112-1220
|
[1] |
SHAFT
|
2112-1220A
|
| 9. |
2112-1220A
|
[1] |
SHAFT
|
|
