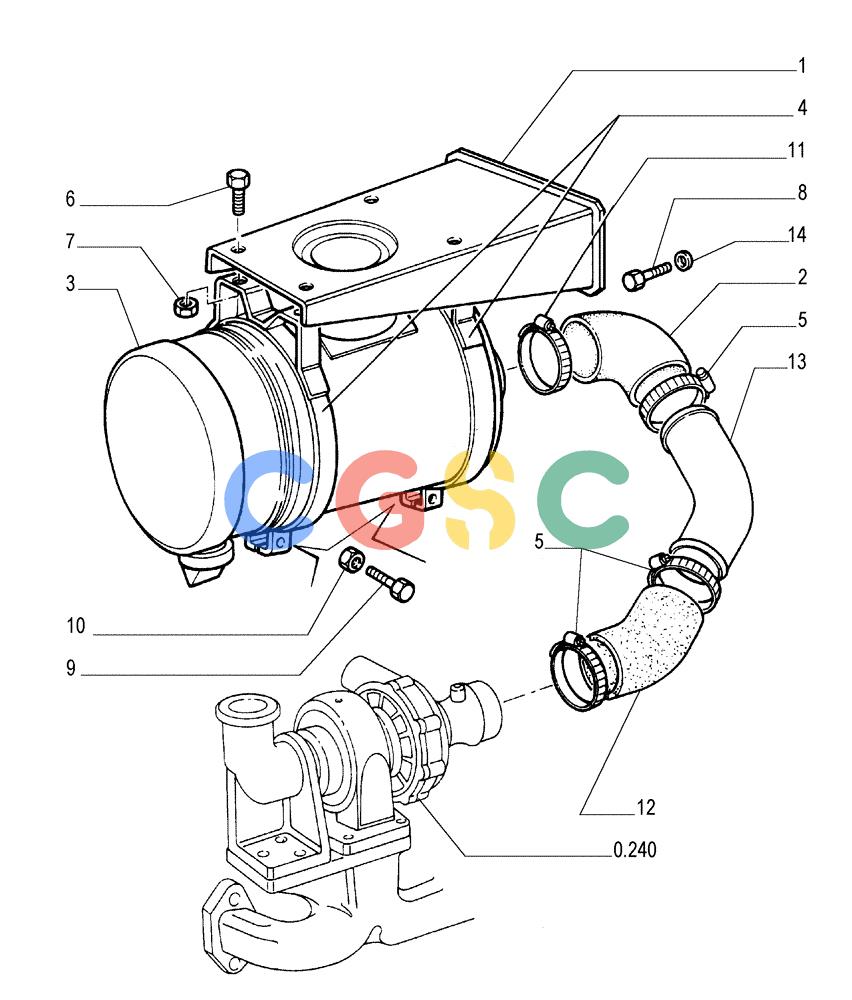

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.540[01]) - DRY AIR CLEANER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
177 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79106932 | [1] | SUPPORT | LEC |
| 2. | 76038330 | [1] | HOSE,99.00 mm ID, 127.00 mm ID x 139.00 mm | LEC Superseded by part number: 76045614 |
| 3. | 76029251 | [1] | AIR CLEANER | LEC- ASSY SEE TAV.3 |
| 4. | 79106929 | [2] | BRACKET | LEC |
| 5. | 79083852 | [3] | HOSE CLAMP,100mm - 125mm, Worm Gear | LEC |
| 6. | 11106034 | [4] | BOLT,Hex, M10 x 20, 10.9, Full Thd | BUR Superseded by part number: 11106031 |
| 7. | 11701721 | [4] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 8. | 16043631 | [4] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 9. | 16043931 | [2] | SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 16043934 |
| 10. | 16100821 | [2] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 11. | 79083854 | [1] | HOSE CLAMP,120mm - 145mm, Worm Gear | LEC Superseded by part number: 71421022 |
| 12. | 76038316 | [1] | HOSE,99.00 mm ID x 150.00 mm | LEC Superseded by part number: 76045614 |
| 13. | 76038320 | [1] | RIGID TUBE,96 mm ID, 100 mm OD, 258, 177 mm Length | LEC Superseded by part number: 76045614 |
| 14. | 12645031 | [4] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
