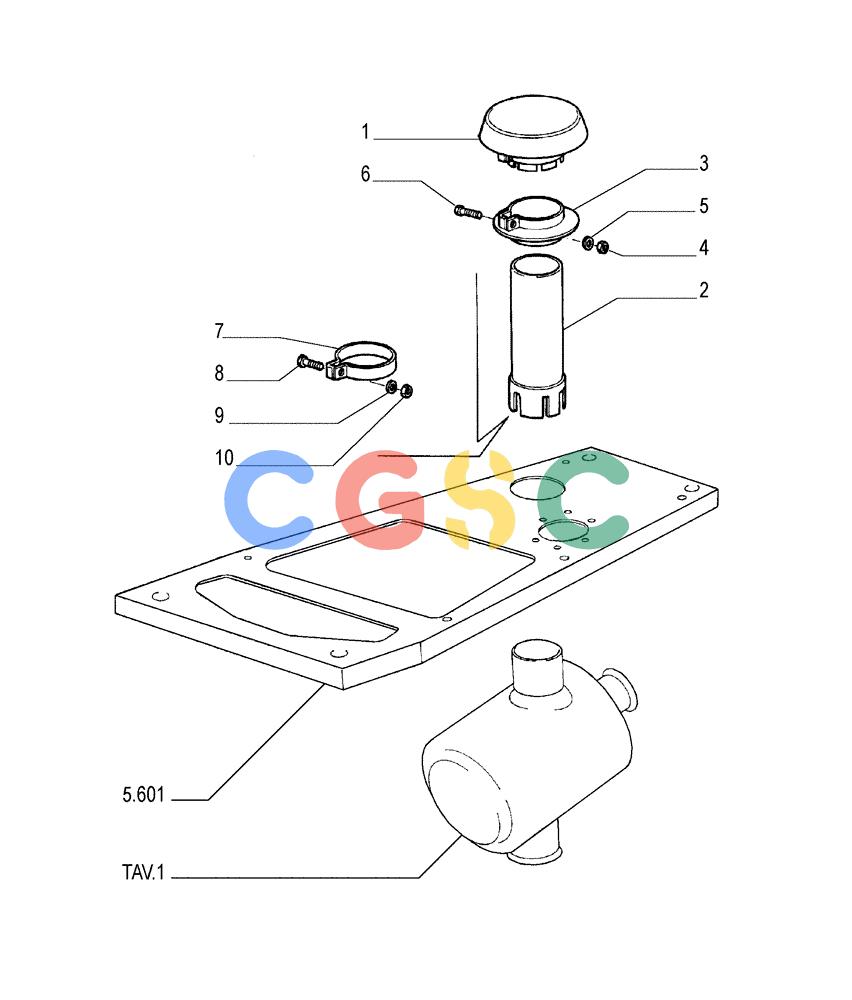

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.540[02]) - DRY AIR CLEANER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
786 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 71420328 | [1] | AIR PRE-CLEANER ASSY | TOR |
| 2. | 76038314 | [1] | RIGID TUBE,127 mm ID, 130 mm OD, 380 mm Length | LEC |
| 3. | 76038274 | [1] | COLLAR | LEC |
| 4. | 11701721 | [1] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 5. | 14496631 | [2] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 6. | 11106831 | [1] | SCREW,Hex, M10 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11106821 |
| 7. | 76033202 | [1] | HOSE CLIP | LEC |
| 8. | 16043831 | [1] | SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd | BHB Superseded by part number: |
| 9. | 14496531 | [1] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 10. | 16100821 | [1] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
