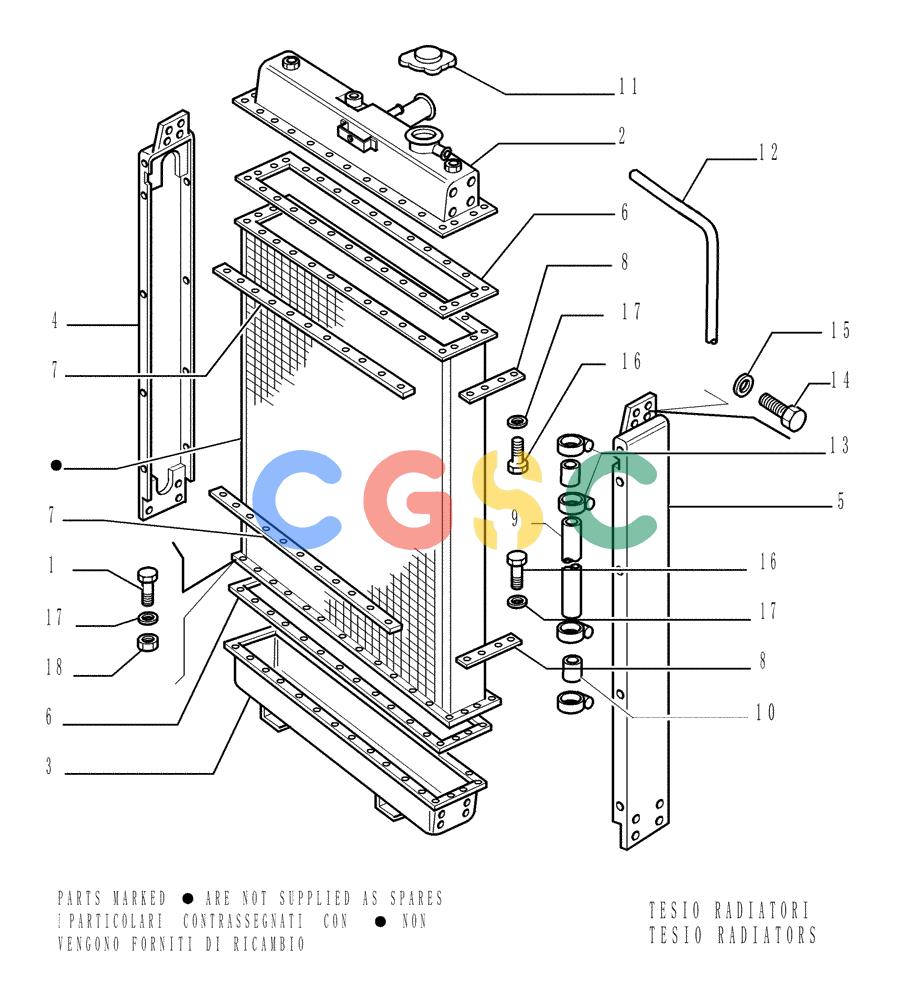

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.550[04]) - WATER RADIATOR - COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
944 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 16043621 | [72] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | CAS Superseded by part number: |
| 2. | 76027854 | [1] | PAN | LEC- UPPER |
| 3. | 76027855 | [1] | PAN | LEC- LOWER |
| 4. | 76027856 | [1] | SIDE PANEL | LEC- RIGHT |
| 5. | 76027857 | [1] | SIDE PANEL | LEC- LEFT |
| 6. | 76027858 | [2] | SEAL | LEC |
| 7. | 76027859 | [4] | STRAP | LEC |
| 8. | 76027860 | [2] | STRAP | LEC |
| 9. | 76027861 | [2] | RIGID TUBE | LEC |
| 10. | 76027862 | [4] | SLEEVE | LEC |
| 11. | 76027863 | [1] | PLUG | LEC |
| 12. | 76027864 | [2] | TUBE | LEC |
| 13. | 79083842 | [8] | HOSE CLAMP,M16-27 | LEC Superseded by part number: 18088392 |
| 14. | 11106224 | [16] | SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd | MOD10X1,5X25 Superseded by part number: 11106221 |
| 15. | 14496631 | [16] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 16. | 16043821 | [16] | SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd | BAS Superseded by part number: 16605724 |
| 17. | 14496531 | [88] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 18. | 16100811 | [72] | NUT,Hex, M8, 6.80mm, Cl 8, ZND | TTF Superseded by part number: 43362 |
